Mon, 03/25/2024 - 19:50
Forums:
Hello, please we would like to know which are the exact FixShape flags used in CAD Assistant.
https://dev.opencascade.org/doc/occt-7.6.0/overview/html/occt_user_guide...
Turns out we are trying to match the same import behavior and we expect to be able to know this information.
Please, let us know the exact flags, thank you very much.
Some STEP models are impossible to import when playing with this settings blindly, so it is crucial for us.
Miquel
Tue, 03/26/2024 - 09:02
Why do you think there are any changes in these flags from defaults? Do you see some difference from loading the same STEP file in Draw Harness?
Wed, 03/27/2024 - 11:31
I see some difference from loading the same STEP with our app.
So can you confirm if the flags in Draw Harnes are the same in CAD Assistant? (it is the attatched file from your compilation I guess)
Wed, 03/27/2024 - 13:41

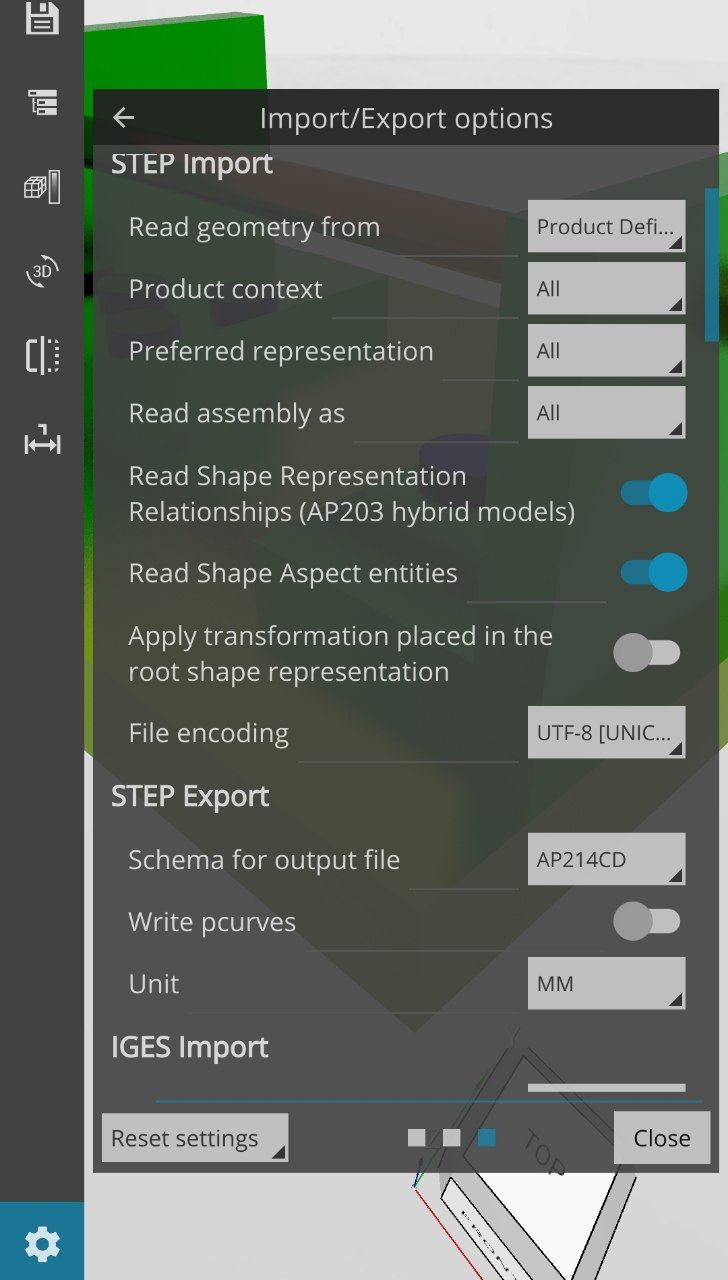

The Import/Export options, used for STEP translator, could be found in application settings. I don't think that there is something else to look into.
Consider sharing a sample model to figure out what could be the difference, or at least what kind of differences bothers you - maybe it is related to some bugs, compilers or have another kind of origin.
