AIS_Point Class Reference

Constructs point datums to be used in construction of composite shapes. The datum is displayed as the plus marker +. More...

#include <AIS_Point.hxx>

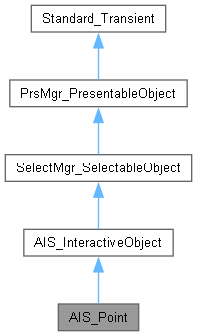

Inheritance diagram for AIS_Point:

Public Member Functions
	AIS_Point (const occ::handle< Geom_Point > &aComponent)
	Initializes the point aComponent from which the point datum will be built.
int	Signature () const override
	Returns index 1, the default index for a point.
AIS_KindOfInteractive	Type () const override
	Indicates that a point is a datum.
occ::handle< Geom_Point >	Component ()
	Returns the component specified in SetComponent.
void	SetComponent (const occ::handle< Geom_Point > &aComponent)
	Constructs an instance of the point aComponent.
bool	AcceptDisplayMode (const int aMode) const override
	Returns true if the display mode selected is valid for point datums.
void	SetColor (const Quantity_Color &theColor) override
	Allows you to provide settings for the Color.
void	UnsetColor () override
	Allows you to remove color settings.
void	SetMarker (const Aspect_TypeOfMarker aType)
	Allows you to provide settings for a marker. These include.
void	UnsetMarker ()
	Removes the marker settings.
bool	HasMarker () const
	Returns true if the point datum has a marker.
TopoDS_Vertex	Vertex () const
	Converts a point into a vertex.
Public Member Functions inherited from AIS_InteractiveObject
void	Redisplay (const bool AllModes=false)
	Updates the active presentation; if <AllModes> = true all the presentations inside are recomputed. IMPORTANT: It is preferable to call Redisplay method of corresponding AIS_InteractiveContext instance for cases when it is accessible. This method just redirects call to myCTXPtr, so this class field must be up to date for proper result.
bool	HasInteractiveContext () const
	Indicates whether the Interactive Object has a pointer to an interactive context.
AIS_InteractiveContext *	InteractiveContext () const
	Returns the context pointer to the interactive context.
virtual void	SetContext (const occ::handle< AIS_InteractiveContext > &aCtx)
	Sets the interactive context aCtx and provides a link to the default drawing tool or "Drawer" if there is none.
bool	HasOwner () const
	Returns true if the object has an owner attributed to it. The owner can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of, and takes the form of a transient.
const occ::handle< Standard_Transient > &	GetOwner () const
	Returns the owner of the Interactive Object. The owner can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of, and takes the form of a transient. There are two types of owners:
void	SetOwner (const occ::handle< Standard_Transient > &theApplicativeEntity)
	Allows you to attribute the owner theApplicativeEntity to an Interactive Object. This can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of. The owner takes the form of a transient.
void	ClearOwner ()
	Each Interactive Object has methods which allow us to attribute an Owner to it in the form of a Transient. This method removes the owner from the graphic entity.
virtual bool	ProcessDragging (const occ::handle< AIS_InteractiveContext > &theCtx, const occ::handle< V3d_View > &theView, const occ::handle< SelectMgr_EntityOwner > &theOwner, const NCollection_Vec2< int > &theDragFrom, const NCollection_Vec2< int > &theDragTo, const AIS_DragAction theAction)
	Drag object in the viewer.
occ::handle< AIS_InteractiveContext >	GetContext () const
	Returns the context pointer to the interactive context.
bool	HasPresentation () const
	Returns TRUE when this object has a presentation in the current DisplayMode()
occ::handle< Prs3d_Presentation >	Presentation () const
	Returns the current presentation of this object according to the current DisplayMode()
void	SetAspect (const occ::handle< Prs3d_BasicAspect > &anAspect)
	Sets the graphic basic aspect to the current presentation.
void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const override
	Dumps the content of me into the stream.
Public Member Functions inherited from SelectMgr_SelectableObject
	~SelectMgr_SelectableObject () override
	Clears all selections of the object.
virtual bool	AcceptShapeDecomposition () const
	Informs the graphic context that the interactive Object may be decomposed into sub-shapes for dynamic selection. The most used Interactive Object is AIS_Shape.
void	RecomputePrimitives ()
	Re-computes the sensitive primitives for all modes. IMPORTANT: Do not use this method to update selection primitives except implementing custom selection manager! This method does not take into account necessary BVH updates, but may invalidate the pointers it refers to. TO UPDATE SELECTION properly from outside classes, use method UpdateSelection.
void	RecomputePrimitives (const int theMode)
	Re-computes the sensitive primitives which correspond to the <theMode>th selection mode. IMPORTANT: Do not use this method to update selection primitives except implementing custom selection manager! selection manager! This method does not take into account necessary BVH updates, but may invalidate the pointers it refers to. TO UPDATE SELECTION properly from outside classes, use method UpdateSelection.
void	AddSelection (const occ::handle< SelectMgr_Selection > &aSelection, const int aMode)
	Adds the selection aSelection with the selection mode index aMode to this framework.
void	ClearSelections (const bool update=false)
	Empties all the selections in the SelectableObject <update> parameter defines whether all object's selections should be flagged for further update or not. This improved method can be used to recompute an object's selection (without redisplaying the object completely) when some selection mode is activated not for the first time.
const occ::handle< SelectMgr_Selection > &	Selection (const int theMode) const
	Returns the selection having specified selection mode or NULL.
bool	HasSelection (const int theMode) const
	Returns true if a selection corresponding to the selection mode theMode was computed for this object.
const NCollection_Sequence< occ::handle< SelectMgr_Selection > > &	Selections () const
	Return the sequence of selections.
void	ResetTransformation () override
	resets local transformation to identity.
void	UpdateTransformation () override
	Recomputes the location of the selection aSelection.
virtual void	UpdateTransformations (const occ::handle< SelectMgr_Selection > &aSelection)
	Updates locations in all sensitive entities from <aSelection> and in corresponding entity owners.
virtual void	HilightSelected (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const NCollection_Sequence< occ::handle< SelectMgr_EntityOwner > > &theSeq)
	Method which draws selected owners ( for fast presentation draw )
virtual void	ClearSelected ()
	Method which clear all selected owners belonging to this selectable object ( for fast presentation draw )
virtual void	ClearDynamicHighlight (const occ::handle< PrsMgr_PresentationManager > &theMgr)
	Method that needs to be implemented when the object manages selection and dynamic highlighting on its own. Clears or invalidates dynamic highlight presentation. By default it clears immediate draw of given presentation manager.
virtual void	HilightOwnerWithColor (const occ::handle< PrsMgr_PresentationManager > &thePM, const occ::handle< Prs3d_Drawer > &theStyle, const occ::handle< SelectMgr_EntityOwner > &theOwner)
	Method which hilight an owner belonging to this selectable object (for fast presentation draw)
virtual bool	IsAutoHilight () const
	If returns True, the old mechanism for highlighting selected objects is used (HilightSelected Method may be empty). If returns False, the HilightSelected method will be fully responsible for highlighting selected entity owners belonging to this selectable object.
virtual void	SetAutoHilight (const bool theAutoHilight)
	Set AutoHilight property to true or false.
occ::handle< Prs3d_Presentation >	GetHilightPresentation (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr)
	Creates or returns existing presentation for highlighting detected object.
occ::handle< Prs3d_Presentation >	GetSelectPresentation (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr)
	Creates or returns existing presentation for highlighting selected object.
virtual void	ErasePresentations (bool theToRemove)
	Removes presentations returned by GetHilightPresentation() and GetSelectPresentation().
void	SetZLayer (const Graphic3d_ZLayerId theLayerId) override
	Set Z layer ID and update all presentations of the selectable object. The layers mechanism allows drawing objects in higher layers in overlay of objects in lower layers.
void	UpdateSelection (const int theMode=-1)
	Sets update status FULL to selections of the object. Must be used as the only method of UpdateSelection from outer classes to prevent BVH structures from being outdated.
void	SetAssemblyOwner (const occ::handle< SelectMgr_EntityOwner > &theOwner, const int theMode=-1)
	Sets common entity owner for assembly sensitive object entities.
Bnd_Box	BndBoxOfSelected (const occ::handle< NCollection_Shared< NCollection_IndexedMap< occ::handle< SelectMgr_EntityOwner > > > > &theOwners)
	Returns a bounding box of sensitive entities with the owners given if they are a part of activated selection.
int	GlobalSelectionMode () const
	Returns the mode for selection of object as a whole; 0 by default.
virtual occ::handle< SelectMgr_EntityOwner >	GlobalSelOwner () const
	Returns the owner of mode for selection of object as a whole.
virtual const occ::handle< SelectMgr_EntityOwner > &	GetAssemblyOwner () const
	Returns common entity owner if the object is an assembly.
void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const override
	Dumps the content of me into the stream.
Public Member Functions inherited from PrsMgr_PresentableObject
NCollection_Sequence< occ::handle< PrsMgr_Presentation > > &	Presentations ()
	Return presentations.
Graphic3d_ZLayerId	ZLayer () const
	Get ID of Z layer for main presentation.
bool	IsMutable () const
	Returns true if object has mutable nature (content or location are be changed regularly). Mutable object will be managed in different way than static onces (another optimizations).
virtual void	SetMutable (const bool theIsMutable)
	Sets if the object has mutable nature (content or location will be changed regularly). This method should be called before object displaying to take effect.
const occ::handle< Graphic3d_ViewAffinity > &	ViewAffinity () const
	Return view affinity mask.
bool	HasDisplayMode () const
	Returns true if the Interactive Object has display mode setting overriding global setting (within Interactive Context).
int	DisplayMode () const
	Returns the display mode setting of the Interactive Object. The range of supported display mode indexes should be specified within object definition and filtered by AccepDisplayMode().
void	SetDisplayMode (const int theMode)
	Sets the display mode for the interactive object. An object can have its own temporary display mode, which is different from that proposed by the interactive context.
void	UnsetDisplayMode ()
	Removes display mode settings from the interactive object.
bool	HasHilightMode () const
	Returns true if the Interactive Object is in highlight mode.
int	HilightMode () const
	Returns highlight display mode. This is obsolete method for backward compatibility - use HilightAttributes() and DynamicHilightAttributes() instead.
void	SetHilightMode (const int theMode)
	Sets highlight display mode. This is obsolete method for backward compatibility - use HilightAttributes() and DynamicHilightAttributes() instead.
void	UnsetHilightMode ()
	Unsets highlight display mode.
virtual int	DefaultDisplayMode () const
	Returns the default display mode.
bool	ToBeUpdated (bool theToIncludeHidden=false) const
	Returns TRUE if any active presentation has invalidation flag.
void	SetToUpdate (int theMode)
	Flags presentation to be updated; UpdatePresentations() will recompute these presentations.
void	SetToUpdate ()
	flags all the Presentations to be Updated.
bool	IsInfinite () const
	Returns true if the interactive object is infinite; FALSE by default. This flag affects various operations operating on bounding box of graphic presentations of this object. For instance, infinite objects are not taken in account for View FitAll. This does not necessarily means that object is actually infinite, auxiliary objects might be also marked with this flag to achieve desired behavior.
void	SetInfiniteState (const bool theFlag=true)
	Sets if object should be considered as infinite.
PrsMgr_TypeOfPresentation3d	TypeOfPresentation3d () const
	Returns information on whether the object accepts display in HLR mode or not.
void	SetTypeOfPresentation (const PrsMgr_TypeOfPresentation3d theType)
	Set type of presentation.
PrsMgr_DisplayStatus	DisplayStatus () const
	Return presentation display status; PrsMgr_DisplayStatus_None by default.
const occ::handle< Prs3d_Drawer > &	Attributes () const
	Initializes the drawing tool theDrawer.
virtual void	SetAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the drawing tool theDrawer.
const occ::handle< Prs3d_Drawer > &	HilightAttributes () const
	Returns the hilight attributes settings. When not NULL, overrides both Prs3d_TypeOfHighlight_LocalSelected and Prs3d_TypeOfHighlight_Selected defined within AIS_InteractiveContext::HighlightStyle().
virtual void	SetHilightAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the hilight drawing tool theDrawer.
const occ::handle< Prs3d_Drawer > &	DynamicHilightAttributes () const
	Returns the hilight attributes settings. When not NULL, overrides both Prs3d_TypeOfHighlight_LocalDynamic and Prs3d_TypeOfHighlight_Dynamic defined within AIS_InteractiveContext::HighlightStyle().
virtual void	SetDynamicHilightAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the dynamic hilight drawing tool.
virtual void	UnsetHilightAttributes ()
	Clears settings provided by the hilight drawing tool theDrawer.
void	SynchronizeAspects ()
	Synchronize presentation aspects after their modification.
const occ::handle< Graphic3d_TransformPers > &	TransformPersistence () const
	Sets up Transform Persistence defining a special Local Coordinate system where this object should be located. Note that management of Transform Persistence object is more expensive than of the normal one, because it requires its position being recomputed basing on camera position within each draw call / traverse.
virtual void	SetTransformPersistence (const occ::handle< Graphic3d_TransformPers > &theTrsfPers)
	Sets up Transform Persistence defining a special Local Coordinate system where this object should be located. Note that management of Transform Persistence object is more expensive than of the normal one, because it requires its position being recomputed basing on camera position within each draw call / traverse.
const occ::handle< TopLoc_Datum3D > &	LocalTransformationGeom () const
	Return the local transformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
void	SetLocalTransformation (const gp_Trsf &theTrsf)
	Sets local transformation to theTransformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
void	SetLocalTransformation (const occ::handle< TopLoc_Datum3D > &theTrsf)
	Sets local transformation to theTransformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
bool	HasTransformation () const
	Returns true if object has a transformation that is different from the identity.
const occ::handle< TopLoc_Datum3D > &	TransformationGeom () const
	Return the transformation taking into account transformation of parent object(s). Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
const gp_Trsf &	LocalTransformation () const
	Return the local transformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
const gp_Trsf &	Transformation () const
	Return the transformation taking into account transformation of parent object(s). Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.
const gp_GTrsf &	InversedTransformation () const
	Return inversed transformation.
const occ::handle< TopLoc_Datum3D > &	CombinedParentTransformation () const
	Return combined parent transformation.
virtual void	RecomputeTransformation (const occ::handle< Graphic3d_Camera > &theProjector)
	Calculates object presentation for specific camera position. Each of the views in the viewer and every modification such as rotation, for example, entails recalculation.
const occ::handle< Graphic3d_SequenceOfHClipPlane > &	ClipPlanes () const
	Set clip planes for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.
virtual void	SetClipPlanes (const occ::handle< Graphic3d_SequenceOfHClipPlane > &thePlanes)
	Set clip planes for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.
virtual void	AddClipPlane (const occ::handle< Graphic3d_ClipPlane > &thePlane)
	Adds clip plane for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.
virtual void	RemoveClipPlane (const occ::handle< Graphic3d_ClipPlane > &thePlane)
	Removes previously added clip plane.
PrsMgr_PresentableObject *	Parent () const
	Returns children of the current object.
const NCollection_List< occ::handle< PrsMgr_PresentableObject > > &	Children () const
	Returns children of the current object.
virtual void	AddChild (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Makes theObject child of current object in scene hierarchy.
void	AddChildWithCurrentTransformation (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Makes theObject child of current object in scene hierarchy with keeping the current global transformation So the object keeps the same position/orientation in the global CS.
virtual void	RemoveChild (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Removes theObject from children of current object in scene hierarchy.
void	RemoveChildWithRestoreTransformation (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Removes theObject from children of current object in scene hierarchy with keeping the current global transformation. So the object keeps the same position/orientation in the global CS.
bool	HasOwnPresentations () const
	Returns true if object should have own presentations.
virtual void	BoundingBox (Bnd_Box &theBndBox)
	Returns bounding box of object correspondingly to its current display mode. This method requires presentation to be already computed, since it relies on bounding box of presentation structures, which are supposed to be same/close amongst different display modes of this object.
void	SetIsoOnTriangulation (const bool theIsEnabled)
	Returns the current facing model which is in effect.
Aspect_TypeOfFacingModel	CurrentFacingModel () const
	Returns the current facing model which is in effect.
void	SetCurrentFacingModel (const Aspect_TypeOfFacingModel theModel=Aspect_TOFM_BOTH_SIDE)
	change the current facing model apply on polygons for SetColor(), SetTransparency(), SetMaterial() methods default facing model is Aspect_TOFM_TWO_SIDE. This mean that attributes is applying both on the front and back face.
bool	HasColor () const
	Returns true if the Interactive Object has color.
virtual void	Color (Quantity_Color &theColor) const
	Returns the color setting of the Interactive Object.
bool	HasWidth () const
	Returns true if the Interactive Object has width.
double	Width () const
	Returns the width setting of the Interactive Object.
virtual void	SetWidth (const double theWidth)
	Allows you to provide the setting aValue for width. Only the Interactive Object knows which Drawer attribute is affected by the width setting.
virtual void	UnsetWidth ()
	Reset width to default value.
bool	HasMaterial () const
	Returns true if the Interactive Object has a setting for material.
virtual Graphic3d_NameOfMaterial	Material () const
	Returns the current material setting as enumeration value.
virtual void	SetMaterial (const Graphic3d_MaterialAspect &aName)
	Sets the material aMat defining this display attribute for the interactive object. Material aspect determines shading aspect, color and transparency of visible entities.
virtual void	UnsetMaterial ()
	Removes the setting for material.
bool	IsTransparent () const
	Returns true if there is a transparency setting.
virtual double	Transparency () const
	Returns the transparency setting. This will be between 0.0 and 1.0. At 0.0 an object will be totally opaque, and at 1.0, fully transparent.
virtual void	SetTransparency (const double aValue=0.6)
	Attributes a setting aValue for transparency. The transparency value should be between 0.0 and 1.0. At 0.0 an object will be totally opaque, and at 1.0, fully transparent. Warning At a value of 1.0, there may be nothing visible.
virtual void	UnsetTransparency ()
	Removes the transparency setting. The object is opaque by default.
virtual bool	HasPolygonOffsets () const
	Returns true if <myDrawer> has non-null shading aspect.
virtual void	PolygonOffsets (int &aMode, float &aFactor, float &aUnits) const
	Retrieves current polygon offsets settings from <myDrawer>.
virtual void	SetPolygonOffsets (const int aMode, const float aFactor=1.0, const float aUnits=0.0)
	Sets up polygon offsets for this object.
virtual void	UnsetAttributes ()
	Clears settings provided by the drawing tool aDrawer.
void	ToBeUpdated (NCollection_List< int > &ListOfMode) const
	pointer to the parent object
bool	ToPropagateVisualState () const
	Get value of the flag "propagate visual state" It means that the display/erase/color visual state is propagated automatically to all children; by default, the flag is true.
void	SetPropagateVisualState (const bool theFlag)
	Change the value of the flag "propagate visual state".
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()=default
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.
bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
int	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.
int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.
virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
void	Compute (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const occ::handle< Prs3d_Presentation > &thePrs, const int theMode) override
	Calculates the 3D view presentation for specified display mode. This is a key interface for implementing Presentable Object interface.
Protected Member Functions inherited from AIS_InteractiveObject
	AIS_InteractiveObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	The TypeOfPresention3d means that the interactive object may have a presentation dependent on the view of Display.
void	SetDisplayStatus (PrsMgr_DisplayStatus theStatus)
	Set presentation display status.
Protected Member Functions inherited from SelectMgr_SelectableObject
	SelectMgr_SelectableObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	Protected empty constructor.
void	setGlobalSelMode (const int theMode)
	Override global selection mode.
void	UpdateClipping () override
	Update clipping planes state.
virtual void	updateSelection (const int theMode)
	Sets update status FULL to selections of the object. Must be used as the only method of UpdateSelection from outer classes to prevent BVH structures from being outdated.
Protected Member Functions inherited from PrsMgr_PresentableObject
called instead void	Update (bool theToIncludeHidden=false)
	Recomputes all presentations of the object.
This method is deprecated	SetToUpdate ()+UpdatePresentations() should be called instead") 1 void Update(int theMode
	Recomputes the presentation in the given mode.
	PrsMgr_PresentableObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	Destructor.
	~PrsMgr_PresentableObject () override
	Destructor.
virtual void	Fill (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const occ::handle< PrsMgr_Presentation > &thePrs, const int theMode)
	Fills the given 3D view presentation for specified display mode using Compute() method. In addition, configures other properties of presentation (transformation, clipping planes).
virtual void	computeHLR (const occ::handle< Graphic3d_Camera > &theProjector, const occ::handle< TopLoc_Datum3D > &theTrsf, const occ::handle< Prs3d_Presentation > &thePrs)
	Calculates hidden line removal presentation for specific camera position. Each of the views in the viewer and every modification such as rotation, for example, entails recalculation. Default implementation throws Standard_NotImplemented exception Warning! The transformation must be applied to the object before computation.
bool	UpdatePresentations (bool theToIncludeHidden=false)
	Recomputes invalidated presentations of the object.
virtual void	SetCombinedParentTransform (const occ::handle< TopLoc_Datum3D > &theTrsf)
	Sets myCombinedParentTransform to theTransformation. Thus object receives transformation from parent node and able to derive its own.
virtual void	setLocalTransformation (const occ::handle< TopLoc_Datum3D > &theTransformation)
	Sets local transformation to theTransformation.
void	recomputeComputed () const
	Recompute computed (HLR) presentations (when view is in computed mode).
void	replaceAspects (const NCollection_DataMap< occ::handle< Graphic3d_Aspects >, occ::handle< Graphic3d_Aspects > > &theMap)
	Replace aspects of existing (computed) presentation groups, so that the new aspects can be applied without recomputing presentation. It is NOT recommended approach, because user has to fill such map and then search for each occurrence in computed groups. The recommended approach is computing presentation with necessary customized aspects, and then modify them directly followed by SynchronizeAspects() call.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.
Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.
Static Protected Member Functions inherited from PrsMgr_PresentableObject
static const gp_Trsf &	getIdentityTrsf ()
	Return the identity transformation.
Protected Attributes inherited from AIS_InteractiveObject
AIS_InteractiveContext *	myCTXPtr
	pointer to Interactive Context, where object is currently displayed;
occ::handle< Standard_Transient >	myOwner
	application-specific owner object
Protected Attributes inherited from SelectMgr_SelectableObject
NCollection_Sequence< occ::handle< SelectMgr_Selection > >	myselections
	list of selections
occ::handle< Prs3d_Presentation >	mySelectionPrs
	optional presentation for highlighting selected object
occ::handle< Prs3d_Presentation >	myHilightPrs
	optional presentation for highlighting detected object
int	myGlobalSelMode
	global selection mode
bool	myAutoHilight
	auto-highlighting flag defining
Protected Attributes inherited from PrsMgr_PresentableObject
This method is deprecated bool	theToClearOther
	pointer to the parent object
PrsMgr_PresentableObject *	myParent
	pointer to the parent object
NCollection_Sequence< occ::handle< PrsMgr_Presentation > >	myPresentations
	list of presentations
occ::handle< Graphic3d_ViewAffinity >	myViewAffinity
	view affinity mask
occ::handle< Graphic3d_SequenceOfHClipPlane >	myClipPlanes
	sequence of object-specific clipping planes
occ::handle< Prs3d_Drawer >	myDrawer
	main presentation attributes
occ::handle< Prs3d_Drawer >	myHilightDrawer
	(optional) custom presentation attributes for highlighting selected object
occ::handle< Prs3d_Drawer >	myDynHilightDrawer
	(optional) custom presentation attributes for highlighting detected object
occ::handle< Graphic3d_TransformPers >	myTransformPersistence
	transformation persistence
occ::handle< TopLoc_Datum3D >	myLocalTransformation
	local transformation relative to parent object
occ::handle< TopLoc_Datum3D >	myTransformation
	absolute transformation of this object (combined parents + local transformations)
occ::handle< TopLoc_Datum3D >	myCombinedParentTransform
	transformation of parent object (combined for all parents)
NCollection_List< occ::handle< PrsMgr_PresentableObject > >	myChildren
	list of children
gp_GTrsf	myInvTransformation
	inversion of absolute transformation (combined parents + local transformations)
PrsMgr_TypeOfPresentation3d	myTypeOfPresentation3d
	presentation type
PrsMgr_DisplayStatus	myDisplayStatus
	presentation display status
Aspect_TypeOfFacingModel	myCurrentFacingModel
	current facing model
float	myOwnWidth
	custom width value
bool	hasOwnColor
	own color flag
bool	hasOwnMaterial
	own material flag
bool	myInfiniteState
	infinite flag
bool	myIsMutable
	mutable flag
bool	myHasOwnPresentations
	flag indicating if object should have own presentations
bool	myToPropagateVisualState
	flag indicating if visual state (display/erase/color) should be propagated to all children

Detailed Description

Constructs point datums to be used in construction of composite shapes. The datum is displayed as the plus marker +.

Constructor & Destructor Documentation

AIS_Point()

AIS_Point::AIS_Point

(

const occ::handle< Geom_Point > &

aComponent

)

Initializes the point aComponent from which the point datum will be built.

Member Function Documentation

AcceptDisplayMode()

bool AIS_Point::AcceptDisplayMode ( const int aMode ) const

overridevirtual

Returns true if the display mode selected is valid for point datums.

Reimplemented from PrsMgr_PresentableObject.

Component()

occ::handle< Geom_Point > AIS_Point::Component

(

)

Returns the component specified in SetComponent.

Compute()

void AIS_Point::Compute ( const occ::handle< PrsMgr_PresentationManager > & thePrsMgr, const occ::handle< Prs3d_Presentation > & thePrs, const int theMode )

overrideprotectedvirtual

Calculates the 3D view presentation for specified display mode. This is a key interface for implementing Presentable Object interface.

Parameters

thePrsMgr	presentation manager where presentation has been created
thePrs	presentation to fill
theMode	display mode to compute; can be any number accepted by AcceptDisplayMode() method

See also

AcceptDisplayMode()

Implements PrsMgr_PresentableObject.

HasMarker()

bool AIS_Point::HasMarker ( ) const

inline

Returns true if the point datum has a marker.

SetColor()

void AIS_Point::SetColor ( const Quantity_Color & theColor )

overridevirtual

Allows you to provide settings for the Color.

Reimplemented from PrsMgr_PresentableObject.

SetComponent()

void AIS_Point::SetComponent

(

const occ::handle< Geom_Point > &

aComponent

)

Constructs an instance of the point aComponent.

SetMarker()

void AIS_Point::SetMarker

(

const Aspect_TypeOfMarker

aType

)

Allows you to provide settings for a marker. These include.

• type of marker,
• marker color,
• scale factor.

Signature()

int AIS_Point::Signature ( ) const

inlineoverridevirtual

Returns index 1, the default index for a point.

Reimplemented from AIS_InteractiveObject.

Type()

AIS_KindOfInteractive AIS_Point::Type ( ) const

inlineoverridevirtual

Indicates that a point is a datum.

Reimplemented from AIS_InteractiveObject.

UnsetColor()

void AIS_Point::UnsetColor ( )

overridevirtual

Allows you to remove color settings.

Reimplemented from PrsMgr_PresentableObject.

UnsetMarker()

void AIS_Point::UnsetMarker

(

)

Removes the marker settings.

Vertex()

TopoDS_Vertex AIS_Point::Vertex

(

)

const

Converts a point into a vertex.

---

The documentation for this class was generated from the following file:

• AIS_Point.hxx
