BRepAlgoAPI_Section Class Reference

The algorithm is to build a Section operation between arguments and tools. The result of Section operation consists of vertices and edges. The result of Section operation contains: More...

#include <BRepAlgoAPI_Section.hxx>

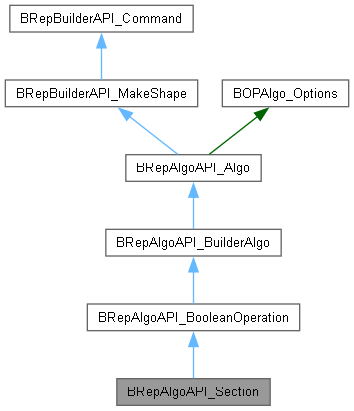

Inheritance diagram for BRepAlgoAPI_Section:

Public Member Functions
	BRepAlgoAPI_Section ()
	Empty constructor.
	~BRepAlgoAPI_Section () override
	BRepAlgoAPI_Section (const BOPAlgo_PaveFiller &PF)
	Empty constructor <PF> - PaveFiller object that is carried out.
	BRepAlgoAPI_Section (const TopoDS_Shape &S1, const TopoDS_Shape &S2, const bool PerformNow=true)
	Constructor with two shapes <S1> -argument <S2> -tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
	BRepAlgoAPI_Section (const TopoDS_Shape &S1, const TopoDS_Shape &S2, const BOPAlgo_PaveFiller &aDSF, const bool PerformNow=true)
	Constructor with two shapes <S1> -argument <S2> -tool <PF> - PaveFiller object that is carried out <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
	BRepAlgoAPI_Section (const TopoDS_Shape &S1, const gp_Pln &Pl, const bool PerformNow=true)
	Constructor with two shapes <S1> - argument <Pl> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
	BRepAlgoAPI_Section (const TopoDS_Shape &S1, const occ::handle< Geom_Surface > &Sf, const bool PerformNow=true)
	Constructor with two shapes <S1> - argument <Sf> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
	BRepAlgoAPI_Section (const occ::handle< Geom_Surface > &Sf, const TopoDS_Shape &S2, const bool PerformNow=true)
	Constructor with two shapes <Sf> - argument <S2> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
	BRepAlgoAPI_Section (const occ::handle< Geom_Surface > &Sf1, const occ::handle< Geom_Surface > &Sf2, const bool PerformNow=true)
	Constructor with two shapes <Sf1> - argument <Sf2> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.
void	Init1 (const TopoDS_Shape &S1)
	initialize the argument <S1> - argument Obsolete
void	Init1 (const gp_Pln &Pl)
	initialize the argument <Pl> - argument Obsolete
void	Init1 (const occ::handle< Geom_Surface > &Sf)
	initialize the argument <Sf> - argument Obsolete
void	Init2 (const TopoDS_Shape &S2)
	initialize the tool <S2> - tool Obsolete
void	Init2 (const gp_Pln &Pl)
	initialize the tool <Pl> - tool Obsolete
void	Init2 (const occ::handle< Geom_Surface > &Sf)
	initialize the tool <Sf> - tool Obsolete
void	Approximation (const bool B)
void	ComputePCurveOn1 (const bool B)
	Indicates whether the P-Curve should be (or not) performed on the argument. By default, no parametric 2D curve (pcurve) is defined for the edges of the result. If ComputePCurve1 equals true, further computations performed to attach an P-Curve in the parametric space of the argument to the constructed edges. Obsolete.
void	ComputePCurveOn2 (const bool B)
	Indicates whether the P-Curve should be (or not) performed on the tool. By default, no parametric 2D curve (pcurve) is defined for the edges of the result. If ComputePCurve1 equals true, further computations performed to attach an P-Curve in the parametric space of the tool to the constructed edges. Obsolete.
void	Build (const Message_ProgressRange &theRange=Message_ProgressRange()) override
	Performs the algorithm Filling interference Data Structure (if it is necessary) Building the result of the operation.
bool	HasAncestorFaceOn1 (const TopoDS_Shape &E, TopoDS_Shape &F) const
	get the face of the first part giving section edge <E>. Returns True on the 3 following conditions : 1/ <E> is an edge returned by the Shape() metwod. 2/ First part of section performed is a shape. 3/ <E> is built on a intersection curve (i.e <E> is not the result of common edges) When False, F remains untouched. Obsolete
bool	HasAncestorFaceOn2 (const TopoDS_Shape &E, TopoDS_Shape &F) const
	Identifies the ancestor faces of the intersection edge E resulting from the last computation performed in this framework, that is, the faces of the two original shapes on which the edge E lies:
Public Member Functions inherited from BRepAlgoAPI_BooleanOperation
const TopoDS_Shape &	Shape1 () const
	Returns the second argument involved in this Boolean operation. Obsolete.
const TopoDS_Shape &	Shape2 () const
	Returns the second argument involved in this Boolean operation. Obsolete.
void	SetTools (const NCollection_List< TopoDS_Shape > &theLS)
	Sets the Tool arguments.
const NCollection_List< TopoDS_Shape > &	Tools () const
	Returns the Tools arguments.
void	SetOperation (const BOPAlgo_Operation theBOP)
	Returns the type of Boolean Operation.
BOPAlgo_Operation	Operation () const
	Returns the type of Boolean Operation.
	BRepAlgoAPI_BooleanOperation ()
	Constructor with precomputed intersections of arguments.
	BRepAlgoAPI_BooleanOperation (const BOPAlgo_PaveFiller &thePF)
	Constructor with precomputed intersections of arguments.
Public Member Functions inherited from BRepAlgoAPI_BuilderAlgo
	BRepAlgoAPI_BuilderAlgo ()
	Constructor with prepared Filler object.
	~BRepAlgoAPI_BuilderAlgo () override
	Constructor with prepared Filler object.
	BRepAlgoAPI_BuilderAlgo (const BOPAlgo_PaveFiller &thePF)
	Constructor with prepared Filler object.
	BRepAlgoAPI_BuilderAlgo (const BRepAlgoAPI_BuilderAlgo &)=delete
	Copy constructor is not allowed.
	BRepAlgoAPI_BuilderAlgo (BRepAlgoAPI_BuilderAlgo &&)=delete
	Move constructor is not allowed.
BRepAlgoAPI_BuilderAlgo &	operator= (const BRepAlgoAPI_BuilderAlgo &)=delete
	Copy assignment is not allowed.
BRepAlgoAPI_BuilderAlgo &	operator= (BRepAlgoAPI_BuilderAlgo &&)=delete
	Move assignment is not allowed.
void	SetArguments (const NCollection_List< TopoDS_Shape > &theLS)
	Gets the arguments.
const NCollection_List< TopoDS_Shape > &	Arguments () const
	Gets the arguments.
void	SetNonDestructive (const bool theFlag)
	Returns the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated.
bool	NonDestructive () const
	Returns the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated.
void	SetGlue (const BOPAlgo_GlueEnum theGlue)
	Sets the glue option for the algorithm, which allows increasing performance of the intersection of the input shapes.
BOPAlgo_GlueEnum	Glue () const
	Returns the glue option of the algorithm.
void	SetCheckInverted (const bool theCheck)
	Enables/Disables the check of the input solids for inverted status.
bool	CheckInverted () const
	Returns the flag defining whether the check for input solids on inverted status should be performed or not.
void	SimplifyResult (const bool theUnifyEdges=true, const bool theUnifyFaces=true, const double theAngularTol=Precision::Angular())
const NCollection_List< TopoDS_Shape > &	Modified (const TopoDS_Shape &theS) override
	Returns the list of shapes generated from the shape <theS>. In frames of Boolean Operations algorithms only Edges and Faces could have Generated elements, as only they produce new elements during intersection:
const NCollection_List< TopoDS_Shape > &	Generated (const TopoDS_Shape &theS) override
	Returns the list of shapes generated from the shape <theS>. In frames of Boolean Operations algorithms only Edges and Faces could have Generated elements, as only they produce new elements during intersection:
bool	IsDeleted (const TopoDS_Shape &aS) override
	Checks if the shape <theS> has been completely removed from the result, i.e. the result does not contain the shape itself and any of its splits. Returns TRUE if the shape has been deleted.
virtual bool	HasModified () const
	Returns true if any of the input shapes has been modified during operation.
virtual bool	HasGenerated () const
	Returns true if any of the input shapes has generated shapes during operation.
virtual bool	HasDeleted () const
	Returns true if any of the input shapes has been deleted during operation. Normally, General Fuse operation should not have Deleted elements, but all derived operation can have.
void	SetToFillHistory (const bool theHistFlag)
	Returns flag of history availability.
bool	HasHistory () const
	Returns flag of history availability.
const NCollection_List< TopoDS_Shape > &	SectionEdges ()
const BOPAlgo_PPaveFiller &	DSFiller () const
	Returns the Building tool.
const BOPAlgo_PBuilder &	Builder () const
	Returns the Building tool.
occ::handle< BRepTools_History >	History () const
	History tool.
Public Member Functions inherited from BRepAlgoAPI_Algo
const TopoDS_Shape &	Shape () override
	Returns a shape built by the shape construction algorithm. Does not check if the shape is built.
void	ClearWarnings ()
	Clears the warnings of the algorithm.
void	DumpErrors (Standard_OStream &theOS) const
	Dumps the error status into the given stream.
void	DumpWarnings (Standard_OStream &theOS) const
	Dumps the warning statuses into the given stream.
double	FuzzyValue () const
	Returns the additional tolerance.
const occ::handle< Message_Report > &	GetReport () const
	Returns report collecting all errors and warnings.
bool	HasError (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated error of specified type.
bool	HasErrors () const
	Returns true if algorithm has failed.
bool	HasWarning (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated warning of specified type.
bool	HasWarnings () const
	Returns true if algorithm has generated some warning alerts.
bool	RunParallel () const
	Returns the flag of parallel processing.
void	SetFuzzyValue (const double theFuzz)
	Sets the additional tolerance.
void	SetRunParallel (const bool theFlag)
	Set the flag of parallel processing if <theFlag> is true the parallel processing is switched on if <theFlag> is false the parallel processing is switched off.
void	SetUseOBB (const bool theUseOBB)
	Enables/Disables the usage of OBB.
Public Member Functions inherited from BRepBuilderAPI_MakeShape
	operator TopoDS_Shape ()
Public Member Functions inherited from BRepBuilderAPI_Command
virtual	~BRepBuilderAPI_Command ()
virtual bool	IsDone () const
void	Check () const
	Raises NotDone if done is false.

Protected Member Functions
void	Init (const bool PerformNow)
void	SetAttributes () override
Protected Member Functions inherited from BRepAlgoAPI_BooleanOperation
	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &theS1, const TopoDS_Shape &theS2, const BOPAlgo_Operation theOperation)
	Constructor with precomputed intersections of arguments.
	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &theS1, const TopoDS_Shape &theS2, const BOPAlgo_PaveFiller &thePF, const BOPAlgo_Operation theOperation)
	Constructor to perform Boolean operation on only two arguments with precomputed intersection results. Obsolete.
Protected Member Functions inherited from BRepAlgoAPI_BuilderAlgo
void	IntersectShapes (const NCollection_List< TopoDS_Shape > &theArgs, const Message_ProgressRange &theRange)
	Builds the resulting shape.
void	BuildResult (const Message_ProgressRange &theRange=Message_ProgressRange())
	Builds the resulting shape.
void	Clear () override
	Clears all warnings and errors, and any data cached by the algorithm. User defined options are not cleared.
Protected Member Functions inherited from BRepAlgoAPI_Algo
	BRepAlgoAPI_Algo ()
	Empty constructor.
	~BRepAlgoAPI_Algo () override
	Destructor.
	BRepAlgoAPI_Algo (const occ::handle< NCollection_BaseAllocator > &theAllocator)
	Empty constructor.
Protected Member Functions inherited from BRepBuilderAPI_MakeShape
	BRepBuilderAPI_MakeShape ()
Protected Member Functions inherited from BRepBuilderAPI_Command
	BRepBuilderAPI_Command ()
	Set done to False.
void	Done ()
	Set done to true.
void	NotDone ()
	Set done to false.
Protected Member Functions inherited from BOPAlgo_Options
bool	UserBreak (const Message_ProgressScope &thePS)
	Adds error to the report if the break signal was caught. Returns true in this case, false otherwise.
	BOPAlgo_Options ()
	Empty constructor.
	BOPAlgo_Options (const occ::handle< NCollection_BaseAllocator > &theAllocator)
	Constructor with allocator.
virtual	~BOPAlgo_Options ()
	Destructor.
const occ::handle< NCollection_BaseAllocator > &	Allocator () const
	Returns allocator.
void	AddError (const occ::handle< Message_Alert > &theAlert)
	Adds the alert as error (fail)
void	AddWarning (const occ::handle< Message_Alert > &theAlert)
	Adds the alert as warning.
bool	HasErrors () const
	Returns true if algorithm has failed.
bool	HasError (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated error of specified type.
bool	HasWarnings () const
	Returns true if algorithm has generated some warning alerts.
bool	HasWarning (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated warning of specified type.
const occ::handle< Message_Report > &	GetReport () const
	Returns report collecting all errors and warnings.
void	DumpErrors (Standard_OStream &theOS) const
	Dumps the error status into the given stream.
void	DumpWarnings (Standard_OStream &theOS) const
	Dumps the warning statuses into the given stream.
void	ClearWarnings ()
	Clears the warnings of the algorithm.
void	SetFuzzyValue (const double theFuzz)
	Sets the additional tolerance.
double	FuzzyValue () const
	Returns the additional tolerance.
void	SetUseOBB (const bool theUseOBB)
	Enables/Disables the usage of OBB.
bool	UseOBB () const
	Returns the flag defining usage of OBB.
void	SetRunParallel (const bool theFlag)
	Set the flag of parallel processing if <theFlag> is true the parallel processing is switched on if <theFlag> is false the parallel processing is switched off.
bool	RunParallel () const
	Returns the flag of parallel processing.

Additional Inherited Members
Static Protected Member Functions inherited from BOPAlgo_Options
static bool	GetParallelMode ()
	Gets the global parallel mode.
static void	SetParallelMode (const bool theNewMode)
	Sets the global parallel mode.
Protected Attributes inherited from BRepAlgoAPI_BooleanOperation
NCollection_List< TopoDS_Shape >	myTools
	Tool arguments of operation.
BOPAlgo_Operation	myOperation
	Type of Boolean Operation.
Protected Attributes inherited from BRepAlgoAPI_BuilderAlgo
NCollection_List< TopoDS_Shape >	myArguments
	Arguments of the operation.
bool	myNonDestructive
	Non-destructive mode management.
BOPAlgo_GlueEnum	myGlue
	Gluing mode management.
bool	myCheckInverted
	Check for inverted solids management.
bool	myFillHistory
	Controls the history collection.
bool	myIsIntersectionNeeded
	Flag to control whether the intersection of arguments should be performed or not.
BOPAlgo_PPaveFiller	myDSFiller
	Intersection tool performs intersection of the argument shapes.
BOPAlgo_PBuilder	myBuilder
	Building tool performs construction of the result basing on the results of intersection.
occ::handle< BRepTools_History >	myHistory
	General History tool, containing all History of shapes modifications during the operation (including result simplification)
occ::handle< BRepTools_History >	mySimplifierHistory
	History of result shape simplification.
Protected Attributes inherited from BRepBuilderAPI_MakeShape
TopoDS_Shape	myShape
NCollection_List< TopoDS_Shape >	myGenerated
Protected Attributes inherited from BOPAlgo_Options
occ::handle< NCollection_BaseAllocator >	myAllocator
	Enables/Disables the usage of OBB.
occ::handle< Message_Report >	myReport
	Enables/Disables the usage of OBB.
bool	myRunParallel
	Enables/Disables the usage of OBB.
double	myFuzzyValue
	Enables/Disables the usage of OBB.
bool	myUseOBB
	Enables/Disables the usage of OBB.

Detailed Description

The algorithm is to build a Section operation between arguments and tools. The result of Section operation consists of vertices and edges. The result of Section operation contains:

1. new vertices that are subjects of V/V, E/E, E/F, F/F interferences
2. vertices that are subjects of V/E, V/F interferences
3. new edges that are subjects of F/F interferences
4. edges that are Common Blocks

Constructor & Destructor Documentation

BRepAlgoAPI_Section() [1/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section

(

)

Empty constructor.

~BRepAlgoAPI_Section()

BRepAlgoAPI_Section::~BRepAlgoAPI_Section ( )

override

BRepAlgoAPI_Section() [2/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section

(

const BOPAlgo_PaveFiller &

PF

)

Empty constructor <PF> - PaveFiller object that is carried out.

BRepAlgoAPI_Section() [3/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const TopoDS_Shape &	S1,
		const TopoDS_Shape &	S2,
		const bool	PerformNow = true )

Constructor with two shapes <S1> -argument <S2> -tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

BRepAlgoAPI_Section() [4/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const TopoDS_Shape &	S1,
		const TopoDS_Shape &	S2,
		const BOPAlgo_PaveFiller &	aDSF,
		const bool	PerformNow = true )

Constructor with two shapes <S1> -argument <S2> -tool <PF> - PaveFiller object that is carried out <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

BRepAlgoAPI_Section() [5/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const TopoDS_Shape &	S1,
		const gp_Pln &	Pl,
		const bool	PerformNow = true )

Constructor with two shapes <S1> - argument <Pl> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

BRepAlgoAPI_Section() [6/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const TopoDS_Shape &	S1,
		const occ::handle< Geom_Surface > &	Sf,
		const bool	PerformNow = true )

Constructor with two shapes <S1> - argument <Sf> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

BRepAlgoAPI_Section() [7/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const occ::handle< Geom_Surface > &	Sf,
		const TopoDS_Shape &	S2,
		const bool	PerformNow = true )

Constructor with two shapes <Sf> - argument <S2> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

BRepAlgoAPI_Section() [8/8]

BRepAlgoAPI_Section::BRepAlgoAPI_Section	(	const occ::handle< Geom_Surface > &	Sf1,
		const occ::handle< Geom_Surface > &	Sf2,
		const bool	PerformNow = true )

Constructor with two shapes <Sf1> - argument <Sf2> - tool <PerformNow> - the flag: if <PerformNow>=True - the algorithm is performed immediately Obsolete.

Member Function Documentation

Approximation()

void BRepAlgoAPI_Section::Approximation

(

const bool

B

)

Build()

void BRepAlgoAPI_Section::Build ( const Message_ProgressRange & theRange = Message_ProgressRange() )

overridevirtual

Performs the algorithm Filling interference Data Structure (if it is necessary) Building the result of the operation.

Reimplemented from BRepAlgoAPI_BooleanOperation.

ComputePCurveOn1()

void BRepAlgoAPI_Section::ComputePCurveOn1

(

const bool

B

)

Indicates whether the P-Curve should be (or not) performed on the argument. By default, no parametric 2D curve (pcurve) is defined for the edges of the result. If ComputePCurve1 equals true, further computations performed to attach an P-Curve in the parametric space of the argument to the constructed edges. Obsolete.

ComputePCurveOn2()

void BRepAlgoAPI_Section::ComputePCurveOn2

(

const bool

B

)

Indicates whether the P-Curve should be (or not) performed on the tool. By default, no parametric 2D curve (pcurve) is defined for the edges of the result. If ComputePCurve1 equals true, further computations performed to attach an P-Curve in the parametric space of the tool to the constructed edges. Obsolete.

HasAncestorFaceOn1()

bool BRepAlgoAPI_Section::HasAncestorFaceOn1	(	const TopoDS_Shape &	E,
		TopoDS_Shape &	F ) const

get the face of the first part giving section edge <E>. Returns True on the 3 following conditions : 1/ <E> is an edge returned by the Shape() metwod. 2/ First part of section performed is a shape. 3/ <E> is built on a intersection curve (i.e <E> is not the result of common edges) When False, F remains untouched. Obsolete

HasAncestorFaceOn2()

bool BRepAlgoAPI_Section::HasAncestorFaceOn2	(	const TopoDS_Shape &	E,
		TopoDS_Shape &	F ) const

Identifies the ancestor faces of the intersection edge E resulting from the last computation performed in this framework, that is, the faces of the two original shapes on which the edge E lies:

• HasAncestorFaceOn1 gives the ancestor face in the first shape, and
• HasAncestorFaceOn2 gives the ancestor face in the second shape. These functions return true if an ancestor face F is found, or false if not. An ancestor face is identifiable for the edge E if the following conditions are satisfied:
• the first part on which this algorithm performed its last computation is a shape, that is, it was not given as a surface or a plane at the time of construction of this algorithm or at a later time by the Init1 function,
• E is one of the elementary edges built by the last computation of this section algorithm. To use these functions properly, you have to test the returned Boolean value before using the ancestor face: F is significant only if the returned Boolean value equals true. Obsolete

Init()

void BRepAlgoAPI_Section::Init ( const bool PerformNow )

protected

Init1() [1/3]

void BRepAlgoAPI_Section::Init1

(

const gp_Pln &

Pl

)

initialize the argument <Pl> - argument Obsolete

Init1() [2/3]

void BRepAlgoAPI_Section::Init1

(

const occ::handle< Geom_Surface > &

Sf

)

initialize the argument <Sf> - argument Obsolete

Init1() [3/3]

void BRepAlgoAPI_Section::Init1

(

const TopoDS_Shape &

S1

)

initialize the argument <S1> - argument Obsolete

Init2() [1/3]

void BRepAlgoAPI_Section::Init2

(

const gp_Pln &

Pl

)

initialize the tool <Pl> - tool Obsolete

Init2() [2/3]

void BRepAlgoAPI_Section::Init2

(

const occ::handle< Geom_Surface > &

Sf

)

initialize the tool <Sf> - tool Obsolete

Init2() [3/3]

void BRepAlgoAPI_Section::Init2

(

const TopoDS_Shape &

S2

)

initialize the tool <S2> - tool Obsolete

SetAttributes()

void BRepAlgoAPI_Section::SetAttributes ( )

overrideprotectedvirtual

Reimplemented from BRepAlgoAPI_BuilderAlgo.

---

The documentation for this class was generated from the following file:

• BRepAlgoAPI_Section.hxx
