BRepFeat_Form Class Reference

Provides general functions to build form features. Form features can be depressions or protrusions and include the following types: More...

#include <BRepFeat_Form.hxx>

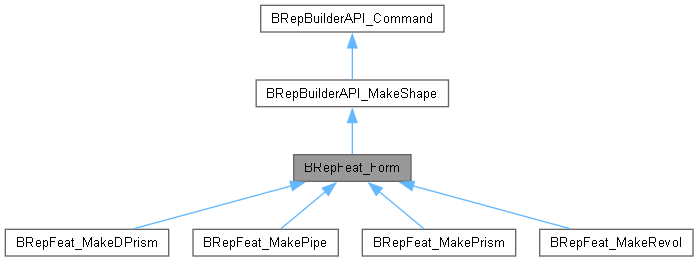

Inheritance diagram for BRepFeat_Form:

Public Member Functions
const NCollection_List< TopoDS_Shape > &	Modified (const TopoDS_Shape &F) override
	returns the list of generated Faces.
const NCollection_List< TopoDS_Shape > &	Generated (const TopoDS_Shape &S) override
	returns a list of the created faces from the shape .
bool	IsDeleted (const TopoDS_Shape &S) override
	Returns true if the shape S has been deleted.
const NCollection_List< TopoDS_Shape > &	FirstShape () const
	Returns the list of shapes created at the bottom of the created form. It may be an empty list.
const NCollection_List< TopoDS_Shape > &	LastShape () const
	Returns the list of shapes created at the top of the created form. It may be an empty list.
const NCollection_List< TopoDS_Shape > &	NewEdges () const
	Returns a list of the limiting and glueing edges generated by the feature. These edges did not originally exist in the basis shape. The list provides the information necessary for subsequent addition of fillets. It may be an empty list.
const NCollection_List< TopoDS_Shape > &	TgtEdges () const
	Returns a list of the tangent edges among the limiting and glueing edges generated by the feature. These edges did not originally exist in the basis shape and are tangent to the face against which the feature is built. The list provides the information necessary for subsequent addition of fillets. It may be an empty list. If an edge is tangent, no fillet is possible, and the edge must subsequently be removed if you want to add a fillet.
void	BasisShapeValid ()
	Initializes the topological construction if the basis shape is present.
void	GeneratedShapeValid ()
	Initializes the topological construction if the generated shape S is present.
void	ShapeFromValid ()
	Initializes the topological construction if the shape is present from the specified integer on.
void	ShapeUntilValid ()
	Initializes the topological construction if the shape is present until the specified integer.
void	GluedFacesValid ()
	Initializes the topological construction if the glued face is present.
void	SketchFaceValid ()
	Initializes the topological construction if the sketch face is present. If the sketch face is inside the basis shape, local operations such as glueing can be performed.
void	PerfSelectionValid ()
	Initializes the topological construction if the selected face is present.
virtual void	Curves (NCollection_Sequence< occ::handle< Geom_Curve > > &S)=0
virtual occ::handle< Geom_Curve >	BarycCurve ()=0
BRepFeat_StatusError	CurrentStatusError () const
Public Member Functions inherited from BRepBuilderAPI_MakeShape
virtual void	Build (const Message_ProgressRange &theRange=Message_ProgressRange())
	This is called by Shape(). It does nothing but may be redefined.
virtual const TopoDS_Shape &	Shape ()
	Returns a shape built by the shape construction algorithm. Raises exception StdFail_NotDone if the shape was not built.
	operator TopoDS_Shape ()
Public Member Functions inherited from BRepBuilderAPI_Command
virtual	~BRepBuilderAPI_Command ()
virtual bool	IsDone () const
void	Check () const
	Raises NotDone if done is false.

Protected Member Functions
	BRepFeat_Form ()
	Redefines the empty constructor.
void	GlobalPerform ()
	General perform method...
void	UpdateDescendants (const LocOpe_Gluer &G)
void	UpdateDescendants (const BRepAlgoAPI_BooleanOperation &aBOP, const TopoDS_Shape &SResult, const bool SkipFace=false)
bool	TransformShapeFU (const int flag)
Protected Member Functions inherited from BRepBuilderAPI_MakeShape
	BRepBuilderAPI_MakeShape ()
Protected Member Functions inherited from BRepBuilderAPI_Command
	BRepBuilderAPI_Command ()
	Set done to False.
void	Done ()
	Set done to true.
void	NotDone ()
	Set done to false.

Protected Attributes
bool	myFuse
bool	myModify
NCollection_DataMap< TopoDS_Shape, NCollection_List< TopoDS_Shape >, TopTools_ShapeMapHasher >	myMap
TopoDS_Shape	myFShape
TopoDS_Shape	myLShape
NCollection_List< TopoDS_Shape >	myNewEdges
NCollection_List< TopoDS_Shape >	myTgtEdges
BRepFeat_PerfSelection	myPerfSelection
bool	myJustGluer
bool	myJustFeat
TopoDS_Shape	mySbase
TopoDS_Face	mySkface
TopoDS_Shape	myGShape
TopoDS_Shape	mySFrom
TopoDS_Shape	mySUntil
NCollection_DataMap< TopoDS_Shape, TopoDS_Shape, TopTools_ShapeMapHasher >	myGluedF
Protected Attributes inherited from BRepBuilderAPI_MakeShape
TopoDS_Shape	myShape
NCollection_List< TopoDS_Shape >	myGenerated

Detailed Description

Provides general functions to build form features. Form features can be depressions or protrusions and include the following types:

• Cylinder
• Draft Prism
• Prism
• Revolved feature
• Pipe In each case, you have a choice of operation type between the following:
• removing matter (a Boolean cut: Fuse setting 0)
• adding matter (Boolean fusion: Fuse setting 1) The semantics of form feature creation is based on the construction of shapes:
• along a length
• up to a limiting face
• from a limiting face to a height
• above and/or below a plane The shape defining construction of the feature can be either the supporting edge or the concerned area of a face. In case of the supporting edge, this contour can be attached to a face of the basis shape by binding. When the contour is bound to this face, the information that the contour will slide on the face becomes available to the relevant class methods. In case of the concerned area of a face, you could, for example, cut it out and move it to a different height which will define the limiting face of a protrusion or depression. Topological definition with local operations of this sort makes calculations simpler and faster than a global operation. The latter would entail a second phase of removing unwanted matter to get the same result.

Constructor & Destructor Documentation

BRepFeat_Form()

BRepFeat_Form::BRepFeat_Form ( )

protected

Redefines the empty constructor.

Member Function Documentation

BarycCurve()

virtual occ::handle< Geom_Curve > BRepFeat_Form::BarycCurve ( )

pure virtual

Implemented in BRepFeat_MakeDPrism, BRepFeat_MakePipe, BRepFeat_MakePrism, and BRepFeat_MakeRevol.

BasisShapeValid()

void BRepFeat_Form::BasisShapeValid

(

)

Initializes the topological construction if the basis shape is present.

CurrentStatusError()

BRepFeat_StatusError BRepFeat_Form::CurrentStatusError

(

)

const

Curves()

virtual void BRepFeat_Form::Curves ( NCollection_Sequence< occ::handle< Geom_Curve > > & S )

pure virtual

Implemented in BRepFeat_MakeDPrism, BRepFeat_MakePipe, BRepFeat_MakePrism, and BRepFeat_MakeRevol.

FirstShape()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::FirstShape

(

)

const

Returns the list of shapes created at the bottom of the created form. It may be an empty list.

Generated()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::Generated ( const TopoDS_Shape & S )

overridevirtual

returns a list of the created faces from the shape .

Reimplemented from BRepBuilderAPI_MakeShape.

GeneratedShapeValid()

void BRepFeat_Form::GeneratedShapeValid

(

)

Initializes the topological construction if the generated shape S is present.

GlobalPerform()

void BRepFeat_Form::GlobalPerform ( )

protected

General perform method...

GluedFacesValid()

void BRepFeat_Form::GluedFacesValid

(

)

Initializes the topological construction if the glued face is present.

IsDeleted()

bool BRepFeat_Form::IsDeleted ( const TopoDS_Shape & S )

overridevirtual

Returns true if the shape S has been deleted.

Reimplemented from BRepBuilderAPI_MakeShape.

LastShape()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::LastShape

(

)

const

Returns the list of shapes created at the top of the created form. It may be an empty list.

Modified()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::Modified ( const TopoDS_Shape & F )

overridevirtual

returns the list of generated Faces.

Reimplemented from BRepBuilderAPI_MakeShape.

NewEdges()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::NewEdges

(

)

const

Returns a list of the limiting and glueing edges generated by the feature. These edges did not originally exist in the basis shape. The list provides the information necessary for subsequent addition of fillets. It may be an empty list.

PerfSelectionValid()

void BRepFeat_Form::PerfSelectionValid

(

)

Initializes the topological construction if the selected face is present.

ShapeFromValid()

void BRepFeat_Form::ShapeFromValid

(

)

Initializes the topological construction if the shape is present from the specified integer on.

ShapeUntilValid()

void BRepFeat_Form::ShapeUntilValid

(

)

Initializes the topological construction if the shape is present until the specified integer.

SketchFaceValid()

void BRepFeat_Form::SketchFaceValid

(

)

Initializes the topological construction if the sketch face is present. If the sketch face is inside the basis shape, local operations such as glueing can be performed.

TgtEdges()

const NCollection_List< TopoDS_Shape > & BRepFeat_Form::TgtEdges

(

)

const

Returns a list of the tangent edges among the limiting and glueing edges generated by the feature. These edges did not originally exist in the basis shape and are tangent to the face against which the feature is built. The list provides the information necessary for subsequent addition of fillets. It may be an empty list. If an edge is tangent, no fillet is possible, and the edge must subsequently be removed if you want to add a fillet.

TransformShapeFU()

bool BRepFeat_Form::TransformShapeFU ( const int flag )

protected

UpdateDescendants() [1/2]

void BRepFeat_Form::UpdateDescendants ( const BRepAlgoAPI_BooleanOperation & aBOP, const TopoDS_Shape & SResult, const bool SkipFace = false )

protected

UpdateDescendants() [2/2]

void BRepFeat_Form::UpdateDescendants ( const LocOpe_Gluer & G )

protected

Field Documentation

myFShape

TopoDS_Shape BRepFeat_Form::myFShape

protected

myFuse

bool BRepFeat_Form::myFuse

protected

myGluedF

NCollection_DataMap<TopoDS_Shape, TopoDS_Shape, TopTools_ShapeMapHasher> BRepFeat_Form::myGluedF

protected

myGShape

TopoDS_Shape BRepFeat_Form::myGShape

protected

myJustFeat

bool BRepFeat_Form::myJustFeat

protected

myJustGluer

bool BRepFeat_Form::myJustGluer

protected

myLShape

TopoDS_Shape BRepFeat_Form::myLShape

protected

myMap

NCollection_DataMap<TopoDS_Shape, NCollection_List<TopoDS_Shape>, TopTools_ShapeMapHasher> BRepFeat_Form::myMap

protected

myModify

bool BRepFeat_Form::myModify

protected

myNewEdges

NCollection_List<TopoDS_Shape> BRepFeat_Form::myNewEdges

protected

myPerfSelection

BRepFeat_PerfSelection BRepFeat_Form::myPerfSelection

protected

mySbase

TopoDS_Shape BRepFeat_Form::mySbase

protected

mySFrom

TopoDS_Shape BRepFeat_Form::mySFrom

protected

mySkface

TopoDS_Face BRepFeat_Form::mySkface

protected

mySUntil

TopoDS_Shape BRepFeat_Form::mySUntil

protected

myTgtEdges

NCollection_List<TopoDS_Shape> BRepFeat_Form::myTgtEdges

protected

---

The documentation for this class was generated from the following file:

• BRepFeat_Form.hxx
