Energy Criterium to minimize in Batten. More...

#include <FairCurve_EnergyOfBatten.hxx>

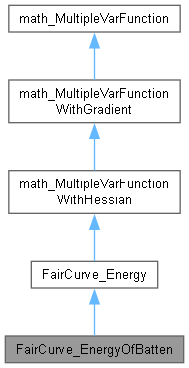

Inheritance diagram for FairCurve_EnergyOfBatten:

[legend]

Public Member Functions
	FairCurve_EnergyOfBatten (const int BSplOrder, const occ::handle< NCollection_HArray1< double > > &FlatKnots, const occ::handle< NCollection_HArray1< gp_Pnt2d > > &Poles, const int ContrOrder1, const int ContrOrder2, const FairCurve_BattenLaw &Law, const double LengthSliding, const bool FreeSliding=true, const double Angle1=0, const double Angle2=0)
	Angles correspond to the Ox axis.

double	LengthSliding () const
	return the lengthSliding = P1P2 + Sliding

FairCurve_AnalysisCode	Status () const
	return the status

bool	Variable (math_Vector &X) const override
	compute the variables <X> which correspond with the field <MyPoles>

Public Member Functions inherited from FairCurve_Energy
int	NbVariables () const override
	returns the number of variables of the energy.

bool	Value (const math_Vector &X, double &E) override
	computes the values of the Energys E for the variable <X>. Returns True if the computation was done successfully, False otherwise.

bool	Gradient (const math_Vector &X, math_Vector &G) override
	computes the gradient <G> of the energys for the variable <X>. Returns True if the computation was done successfully, False otherwise.

bool	Values (const math_Vector &X, double &E, math_Vector &G) override
	computes the Energy <E> and the gradient <G> of the energy for the variable <X>. Returns True if the computation was done successfully, False otherwise.

bool	Values (const math_Vector &X, double &E, math_Vector &G, math_Matrix &H) override
	computes the Energy <E>, the gradient <G> and the Hessian <H> of the energy for the variable <X>. Returns True if the computation was done successfully, False otherwise.

const occ::handle< NCollection_HArray1< gp_Pnt2d > > &	Poles () const
	return the poles

Public Member Functions inherited from math_MultipleVarFunction
virtual int	GetStateNumber ()
	return the state of the function corresponding to the latestt call of any methods associated to the function. This function is called by each of the algorithms described later which define the function Integer Algorithm::StateNumber(). The algorithm has the responsibility to call this function when it has found a solution (i.e. a root or a minimum) and has to maintain the association between the solution found and this StateNumber. Byu default, this method returns 0 (which means for the algorithm: no state has been saved). It is the responsibility of the programmer to decide if he needs to save the current state of the function and to return an Integer that allows retrieval of the state.

virtual	~math_MultipleVarFunction ()

Protected Member Functions
void	ComputePoles (const math_Vector &X) override
	compute the poles which correspond with the variable X

bool	Compute (const int DerivativeOrder, math_Vector &Result) override
	compute the energy in intermediate format

Protected Member Functions inherited from FairCurve_Energy
	FairCurve_Energy (const occ::handle< NCollection_HArray1< gp_Pnt2d > > &Poles, const int ConstrOrder1, const int ConstrOrder2, const bool WithAuxValue=false, const double Angle1=0, const double Angle2=0, const int Degree=2, const double Curvature1=0, const double Curvature2=0)
	Angles correspond to the Ox axis ConstrOrder1(2) can be equal to 0, 1 or 2.

void	Gradient1 (const math_Vector &TheVector, math_Vector &G)
	It is use internally to make the Gradient Vector <G>

void	Hessian1 (const math_Vector &TheVector, math_Matrix &H)
	It is use internally to make the Hessian Matrix <H>

int	Indice (const int i, const int j) const

void	ComputePolesG1 (const int Side, const double Lambda, const gp_Pnt2d &P1, gp_Pnt2d &P2) const
	compute the pole which depend of variables and G1 constraint

void	ComputePolesG2 (const int Side, const double Lambda, const double Rho, const gp_Pnt2d &P1, gp_Pnt2d &P2) const
	compute the pole which depend of variables and G2 constraint

Additional Inherited Members
Protected Attributes inherited from FairCurve_Energy
occ::handle< NCollection_HArray1< gp_Pnt2d > >	MyPoles

int	MyContrOrder1

int	MyContrOrder2

bool	MyWithAuxValue

int	MyNbVar

Detailed Description

Energy Criterium to minimize in Batten.

Constructor & Destructor Documentation

◆ FairCurve_EnergyOfBatten()

FairCurve_EnergyOfBatten::FairCurve_EnergyOfBatten	(	const int	BSplOrder,
		const occ::handle< NCollection_HArray1< double > > &	FlatKnots,
		const occ::handle< NCollection_HArray1< gp_Pnt2d > > &	Poles,
		const int	ContrOrder1,
		const int	ContrOrder2,
		const FairCurve_BattenLaw &	Law,
		const double	LengthSliding,
		const bool	FreeSliding = true,
		const double	Angle1 = 0,
		const double	Angle2 = 0 )

Angles correspond to the Ox axis.

Member Function Documentation

◆ Compute()

bool FairCurve_EnergyOfBatten::Compute	(	const int	DerivativeOrder,
		math_Vector &	Result )

overrideprotectedvirtual

compute the energy in intermediate format

Implements FairCurve_Energy.

◆ ComputePoles()

void FairCurve_EnergyOfBatten::ComputePoles ( const math_Vector & X )

overrideprotectedvirtual

compute the poles which correspond with the variable X

Reimplemented from FairCurve_Energy.

◆ LengthSliding()

double FairCurve_EnergyOfBatten::LengthSliding ( ) const

return the lengthSliding = P1P2 + Sliding

◆ Status()

FairCurve_AnalysisCode FairCurve_EnergyOfBatten::Status ( ) const

return the status

◆ Variable()

bool FairCurve_EnergyOfBatten::Variable ( math_Vector & X ) const

overridevirtual

compute the variables <X> which correspond with the field <MyPoles>
