HatchGen_IntersectionPoint Class Reference

#include <HatchGen_IntersectionPoint.hxx>

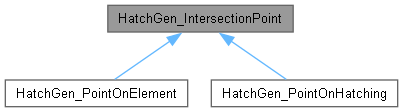

Inheritance diagram for HatchGen_IntersectionPoint:

Public Member Functions
void	SetIndex (const int Index)
	Sets the index of the supporting curve.
int	Index () const
	Returns the index of the supporting curve.
void	SetParameter (const double Parameter)
	Sets the parameter on the curve.
double	Parameter () const
	Returns the parameter on the curve.
void	SetPosition (const TopAbs_Orientation Position)
	Sets the position of the point on the curve.
TopAbs_Orientation	Position () const
	Returns the position of the point on the curve.
void	SetStateBefore (const TopAbs_State State)
	Sets the transition state before the intersection.
TopAbs_State	StateBefore () const
	Returns the transition state before the intersection.
void	SetStateAfter (const TopAbs_State State)
	Sets the transition state after the intersection.
TopAbs_State	StateAfter () const
	Returns the transition state after of the intersection.
void	SetSegmentBeginning (const bool State=true)
	Sets the flag that the point is the beginning of a segment.
bool	SegmentBeginning () const
	Returns the flag that the point is the beginning of a segment.
void	SetSegmentEnd (const bool State=true)
	Sets the flag that the point is the end of a segment.
bool	SegmentEnd () const
	Returns the flag that the point is the end of a segment.
virtual void	Dump (const int Index=0) const =0
	Dump of the point on element.

Protected Member Functions
	HatchGen_IntersectionPoint ()
	Creates an empty intersection point.
	~HatchGen_IntersectionPoint ()=default
	Destructor is protected for safer inheritance.

Protected Attributes
int	myIndex
double	myParam
TopAbs_Orientation	myPosit
TopAbs_State	myBefore
TopAbs_State	myAfter
bool	mySegBeg
bool	mySegEnd

Constructor & Destructor Documentation

HatchGen_IntersectionPoint()

HatchGen_IntersectionPoint::HatchGen_IntersectionPoint ( )

protected

Creates an empty intersection point.

~HatchGen_IntersectionPoint()

HatchGen_IntersectionPoint::~HatchGen_IntersectionPoint ( )

protecteddefault

Destructor is protected for safer inheritance.

Member Function Documentation

Dump()

virtual void HatchGen_IntersectionPoint::Dump ( const int Index = 0 ) const

pure virtual

Dump of the point on element.

Implemented in HatchGen_PointOnElement, and HatchGen_PointOnHatching.

Index()

int HatchGen_IntersectionPoint::Index

(

)

const

Returns the index of the supporting curve.

Parameter()

double HatchGen_IntersectionPoint::Parameter

(

)

const

Returns the parameter on the curve.

Position()

TopAbs_Orientation HatchGen_IntersectionPoint::Position

(

)

const

Returns the position of the point on the curve.

SegmentBeginning()

bool HatchGen_IntersectionPoint::SegmentBeginning

(

)

const

Returns the flag that the point is the beginning of a segment.

SegmentEnd()

bool HatchGen_IntersectionPoint::SegmentEnd

(

)

const

Returns the flag that the point is the end of a segment.

SetIndex()

void HatchGen_IntersectionPoint::SetIndex

(

const int

Index

)

Sets the index of the supporting curve.

SetParameter()

void HatchGen_IntersectionPoint::SetParameter

(

const double

Parameter

)

Sets the parameter on the curve.

SetPosition()

void HatchGen_IntersectionPoint::SetPosition

(

const TopAbs_Orientation

Position

)

Sets the position of the point on the curve.

SetSegmentBeginning()

void HatchGen_IntersectionPoint::SetSegmentBeginning

(

const bool

State = true

)

Sets the flag that the point is the beginning of a segment.

SetSegmentEnd()

void HatchGen_IntersectionPoint::SetSegmentEnd

(

const bool

State = true

)

Sets the flag that the point is the end of a segment.

SetStateAfter()

void HatchGen_IntersectionPoint::SetStateAfter

(

const TopAbs_State

State

)

Sets the transition state after the intersection.

SetStateBefore()

void HatchGen_IntersectionPoint::SetStateBefore

(

const TopAbs_State

State

)

Sets the transition state before the intersection.

StateAfter()

TopAbs_State HatchGen_IntersectionPoint::StateAfter

(

)

const

Returns the transition state after of the intersection.

StateBefore()

TopAbs_State HatchGen_IntersectionPoint::StateBefore

(

)

const

Returns the transition state before the intersection.

Field Documentation

myAfter

TopAbs_State HatchGen_IntersectionPoint::myAfter

protected

myBefore

TopAbs_State HatchGen_IntersectionPoint::myBefore

protected

myIndex

int HatchGen_IntersectionPoint::myIndex

protected

myParam

double HatchGen_IntersectionPoint::myParam

protected

myPosit

TopAbs_Orientation HatchGen_IntersectionPoint::myPosit

protected

mySegBeg

bool HatchGen_IntersectionPoint::mySegBeg

protected

mySegEnd

bool HatchGen_IntersectionPoint::mySegEnd

protected

---

The documentation for this class was generated from the following file:

• HatchGen_IntersectionPoint.hxx
