OpenGl_Element Class Reference

Base interface for drawable elements. More...

#include <OpenGl_Element.hxx>

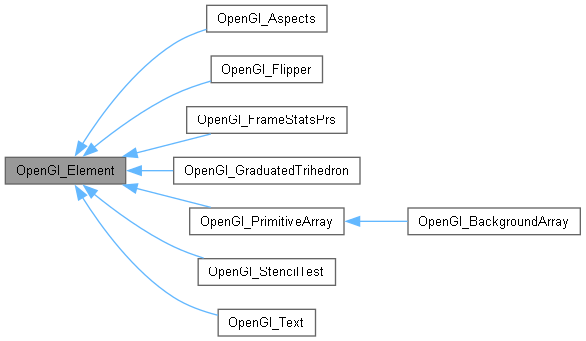

Inheritance diagram for OpenGl_Element:

Public Member Functions
	OpenGl_Element ()
virtual void	Render (const Handle< OpenGl_Workspace > &theWorkspace) const =0
virtual void	Release (OpenGl_Context *theContext)=0
	Release GPU resources. Pointer to the context is used because this method might be called when the context is already being destroyed and usage of a handle would be unsafe.
virtual Standard_Boolean	IsFillDrawMode () const
	Return TRUE if primitive type generates shaded triangulation (to be used in filters).
virtual Standard_Size	EstimatedDataSize () const
	Returns estimated GPU memory usage for holding data without considering overheads and allocation alignment rules.
virtual void	UpdateMemStats (Graphic3d_FrameStatsDataTmp &theStats) const
	Increment memory usage statistics. Default implementation puts EstimatedDataSize() into Graphic3d_FrameStatsCounter_EstimatedBytesGeom.
virtual void	UpdateDrawStats (Graphic3d_FrameStatsDataTmp &theStats, bool theIsDetailed) const
	Increment draw calls statistics.
virtual void	SynchronizeAspects ()
	Update parameters of the drawable elements.
virtual void	DumpJson (Standard_OStream &theOStream, Standard_Integer theDepth=-1) const
	Dumps the content of me into the stream.

Static Public Member Functions
template<typename theResource_t>
static void	Destroy (OpenGl_Context *theContext, theResource_t *&theElement)
	Pointer to the context is used because this method might be called when the context is already being destroyed and usage of a handle would be unsafe.

Protected Member Functions
virtual	~OpenGl_Element ()

Detailed Description

Base interface for drawable elements.

Constructor & Destructor Documentation

OpenGl_Element()

OpenGl_Element::OpenGl_Element

(

)

~OpenGl_Element()

virtual OpenGl_Element::~OpenGl_Element ( )

protectedvirtual

Member Function Documentation

Destroy()

template<typename theResource_t>

static void OpenGl_Element::Destroy ( OpenGl_Context * theContext, theResource_t *& theElement )

inlinestatic

Pointer to the context is used because this method might be called when the context is already being destroyed and usage of a handle would be unsafe.

DumpJson()

virtual void OpenGl_Element::DumpJson ( Standard_OStream & theOStream, Standard_Integer theDepth = -1 ) const

virtual

Dumps the content of me into the stream.

Reimplemented in OpenGl_Aspects, OpenGl_Flipper, OpenGl_FrameStatsPrs, OpenGl_GraduatedTrihedron, OpenGl_PrimitiveArray, OpenGl_StencilTest, and OpenGl_Text.

EstimatedDataSize()

virtual Standard_Size OpenGl_Element::EstimatedDataSize ( ) const

inlinevirtual

Returns estimated GPU memory usage for holding data without considering overheads and allocation alignment rules.

Reimplemented in OpenGl_PrimitiveArray, and OpenGl_Text.

IsFillDrawMode()

virtual Standard_Boolean OpenGl_Element::IsFillDrawMode ( ) const

inlinevirtual

Return TRUE if primitive type generates shaded triangulation (to be used in filters).

Reimplemented in OpenGl_PrimitiveArray.

Release()

virtual void OpenGl_Element::Release ( OpenGl_Context * theContext )

pure virtual

Release GPU resources. Pointer to the context is used because this method might be called when the context is already being destroyed and usage of a handle would be unsafe.

Implemented in OpenGl_Aspects, OpenGl_Flipper, OpenGl_FrameStatsPrs, OpenGl_GraduatedTrihedron, OpenGl_PrimitiveArray, OpenGl_StencilTest, and OpenGl_Text.

Render()

virtual void OpenGl_Element::Render ( const Handle< OpenGl_Workspace > & theWorkspace ) const

pure virtual

Implemented in OpenGl_Aspects, OpenGl_BackgroundArray, OpenGl_Flipper, OpenGl_FrameStatsPrs, OpenGl_GraduatedTrihedron, OpenGl_PrimitiveArray, OpenGl_StencilTest, and OpenGl_Text.

SynchronizeAspects()

virtual void OpenGl_Element::SynchronizeAspects ( )

inlinevirtual

Update parameters of the drawable elements.

Reimplemented in OpenGl_Aspects.

UpdateDrawStats()

virtual void OpenGl_Element::UpdateDrawStats ( Graphic3d_FrameStatsDataTmp & theStats, bool theIsDetailed ) const

virtual

Increment draw calls statistics.

Parameters

[in]

out] theStats frame counters to increment

Parameters

[in]

theIsDetailed

indicate detailed dump (more counters - number of triangles, points, etc.)

Reimplemented in OpenGl_PrimitiveArray, and OpenGl_Text.

UpdateMemStats()

virtual void OpenGl_Element::UpdateMemStats ( Graphic3d_FrameStatsDataTmp & theStats ) const

virtual

Increment memory usage statistics. Default implementation puts EstimatedDataSize() into Graphic3d_FrameStatsCounter_EstimatedBytesGeom.

---

The documentation for this class was generated from the following file:

• OpenGl_Element.hxx
