Divides a Face (both edges in the wires, by splitting curves and pcurves, and the face itself, by splitting supporting surface) according to splitting criteria. More...

#include <ShapeUpgrade_FaceDivide.hxx>

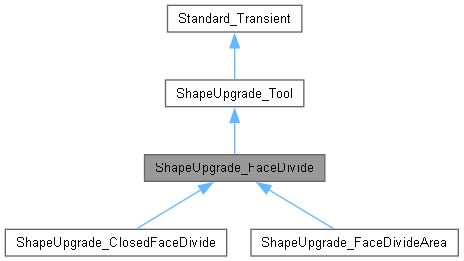

Inheritance diagram for ShapeUpgrade_FaceDivide:

[legend]

Public Member Functions
	ShapeUpgrade_FaceDivide ()
	Creates empty constructor.

	ShapeUpgrade_FaceDivide (const TopoDS_Face &F)
	Initialize by a Face.

void	Init (const TopoDS_Face &F)
	Initialize by a Face.

void	SetSurfaceSegmentMode (const bool Segment)
	Purpose sets mode for trimming (segment) surface by wire UV bounds.

virtual bool	Perform (const double theArea=0.)
	Performs splitting and computes the resulting shell The context is used to keep track of former splittings in order to keep sharings. It is updated according to modifications made. The optional argument <theArea> is used to initialize the tool for splitting surface in the case of splitting into N parts where N is user-defined.

virtual bool	SplitSurface (const double theArea=0.)
	Performs splitting of surface and computes the shell from source face. The optional argument <theArea> is used to initialize the tool for splitting surface in the case of splitting into N parts where N is user-defined.

virtual bool	SplitCurves ()
	Performs splitting of curves of all the edges in the shape and divides these edges.

TopoDS_Shape	Result () const
	Gives the resulting Shell, or Face, or Null shape if not done.

bool	Status (const ShapeExtend_Status status) const
	Queries the status of last call to Perform OK : no splitting was done (or no call to Perform) DONE1: some edges were split DONE2: surface was split DONE3: surface was modified without splitting FAIL1: some fails encountered during splitting wires FAIL2: face cannot be split.

void	SetSplitSurfaceTool (const occ::handle< ShapeUpgrade_SplitSurface > &splitSurfaceTool)
	Sets the tool for splitting surfaces.

void	SetWireDivideTool (const occ::handle< ShapeUpgrade_WireDivide > &wireDivideTool)
	Sets the tool for dividing edges on Face.

virtual occ::handle< ShapeUpgrade_SplitSurface >	GetSplitSurfaceTool () const
	Returns the tool for splitting surfaces. This tool must be already initialized.

virtual occ::handle< ShapeUpgrade_WireDivide >	GetWireDivideTool () const
	Returns the tool for dividing edges on Face. This tool must be already initialized.

Public Member Functions inherited from ShapeUpgrade_Tool
	ShapeUpgrade_Tool ()
	Empty constructor.

void	Set (const occ::handle< ShapeUpgrade_Tool > &tool)
	Copy all fields from another Root object.

void	SetContext (const occ::handle< ShapeBuild_ReShape > &context)
	Sets context.

occ::handle< ShapeBuild_ReShape >	Context () const
	Returns context.

void	SetPrecision (const double preci)
	Sets basic precision value.

double	Precision () const
	Returns basic precision value.

void	SetMinTolerance (const double mintol)
	Sets minimal allowed tolerance.

double	MinTolerance () const
	Returns minimal allowed tolerance.

void	SetMaxTolerance (const double maxtol)
	Sets maximal allowed tolerance.

double	MaxTolerance () const
	Returns maximal allowed tolerance.

double	LimitTolerance (const double toler) const
	Returns tolerance limited by [myMinTol,myMaxTol].

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Attributes
TopoDS_Face	myFace

TopoDS_Shape	myResult

bool	mySegmentMode

int	myStatus

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Divides a Face (both edges in the wires, by splitting curves and pcurves, and the face itself, by splitting supporting surface) according to splitting criteria.

The domain of the face to divide is defined by the PCurves of the wires on the Face.
all the PCurves are supposed to be defined (in the parametric space of the supporting surface).

The result is available after the call to the Build method. It is a Shell containing all the resulting Faces.

All the modifications made during splitting are recorded in the external context (ShapeBuild_ReShape).

Constructor & Destructor Documentation

◆ ShapeUpgrade_FaceDivide() [1/2]

ShapeUpgrade_FaceDivide::ShapeUpgrade_FaceDivide ( )

Creates empty constructor.

◆ ShapeUpgrade_FaceDivide() [2/2]

ShapeUpgrade_FaceDivide::ShapeUpgrade_FaceDivide ( const TopoDS_Face & F )

Initialize by a Face.

Member Function Documentation

◆ GetSplitSurfaceTool()

virtual occ::handle< ShapeUpgrade_SplitSurface > ShapeUpgrade_FaceDivide::GetSplitSurfaceTool ( ) const

virtual

Returns the tool for splitting surfaces. This tool must be already initialized.

◆ GetWireDivideTool()

virtual occ::handle< ShapeUpgrade_WireDivide > ShapeUpgrade_FaceDivide::GetWireDivideTool ( ) const

virtual

Returns the tool for dividing edges on Face. This tool must be already initialized.

◆ Init()

void ShapeUpgrade_FaceDivide::Init ( const TopoDS_Face & F )

Initialize by a Face.

◆ Perform()

virtual bool ShapeUpgrade_FaceDivide::Perform ( const double theArea = 0. )

virtual

Performs splitting and computes the resulting shell The context is used to keep track of former splittings in order to keep sharings. It is updated according to modifications made. The optional argument <theArea> is used to initialize the tool for splitting surface in the case of splitting into N parts where N is user-defined.

Reimplemented in ShapeUpgrade_FaceDivideArea.

◆ Result()

TopoDS_Shape ShapeUpgrade_FaceDivide::Result ( ) const

Gives the resulting Shell, or Face, or Null shape if not done.

◆ SetSplitSurfaceTool()

void ShapeUpgrade_FaceDivide::SetSplitSurfaceTool ( const occ::handle< ShapeUpgrade_SplitSurface > & splitSurfaceTool )

Sets the tool for splitting surfaces.

◆ SetSurfaceSegmentMode()

void ShapeUpgrade_FaceDivide::SetSurfaceSegmentMode ( const bool Segment )

Purpose sets mode for trimming (segment) surface by wire UV bounds.

◆ SetWireDivideTool()

void ShapeUpgrade_FaceDivide::SetWireDivideTool ( const occ::handle< ShapeUpgrade_WireDivide > & wireDivideTool )

Sets the tool for dividing edges on Face.

◆ SplitCurves()

virtual bool ShapeUpgrade_FaceDivide::SplitCurves ( )

virtual

Performs splitting of curves of all the edges in the shape and divides these edges.

◆ SplitSurface()

virtual bool ShapeUpgrade_FaceDivide::SplitSurface ( const double theArea = 0. )

virtual

Performs splitting of surface and computes the shell from source face. The optional argument <theArea> is used to initialize the tool for splitting surface in the case of splitting into N parts where N is user-defined.

Reimplemented in ShapeUpgrade_ClosedFaceDivide.

◆ Status()

bool ShapeUpgrade_FaceDivide::Status ( const ShapeExtend_Status status ) const

Queries the status of last call to Perform OK : no splitting was done (or no call to Perform) DONE1: some edges were split DONE2: surface was split DONE3: surface was modified without splitting FAIL1: some fails encountered during splitting wires FAIL2: face cannot be split.

Field Documentation

◆ myFace

TopoDS_Face ShapeUpgrade_FaceDivide::myFace

protected

◆ myResult

TopoDS_Shape ShapeUpgrade_FaceDivide::myResult

protected

◆ mySegmentMode

bool ShapeUpgrade_FaceDivide::mySegmentMode

protected

◆ myStatus

int ShapeUpgrade_FaceDivide::myStatus

protected

The documentation for this class was generated from the following file:

ShapeUpgrade_FaceDivide.hxx
