#include <StepGeom_BoundaryCurve.hxx>

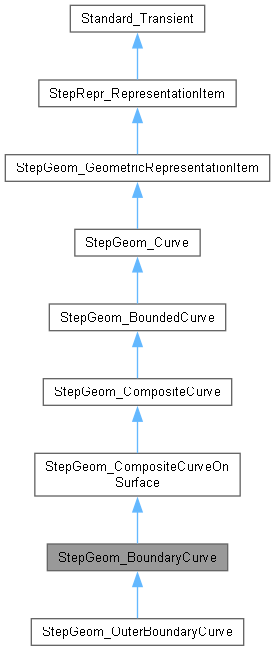

Inheritance diagram for StepGeom_BoundaryCurve:

[legend]

Public Member Functions
	StepGeom_BoundaryCurve ()
	Returns a BoundaryCurve.

Public Member Functions inherited from StepGeom_CompositeCurveOnSurface
	StepGeom_CompositeCurveOnSurface ()
	Returns a CompositeCurveOnSurface.

Public Member Functions inherited from StepGeom_CompositeCurve
	StepGeom_CompositeCurve ()
	Returns a CompositeCurve.

void	Init (const Handle< TCollection_HAsciiString > &aName, const Handle< StepGeom_HArray1OfCompositeCurveSegment > &aSegments, const StepData_Logical aSelfIntersect)

void	SetSegments (const Handle< StepGeom_HArray1OfCompositeCurveSegment > &aSegments)

Handle< StepGeom_HArray1OfCompositeCurveSegment >	Segments () const

Handle< StepGeom_CompositeCurveSegment >	SegmentsValue (const Standard_Integer num) const

Standard_Integer	NbSegments () const

void	SetSelfIntersect (const StepData_Logical aSelfIntersect)

StepData_Logical	SelfIntersect () const

Public Member Functions inherited from StepGeom_BoundedCurve
	StepGeom_BoundedCurve ()
	Returns a BoundedCurve.

Public Member Functions inherited from StepGeom_Curve
	StepGeom_Curve ()
	Returns a Curve.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Constructor & Destructor Documentation

◆ StepGeom_BoundaryCurve()

StepGeom_BoundaryCurve::StepGeom_BoundaryCurve ( )

Returns a BoundaryCurve.

The documentation for this class was generated from the following file:

StepGeom_BoundaryCurve.hxx
