1.13.2 #include <StepGeom_SphericalSurface.hxx>
Public Member Functions | |
| StepGeom_SphericalSurface () | |
| Returns a SphericalSurface. | |
| void | Init (const Handle< TCollection_HAsciiString > &aName, const Handle< StepGeom_Axis2Placement3d > &aPosition, const Standard_Real aRadius) |
| void | SetRadius (const Standard_Real aRadius) |
| Standard_Real | Radius () const |

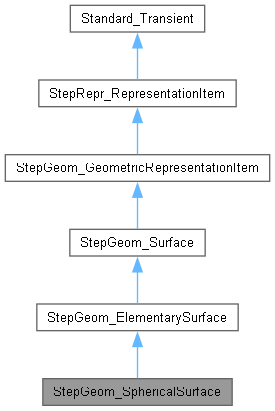

 Public Member Functions inherited from StepGeom_ElementarySurface | |
| StepGeom_ElementarySurface () | |
| Returns a ElementarySurface. | |
| void | Init (const Handle< TCollection_HAsciiString > &aName, const Handle< StepGeom_Axis2Placement3d > &aPosition) |
| void | SetPosition (const Handle< StepGeom_Axis2Placement3d > &aPosition) |
| Handle< StepGeom_Axis2Placement3d > | Position () const |
| Public Member Functions inherited from StepGeom_Surface | |
| StepGeom_Surface () | |
| Returns a Surface. | |
| Public Member Functions inherited from StepGeom_GeometricRepresentationItem | |
| StepGeom_GeometricRepresentationItem () | |
| Returns a GeometricRepresentationItem. | |
| Public Member Functions inherited from StepRepr_RepresentationItem | |
| StepRepr_RepresentationItem () | |
| Returns a RepresentationItem. | |
| void | Init (const Handle< TCollection_HAsciiString > &aName) |
| void | SetName (const Handle< TCollection_HAsciiString > &aName) |
| Handle< TCollection_HAsciiString > | Name () const |
| Public Member Functions inherited from Standard_Transient | |
| Standard_Transient () | |
| Empty constructor. | |
| Standard_Transient (const Standard_Transient &) | |
| Copy constructor – does nothing. | |
| Standard_Transient & | operator= (const Standard_Transient &) |
| Assignment operator, needed to avoid copying reference counter. | |
| virtual | ~Standard_Transient () |
| Destructor must be virtual. | |
| virtual const opencascade::handle< Standard_Type > & | DynamicType () const |
| Returns a type descriptor about this object. | |
| Standard_Boolean | IsInstance (const opencascade::handle< Standard_Type > &theType) const |
| Returns a true value if this is an instance of Type. | |
| Standard_Boolean | IsInstance (const Standard_CString theTypeName) const |
| Returns a true value if this is an instance of TypeName. | |
| Standard_Boolean | IsKind (const opencascade::handle< Standard_Type > &theType) const |
| Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. | |
| Standard_Boolean | IsKind (const Standard_CString theTypeName) const |
| Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. | |
| Standard_Transient * | This () const |
| Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. | |
| Standard_Integer | GetRefCount () const noexcept |
| Get the reference counter of this object. | |
| void | IncrementRefCounter () noexcept |
| Increments the reference counter of this object. | |
| Standard_Integer | DecrementRefCounter () noexcept |
| Decrements the reference counter of this object; returns the decremented value. | |
| virtual void | Delete () const |
| Memory deallocator for transient classes. | |
Additional Inherited Members | |
| typedef void | base_type |
| Returns a type descriptor about this object. | |
| static constexpr const char * | get_type_name () |
| Returns a type descriptor about this object. | |
| static const opencascade::handle< Standard_Type > & | get_type_descriptor () |
| Returns type descriptor of Standard_Transient class. | |
| StepGeom_SphericalSurface::StepGeom_SphericalSurface | ( | ) |
Returns a SphericalSurface.
| void StepGeom_SphericalSurface::Init | ( | const Handle< TCollection_HAsciiString > & | aName, |
| const Handle< StepGeom_Axis2Placement3d > & | aPosition, | ||
| const Standard_Real | aRadius ) |
| Standard_Real StepGeom_SphericalSurface::Radius | ( | ) | const |
| void StepGeom_SphericalSurface::SetRadius | ( | const Standard_Real | aRadius | ) |
