Representation of STEP entity PlanarPairValue. More...

#include <StepKinematics_PlanarPairValue.hxx>

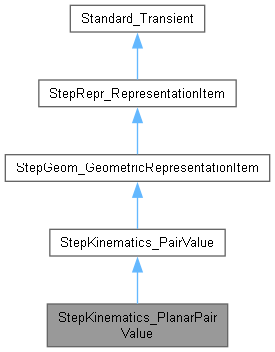

Inheritance diagram for StepKinematics_PlanarPairValue:

[legend]

Public Member Functions
	StepKinematics_PlanarPairValue ()
	default constructor

void	Init (const occ::handle< TCollection_HAsciiString > &theRepresentationItem_Name, const occ::handle< StepKinematics_KinematicPair > &thePairValue_AppliesToPair, const double theActualRotation, const double theActualTranslationX, const double theActualTranslationY)
	Initialize all fields (own and inherited)

double	ActualRotation () const
	Returns field ActualRotation.

void	SetActualRotation (const double theActualRotation)
	Sets field ActualRotation.

double	ActualTranslationX () const
	Returns field ActualTranslationX.

void	SetActualTranslationX (const double theActualTranslationX)
	Sets field ActualTranslationX.

double	ActualTranslationY () const
	Returns field ActualTranslationY.

void	SetActualTranslationY (const double theActualTranslationY)
	Sets field ActualTranslationY.

Public Member Functions inherited from StepKinematics_PairValue
	StepKinematics_PairValue ()
	default constructor

void	Init (const occ::handle< TCollection_HAsciiString > &theRepresentationItem_Name, const occ::handle< StepKinematics_KinematicPair > &theAppliesToPair)
	Initialize all fields (own and inherited)

occ::handle< StepKinematics_KinematicPair >	AppliesToPair () const
	Returns field AppliesToPair.

void	SetAppliesToPair (const occ::handle< StepKinematics_KinematicPair > &theAppliesToPair)
	Sets field AppliesToPair.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const occ::handle< TCollection_HAsciiString > &aName)

void	SetName (const occ::handle< TCollection_HAsciiString > &aName)

occ::handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity PlanarPairValue.

Constructor & Destructor Documentation

◆ StepKinematics_PlanarPairValue()

StepKinematics_PlanarPairValue::StepKinematics_PlanarPairValue ( )

default constructor

Member Function Documentation

◆ ActualRotation()

double StepKinematics_PlanarPairValue::ActualRotation ( ) const

Returns field ActualRotation.

◆ ActualTranslationX()

double StepKinematics_PlanarPairValue::ActualTranslationX ( ) const

Returns field ActualTranslationX.

◆ ActualTranslationY()

double StepKinematics_PlanarPairValue::ActualTranslationY ( ) const

Returns field ActualTranslationY.

◆ Init()

void StepKinematics_PlanarPairValue::Init	(	const occ::handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const occ::handle< StepKinematics_KinematicPair > &	thePairValue_AppliesToPair,
		const double	theActualRotation,
		const double	theActualTranslationX,
		const double	theActualTranslationY )

Initialize all fields (own and inherited)

◆ SetActualRotation()

void StepKinematics_PlanarPairValue::SetActualRotation ( const double theActualRotation )

Sets field ActualRotation.

◆ SetActualTranslationX()

void StepKinematics_PlanarPairValue::SetActualTranslationX ( const double theActualTranslationX )

Sets field ActualTranslationX.

◆ SetActualTranslationY()

void StepKinematics_PlanarPairValue::SetActualTranslationY ( const double theActualTranslationY )

Sets field ActualTranslationY.

The documentation for this class was generated from the following file:

StepKinematics_PlanarPairValue.hxx
