Representation of STEP entity SpecifiedHigherUsageOccurrence. More...

#include <StepRepr_SpecifiedHigherUsageOccurrence.hxx>

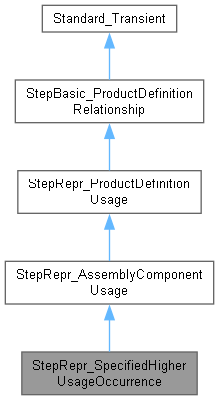

Inheritance diagram for StepRepr_SpecifiedHigherUsageOccurrence:

[legend]

Public Member Functions
	StepRepr_SpecifiedHigherUsageOccurrence ()
	Empty constructor.

void	Init (const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Id, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Name, const Standard_Boolean hasProductDefinitionRelationship_Description, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Description, const Handle< StepBasic_ProductDefinition > &aProductDefinitionRelationship_RelatingProductDefinition, const Handle< StepBasic_ProductDefinition > &aProductDefinitionRelationship_RelatedProductDefinition, const Standard_Boolean hasAssemblyComponentUsage_ReferenceDesignator, const Handle< TCollection_HAsciiString > &aAssemblyComponentUsage_ReferenceDesignator, const Handle< StepRepr_AssemblyComponentUsage > &aUpperUsage, const Handle< StepRepr_NextAssemblyUsageOccurrence > &aNextUsage)
	Initialize all fields (own and inherited)

void	Init (const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Id, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Name, const Standard_Boolean hasProductDefinitionRelationship_Description, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Description, const StepBasic_ProductDefinitionOrReference &aProductDefinitionRelationship_RelatingProductDefinition, const StepBasic_ProductDefinitionOrReference &aProductDefinitionRelationship_RelatedProductDefinition, const Standard_Boolean hasAssemblyComponentUsage_ReferenceDesignator, const Handle< TCollection_HAsciiString > &aAssemblyComponentUsage_ReferenceDesignator, const Handle< StepRepr_AssemblyComponentUsage > &aUpperUsage, const Handle< StepRepr_NextAssemblyUsageOccurrence > &aNextUsage)
	Initialize all fields (own and inherited)

Handle< StepRepr_AssemblyComponentUsage >	UpperUsage () const
	Returns field UpperUsage.

void	SetUpperUsage (const Handle< StepRepr_AssemblyComponentUsage > &UpperUsage)
	Set field UpperUsage.

Handle< StepRepr_NextAssemblyUsageOccurrence >	NextUsage () const
	Returns field NextUsage.

void	SetNextUsage (const Handle< StepRepr_NextAssemblyUsageOccurrence > &NextUsage)
	Set field NextUsage.

Public Member Functions inherited from StepRepr_AssemblyComponentUsage
	StepRepr_AssemblyComponentUsage ()
	Empty constructor.

void	Init (const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Id, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Name, const Standard_Boolean hasProductDefinitionRelationship_Description, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Description, const Handle< StepBasic_ProductDefinition > &aProductDefinitionRelationship_RelatingProductDefinition, const Handle< StepBasic_ProductDefinition > &aProductDefinitionRelationship_RelatedProductDefinition, const Standard_Boolean hasReferenceDesignator, const Handle< TCollection_HAsciiString > &aReferenceDesignator)
	Initialize all fields (own and inherited)

void	Init (const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Id, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Name, const Standard_Boolean hasProductDefinitionRelationship_Description, const Handle< TCollection_HAsciiString > &aProductDefinitionRelationship_Description, const StepBasic_ProductDefinitionOrReference &aProductDefinitionRelationship_RelatingProductDefinition, const StepBasic_ProductDefinitionOrReference &aProductDefinitionRelationship_RelatedProductDefinition, const Standard_Boolean hasReferenceDesignator, const Handle< TCollection_HAsciiString > &aReferenceDesignator)
	Initialize all fields (own and inherited)

Handle< TCollection_HAsciiString >	ReferenceDesignator () const
	Returns field ReferenceDesignator.

void	SetReferenceDesignator (const Handle< TCollection_HAsciiString > &ReferenceDesignator)
	Set field ReferenceDesignator.

Standard_Boolean	HasReferenceDesignator () const
	Returns True if optional field ReferenceDesignator is defined.

Public Member Functions inherited from StepRepr_ProductDefinitionUsage
	StepRepr_ProductDefinitionUsage ()
	Empty constructor.

Public Member Functions inherited from StepBasic_ProductDefinitionRelationship
	StepBasic_ProductDefinitionRelationship ()
	Empty constructor.

void	Init (const Handle< TCollection_HAsciiString > &aId, const Handle< TCollection_HAsciiString > &aName, const Standard_Boolean hasDescription, const Handle< TCollection_HAsciiString > &aDescription, const Handle< StepBasic_ProductDefinition > &aRelatingProductDefinition, const Handle< StepBasic_ProductDefinition > &aRelatedProductDefinition)
	Initialize all fields (own and inherited)

void	Init (const Handle< TCollection_HAsciiString > &aId, const Handle< TCollection_HAsciiString > &aName, const Standard_Boolean hasDescription, const Handle< TCollection_HAsciiString > &aDescription, const StepBasic_ProductDefinitionOrReference &aRelatingProductDefinition, const StepBasic_ProductDefinitionOrReference &aRelatedProductDefinition)
	Initialize all fields (own and inherited)

Handle< TCollection_HAsciiString >	Id () const
	Returns field Id.

void	SetId (const Handle< TCollection_HAsciiString > &Id)
	Set field Id.

Handle< TCollection_HAsciiString >	Name () const
	Returns field Name.

void	SetName (const Handle< TCollection_HAsciiString > &Name)
	Set field Name.

Handle< TCollection_HAsciiString >	Description () const
	Returns field Description.

void	SetDescription (const Handle< TCollection_HAsciiString > &Description)
	Set field Description.

Standard_Boolean	HasDescription () const
	Returns True if optional field Description is defined.

Handle< StepBasic_ProductDefinition >	RelatingProductDefinition () const
	Returns field RelatingProductDefinition.

StepBasic_ProductDefinitionOrReference	RelatingProductDefinitionAP242 () const
	Returns field RelatingProductDefinition in AP242.

void	SetRelatingProductDefinition (const Handle< StepBasic_ProductDefinition > &RelatingProductDefinition)
	Set field RelatingProductDefinition.

void	SetRelatingProductDefinition (const StepBasic_ProductDefinitionOrReference &RelatingProductDefinition)
	Set field RelatingProductDefinition in AP242.

Handle< StepBasic_ProductDefinition >	RelatedProductDefinition () const
	Returns field RelatedProductDefinition.

StepBasic_ProductDefinitionOrReference	RelatedProductDefinitionAP242 () const
	Returns field RelatedProductDefinition in AP242.

void	SetRelatedProductDefinition (const Handle< StepBasic_ProductDefinition > &RelatedProductDefinition)
	Set field RelatedProductDefinition.

void	SetRelatedProductDefinition (const StepBasic_ProductDefinitionOrReference &RelatedProductDefinition)
	Set field RelatedProductDefinition in AP242.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity SpecifiedHigherUsageOccurrence.

Constructor & Destructor Documentation

◆ StepRepr_SpecifiedHigherUsageOccurrence()

StepRepr_SpecifiedHigherUsageOccurrence::StepRepr_SpecifiedHigherUsageOccurrence ( )

Empty constructor.

Member Function Documentation

◆ Init() [1/2]

void StepRepr_SpecifiedHigherUsageOccurrence::Init	(	const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Id,
		const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Name,
		const Standard_Boolean	hasProductDefinitionRelationship_Description,
		const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Description,
		const Handle< StepBasic_ProductDefinition > &	aProductDefinitionRelationship_RelatingProductDefinition,
		const Handle< StepBasic_ProductDefinition > &	aProductDefinitionRelationship_RelatedProductDefinition,
		const Standard_Boolean	hasAssemblyComponentUsage_ReferenceDesignator,
		const Handle< TCollection_HAsciiString > &	aAssemblyComponentUsage_ReferenceDesignator,
		const Handle< StepRepr_AssemblyComponentUsage > &	aUpperUsage,
		const Handle< StepRepr_NextAssemblyUsageOccurrence > &	aNextUsage )

Initialize all fields (own and inherited)

◆ Init() [2/2]

void StepRepr_SpecifiedHigherUsageOccurrence::Init	(	const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Id,
		const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Name,
		const Standard_Boolean	hasProductDefinitionRelationship_Description,
		const Handle< TCollection_HAsciiString > &	aProductDefinitionRelationship_Description,
		const StepBasic_ProductDefinitionOrReference &	aProductDefinitionRelationship_RelatingProductDefinition,
		const StepBasic_ProductDefinitionOrReference &	aProductDefinitionRelationship_RelatedProductDefinition,
		const Standard_Boolean	hasAssemblyComponentUsage_ReferenceDesignator,
		const Handle< TCollection_HAsciiString > &	aAssemblyComponentUsage_ReferenceDesignator,
		const Handle< StepRepr_AssemblyComponentUsage > &	aUpperUsage,
		const Handle< StepRepr_NextAssemblyUsageOccurrence > &	aNextUsage )

Initialize all fields (own and inherited)

◆ NextUsage()

Handle< StepRepr_NextAssemblyUsageOccurrence > StepRepr_SpecifiedHigherUsageOccurrence::NextUsage ( ) const

Returns field NextUsage.

◆ SetNextUsage()

void StepRepr_SpecifiedHigherUsageOccurrence::SetNextUsage ( const Handle< StepRepr_NextAssemblyUsageOccurrence > & NextUsage )

Set field NextUsage.

◆ SetUpperUsage()

void StepRepr_SpecifiedHigherUsageOccurrence::SetUpperUsage ( const Handle< StepRepr_AssemblyComponentUsage > & UpperUsage )

Set field UpperUsage.

◆ UpperUsage()

Handle< StepRepr_AssemblyComponentUsage > StepRepr_SpecifiedHigherUsageOccurrence::UpperUsage ( ) const

Returns field UpperUsage.

The documentation for this class was generated from the following file:

StepRepr_SpecifiedHigherUsageOccurrence.hxx
