Representation of STEP entity TessellatedFace. More...

#include <StepVisual_TessellatedFace.hxx>

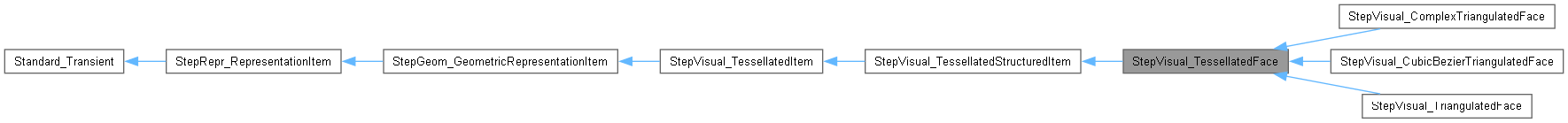

Inheritance diagram for StepVisual_TessellatedFace:

[legend]

Public Member Functions
	StepVisual_TessellatedFace ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theCoordinates, const Standard_Integer thePnmax, const Handle< TColStd_HArray2OfReal > &theNormals, const Standard_Boolean theHasGeometricLink, const StepVisual_FaceOrSurface &theGeometricLink)
	Initialize all fields (own and inherited)

Handle< StepVisual_CoordinatesList >	Coordinates () const
	Returns field Coordinates.

void	SetCoordinates (const Handle< StepVisual_CoordinatesList > &theCoordinates)
	Sets field Coordinates.

Standard_Integer	Pnmax () const
	Returns field Pnmax.

void	SetPnmax (const Standard_Integer thePnmax)
	Sets field Pnmax.

Handle< TColStd_HArray2OfReal >	Normals () const
	Returns field Normals.

void	SetNormals (const Handle< TColStd_HArray2OfReal > &theNormals)
	Sets field Normals.

Standard_Integer	NbNormals () const
	Returns number of Normals.

StepVisual_FaceOrSurface	GeometricLink () const
	Returns field GeometricLink.

void	SetGeometricLink (const StepVisual_FaceOrSurface &theGeometricLink)
	Sets field GeometricLink.

Standard_Boolean	HasGeometricLink () const
	Returns True if optional field GeometricLink is defined.

Public Member Functions inherited from StepVisual_TessellatedStructuredItem
	StepVisual_TessellatedStructuredItem ()
	default constructor

Public Member Functions inherited from StepVisual_TessellatedItem
	StepVisual_TessellatedItem ()
	Returns a DraughtingCalloutElement select type.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity TessellatedFace.

Constructor & Destructor Documentation

◆ StepVisual_TessellatedFace()

StepVisual_TessellatedFace::StepVisual_TessellatedFace ( )

default constructor

Member Function Documentation

◆ Coordinates()

Handle< StepVisual_CoordinatesList > StepVisual_TessellatedFace::Coordinates ( ) const

Returns field Coordinates.

◆ GeometricLink()

StepVisual_FaceOrSurface StepVisual_TessellatedFace::GeometricLink ( ) const

Returns field GeometricLink.

◆ HasGeometricLink()

Standard_Boolean StepVisual_TessellatedFace::HasGeometricLink ( ) const

Returns True if optional field GeometricLink is defined.

◆ Init()

void StepVisual_TessellatedFace::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< StepVisual_CoordinatesList > &	theCoordinates,
		const Standard_Integer	thePnmax,
		const Handle< TColStd_HArray2OfReal > &	theNormals,
		const Standard_Boolean	theHasGeometricLink,
		const StepVisual_FaceOrSurface &	theGeometricLink )

Initialize all fields (own and inherited)

◆ NbNormals()

Standard_Integer StepVisual_TessellatedFace::NbNormals ( ) const

Returns number of Normals.

◆ Normals()

Handle< TColStd_HArray2OfReal > StepVisual_TessellatedFace::Normals ( ) const

Returns field Normals.

◆ Pnmax()

Standard_Integer StepVisual_TessellatedFace::Pnmax ( ) const

Returns field Pnmax.

◆ SetCoordinates()

void StepVisual_TessellatedFace::SetCoordinates ( const Handle< StepVisual_CoordinatesList > & theCoordinates )

Sets field Coordinates.

◆ SetGeometricLink()

void StepVisual_TessellatedFace::SetGeometricLink ( const StepVisual_FaceOrSurface & theGeometricLink )

Sets field GeometricLink.

◆ SetNormals()

void StepVisual_TessellatedFace::SetNormals ( const Handle< TColStd_HArray2OfReal > & theNormals )

Sets field Normals.

◆ SetPnmax()

void StepVisual_TessellatedFace::SetPnmax ( const Standard_Integer thePnmax )

Sets field Pnmax.

The documentation for this class was generated from the following file:

StepVisual_TessellatedFace.hxx
