StepVisual_TriangulatedSurfaceSet Class Reference

Representation of STEP entity TriangulatedSurfaceSet. More...

#include <StepVisual_TriangulatedSurfaceSet.hxx>

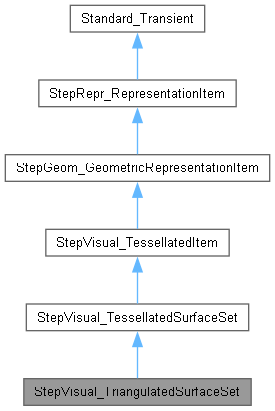

Inheritance diagram for StepVisual_TriangulatedSurfaceSet:

Public Member Functions
	StepVisual_TriangulatedSurfaceSet ()
	default constructor
void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItemName, const Handle< StepVisual_CoordinatesList > &theTessellatedFaceCoordinates, const Standard_Integer theTessellatedFacePnmax, const Handle< TColStd_HArray2OfReal > &theTessellatedFaceNormals, const Handle< TColStd_HArray1OfInteger > &thePnindex, const Handle< TColStd_HArray2OfInteger > &theTriangles)
	Initialize all fields (own and inherited)
const Handle< TColStd_HArray1OfInteger >	Pnindex () const
	Returns field Pnindex.
void	SetPnindex (const Handle< TColStd_HArray1OfInteger > &thePnindex)
	Sets field Pnindex.
Standard_Integer	NbPnindex () const
	Returns number of Pnindex.
Standard_Integer	PnindexValue (const Standard_Integer theNum) const
	Returns value of Pnindex by its num.
const Handle< TColStd_HArray2OfInteger >	Triangles () const
	Returns field Triangles.
void	SetTriangles (const Handle< TColStd_HArray2OfInteger > &theTriangles)
	Sets field Triangles.
Standard_Integer	NbTriangles () const
	Returns number of Triangles.
Public Member Functions inherited from StepVisual_TessellatedSurfaceSet
	StepVisual_TessellatedSurfaceSet ()
	default constructor
void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theCoordinates, const Standard_Integer thePnmax, const Handle< TColStd_HArray2OfReal > &theNormals)
	Initialize all fields (own and inherited)
Handle< StepVisual_CoordinatesList >	Coordinates () const
	Returns field Coordinates.
void	SetCoordinates (const Handle< StepVisual_CoordinatesList > &theCoordinates)
	Sets field Coordinates.
Standard_Integer	Pnmax () const
	Returns field Pnmax.
void	SetPnmax (const Standard_Integer thePnmax)
	Sets field Pnmax.
Handle< TColStd_HArray2OfReal >	Normals () const
	Returns field Normals.
void	SetNormals (const Handle< TColStd_HArray2OfReal > &theNormals)
	Sets field Normals.
Standard_Integer	NbNormals () const
	Returns number of Normals.
Public Member Functions inherited from StepVisual_TessellatedItem
	StepVisual_TessellatedItem ()
	Returns a DraughtingCalloutElement select type.
Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.
Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.
void	Init (const Handle< TCollection_HAsciiString > &aName)
void	SetName (const Handle< TCollection_HAsciiString > &aName)
Handle< TCollection_HAsciiString >	Name () const
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.
Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.
Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.
virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity TriangulatedSurfaceSet.

Constructor & Destructor Documentation

StepVisual_TriangulatedSurfaceSet()

StepVisual_TriangulatedSurfaceSet::StepVisual_TriangulatedSurfaceSet

(

)

default constructor

Member Function Documentation

Init()

void StepVisual_TriangulatedSurfaceSet::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItemName,
		const Handle< StepVisual_CoordinatesList > &	theTessellatedFaceCoordinates,
		const Standard_Integer	theTessellatedFacePnmax,
		const Handle< TColStd_HArray2OfReal > &	theTessellatedFaceNormals,
		const Handle< TColStd_HArray1OfInteger > &	thePnindex,
		const Handle< TColStd_HArray2OfInteger > &	theTriangles )

Initialize all fields (own and inherited)

NbPnindex()

Standard_Integer StepVisual_TriangulatedSurfaceSet::NbPnindex

(

)

const

Returns number of Pnindex.

NbTriangles()

Standard_Integer StepVisual_TriangulatedSurfaceSet::NbTriangles

(

)

const

Returns number of Triangles.

Pnindex()

const Handle< TColStd_HArray1OfInteger > StepVisual_TriangulatedSurfaceSet::Pnindex ( ) const

inline

Returns field Pnindex.

PnindexValue()

Standard_Integer StepVisual_TriangulatedSurfaceSet::PnindexValue

(

const Standard_Integer

theNum

)

const

Returns value of Pnindex by its num.

SetPnindex()

void StepVisual_TriangulatedSurfaceSet::SetPnindex ( const Handle< TColStd_HArray1OfInteger > & thePnindex )

inline

Sets field Pnindex.

SetTriangles()

void StepVisual_TriangulatedSurfaceSet::SetTriangles ( const Handle< TColStd_HArray2OfInteger > & theTriangles )

inline

Sets field Triangles.

Triangles()

const Handle< TColStd_HArray2OfInteger > StepVisual_TriangulatedSurfaceSet::Triangles ( ) const

inline

Returns field Triangles.

---

The documentation for this class was generated from the following file:

• StepVisual_TriangulatedSurfaceSet.hxx
