Iterate on interferences of a list, matching conditions on interferences. Nota : inheritance of ListIteratorOfListOfInterference from TopOpeBRepDS has not been done because of the impossibility of naming the classical More, Next methods which are declared as static in TCollection_ListIteratorOfList ... . ListIteratorOfList has benn placed as a field of InterferenceIterator. More...

#include <TopOpeBRepDS_InterferenceIterator.hxx>

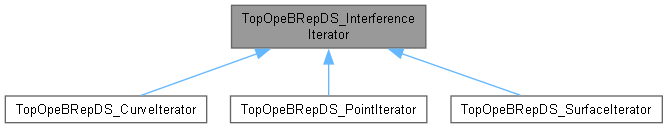

Inheritance diagram for TopOpeBRepDS_InterferenceIterator:

[legend]

Public Member Functions
	TopOpeBRepDS_InterferenceIterator ()

	TopOpeBRepDS_InterferenceIterator (const TopOpeBRepDS_ListOfInterference &L)
	Creates an iterator on the Interference of list <L>.

void	Init (const TopOpeBRepDS_ListOfInterference &L)
	re-initialize interference iteration process on the list of interference <L>. Conditions are not modified.

void	GeometryKind (const TopOpeBRepDS_Kind GK)
	define a condition on interference iteration process. Interference must match the Geometry Kind <ST>

void	Geometry (const Standard_Integer G)
	define a condition on interference iteration process. Interference must match the Geometry <G>

void	SupportKind (const TopOpeBRepDS_Kind ST)
	define a condition on interference iteration process. Interference must match the Support Kind <ST>

void	Support (const Standard_Integer S)
	define a condition on interference iteration process. Interference must match the Support

void	Match ()
	reach for an interference matching the conditions (if defined).

virtual Standard_Boolean	MatchInterference (const Handle< TopOpeBRepDS_Interference > &I) const
	Returns True if the Interference matches the conditions (if defined). If no conditions defined, returns True.

Standard_Boolean	More () const
	Returns True if there is a current Interference in the iteration.

void	Next ()
	Move to the next Interference.

const Handle< TopOpeBRepDS_Interference > &	Value () const
	Returns the current Interference, matching the conditions (if defined).

TopOpeBRepDS_ListIteratorOfListOfInterference &	ChangeIterator ()

Detailed Description

Iterate on interferences of a list, matching conditions on interferences. Nota : inheritance of ListIteratorOfListOfInterference from TopOpeBRepDS has not been done because of the impossibility of naming the classical More, Next methods which are declared as static in TCollection_ListIteratorOfList ... . ListIteratorOfList has benn placed as a field of InterferenceIterator.

Constructor & Destructor Documentation

◆ TopOpeBRepDS_InterferenceIterator() [1/2]

TopOpeBRepDS_InterferenceIterator::TopOpeBRepDS_InterferenceIterator ( )

◆ TopOpeBRepDS_InterferenceIterator() [2/2]

TopOpeBRepDS_InterferenceIterator::TopOpeBRepDS_InterferenceIterator ( const TopOpeBRepDS_ListOfInterference & L )

Creates an iterator on the Interference of list <L>.

Member Function Documentation

◆ ChangeIterator()

TopOpeBRepDS_ListIteratorOfListOfInterference & TopOpeBRepDS_InterferenceIterator::ChangeIterator ( )

◆ Geometry()

void TopOpeBRepDS_InterferenceIterator::Geometry ( const Standard_Integer G )

define a condition on interference iteration process. Interference must match the Geometry <G>

◆ GeometryKind()

void TopOpeBRepDS_InterferenceIterator::GeometryKind ( const TopOpeBRepDS_Kind GK )

define a condition on interference iteration process. Interference must match the Geometry Kind <ST>

◆ Init()

void TopOpeBRepDS_InterferenceIterator::Init ( const TopOpeBRepDS_ListOfInterference & L )

re-initialize interference iteration process on the list of interference <L>. Conditions are not modified.

◆ Match()

void TopOpeBRepDS_InterferenceIterator::Match ( )

reach for an interference matching the conditions (if defined).

◆ MatchInterference()

virtual Standard_Boolean TopOpeBRepDS_InterferenceIterator::MatchInterference ( const Handle< TopOpeBRepDS_Interference > & I ) const

virtual

Returns True if the Interference matches the conditions (if defined). If no conditions defined, returns True.

Reimplemented in TopOpeBRepDS_CurveIterator, and TopOpeBRepDS_PointIterator.

◆ More()

Standard_Boolean TopOpeBRepDS_InterferenceIterator::More ( ) const

Returns True if there is a current Interference in the iteration.

◆ Next()

void TopOpeBRepDS_InterferenceIterator::Next ( )

Move to the next Interference.

◆ Support()

void TopOpeBRepDS_InterferenceIterator::Support ( const Standard_Integer S )

define a condition on interference iteration process. Interference must match the Support

◆ SupportKind()

void TopOpeBRepDS_InterferenceIterator::SupportKind ( const TopOpeBRepDS_Kind ST )

define a condition on interference iteration process. Interference must match the Support Kind <ST>

◆ Value()

const Handle< TopOpeBRepDS_Interference > & TopOpeBRepDS_InterferenceIterator::Value ( ) const

Returns the current Interference, matching the conditions (if defined).

The documentation for this class was generated from the following file:

TopOpeBRepDS_InterferenceIterator.hxx
