A groundwork to convert a shape to data which complies with a particular norm. This data can be that of a whole model or that of a specific list of entities in the model. You specify the list using a single selection or a combination of selections. A selection is an operator which computes a list of entities from a list given in input. To specify the input, you can use: More...

#include <XSControl_Reader.hxx>

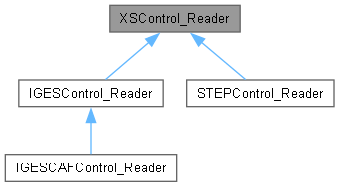

Inheritance diagram for XSControl_Reader:

[legend]

Public Member Functions
	XSControl_Reader ()
	Creates a Reader from scratch (creates an empty WorkSession) A WorkSession or a Controller must be provided before running.

	XSControl_Reader (const char *const norm)
	Creates a Reader from scratch, with a norm name which identifies a Controller.

	XSControl_Reader (const occ::handle< XSControl_WorkSession > &WS, const bool scratch=true)
	Creates a Reader from an already existing Session, with a Controller already set Virtual destructor.

virtual	~XSControl_Reader ()=default
	Empty virtual destructor.

bool	SetNorm (const char *const norm)
	Sets a specific norm to <me> Returns True if done, False if <norm> is not available.

void	SetWS (const occ::handle< XSControl_WorkSession > &WS, const bool scratch=true)
	Sets a specific session to <me>

occ::handle< XSControl_WorkSession >	WS () const
	Returns the session used in <me>

virtual IFSelect_ReturnStatus	ReadFile (const char *const filename)
	Loads a file and returns the read status Zero for a Model which complies with the Controller.

virtual IFSelect_ReturnStatus	ReadStream (const char *const theName, std::istream &theIStream)
	Loads a file from stream and returns the read status.

occ::handle< Interface_InterfaceModel >	Model () const
	Returns the model. It can then be consulted (header, product)

occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > >	GiveList (const char const first="", const char const second="")
	Returns a list of entities from the IGES or STEP file according to the following rules:

occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > >	GiveList (const char *const first, const occ::handle< Standard_Transient > &ent)
	Computes a List of entities from the model as follows <first> being a Selection, <ent> being an entity or a list of entities (as a HSequenceOfTransient) : the standard result of this selection applied to this list if <first> is erroneous, a null handle is returned.

virtual int	NbRootsForTransfer ()
	Determines the list of root entities which are candidate for a transfer to a Shape, and returns the number of entities in the list.

occ::handle< Standard_Transient >	RootForTransfer (const int num=1)
	Returns an IGES or STEP root entity for translation. The entity is identified by its rank in a list.

bool	TransferOneRoot (const int num=1, const Message_ProgressRange &theProgress=Message_ProgressRange())
	Translates a root identified by the rank num in the model. false is returned if no shape is produced.

bool	TransferOne (const int num, const Message_ProgressRange &theProgress=Message_ProgressRange())
	Translates an IGES or STEP entity identified by the rank num in the model. false is returned if no shape is produced.

bool	TransferEntity (const occ::handle< Standard_Transient > &start, const Message_ProgressRange &theProgress=Message_ProgressRange())
	Translates an IGES or STEP entity in the model. true is returned if a shape is produced; otherwise, false is returned.

int	TransferList (const occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > &list, const Message_ProgressRange &theProgress=Message_ProgressRange())
	Translates a list of entities. Returns the number of IGES or STEP entities that were successfully translated. The list can be produced with GiveList. Warning - This function does not clear the existing output shapes.

int	TransferRoots (const Message_ProgressRange &theProgress=Message_ProgressRange())
	Translates all translatable roots and returns the number of successful translations. Warning - This function clears existing output shapes first.

void	ClearShapes ()
	Clears the list of shapes that may have accumulated in calls to TransferOne or TransferRoot.C.

int	NbShapes () const
	Returns the number of shapes produced by translation.

TopoDS_Shape	Shape (const int num=1) const
	Returns the shape resulting from a translation and identified by the rank num. num equals 1 by default. In other words, the first shape resulting from the translation is returned.

TopoDS_Shape	OneShape () const
	Returns all of the results in a single shape which is:

void	PrintCheckLoad (const bool failsonly, const IFSelect_PrintCount mode) const
	Prints the check list attached to loaded data, on the Standard Trace File (starts at std::cout) All messages or fails only, according to <failsonly> mode = 0 : per entity, prints messages mode = 1 : per message, just gives count of entities per check mode = 2 : also gives entity numbers.

void	PrintCheckLoad (Standard_OStream &theStream, const bool failsonly, const IFSelect_PrintCount mode) const
	Prints the check list attached to loaded data.

void	PrintCheckTransfer (const bool failsonly, const IFSelect_PrintCount mode) const
	Displays check results for the last translation of IGES or STEP entities to Open CASCADE entities. Only fail messages are displayed if failsonly is true. All messages are displayed if failsonly is false. mode determines the contents and the order of the messages according to the terms of the IFSelect_PrintCount enumeration.

void	PrintCheckTransfer (Standard_OStream &theStream, const bool failsonly, const IFSelect_PrintCount mode) const
	Displays check results for the last translation of IGES or STEP entities to Open CASCADE entities.

void	PrintStatsTransfer (const int what, const int mode=0) const
	Displays the statistics for the last translation. what defines the kind of statistics that are displayed as follows:

void	PrintStatsTransfer (Standard_OStream &theStream, const int what, const int mode=0) const
	Displays the statistics for the last translation.

void	GetStatsTransfer (const occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > &list, int &nbMapped, int &nbWithResult, int &nbWithFail) const
	Gives statistics about Transfer.

void	SetShapeFixParameters (const XSAlgo_ShapeProcessor::ParameterMap &theParameters)
	Sets parameters for shape processing.

void	SetShapeFixParameters (XSAlgo_ShapeProcessor::ParameterMap &&theParameters)
	Sets parameters for shape processing. Parameters are moved from the input map.

void	SetShapeFixParameters (const DE_ShapeFixParameters &theParameters, const XSAlgo_ShapeProcessor::ParameterMap &theAdditionalParameters={})
	Sets parameters for shape processing. Parameters from `theParameters` are copied to the internal map. Parameters from `theAdditionalParameters` are copied to the internal map if they are not present in `theParameters`.

const XSAlgo_ShapeProcessor::ParameterMap &	GetShapeFixParameters () const
	Returns parameters for shape processing that was set by SetParameters() method.

void	SetShapeProcessFlags (const ShapeProcess::OperationsFlags &theFlags)
	Sets flags defining operations to be performed on shapes.

const XSAlgo_ShapeProcessor::ProcessingFlags &	GetShapeProcessFlags () const
	Returns flags defining operations to be performed on shapes.

Protected Member Functions
NCollection_Sequence< TopoDS_Shape > &	Shapes ()
	Returns a sequence of produced shapes.

virtual DE_ShapeFixParameters	GetDefaultShapeFixParameters () const
	Returns default parameters for shape fixing. This method should be implemented in the derived classes to return default parameters for shape fixing.

virtual ShapeProcess::OperationsFlags	GetDefaultShapeProcessFlags () const
	Returns default flags for shape processing. This method should be implemented in the derived classes to return default flags for shape processing.

Protected Attributes
bool	therootsta

NCollection_Sequence< occ::handle< Standard_Transient > >	theroots

Detailed Description

A groundwork to convert a shape to data which complies with a particular norm. This data can be that of a whole model or that of a specific list of entities in the model. You specify the list using a single selection or a combination of selections. A selection is an operator which computes a list of entities from a list given in input. To specify the input, you can use:

A predefined selection such as "xst-transferrable-roots"
A filter based on a signature. A signature is an operator which returns a string from an entity according to its type. For example:
"xst-type" (CDL)
"iges-level"
"step-type". A filter can be based on a signature by giving a value to be matched by the string returned. For example, "xst-type(Curve)". If no list is specified, the selection computes its list of entities from the whole model. To use this class, you have to initialize the transfer norm first, as shown in the example below. Example: Control_Reader reader; IFSelect_ReturnStatus status = reader.ReadFile (filename.); When using IGESControl_Reader or STEPControl_Reader - as the above example shows - the reader initializes the norm directly. Note that loading the file only stores the data. It does not translate this data. Shapes are accumulated by successive transfers. The last shape is cleared by:
ClearShapes which allows you to handle a new batch
TransferRoots which restarts the list of shapes from scratch.

Constructor & Destructor Documentation

◆ XSControl_Reader() [1/3]

XSControl_Reader::XSControl_Reader ( )

Creates a Reader from scratch (creates an empty WorkSession) A WorkSession or a Controller must be provided before running.

◆ XSControl_Reader() [2/3]

XSControl_Reader::XSControl_Reader ( const char *const norm )

Creates a Reader from scratch, with a norm name which identifies a Controller.

◆ XSControl_Reader() [3/3]

XSControl_Reader::XSControl_Reader	(	const occ::handle< XSControl_WorkSession > &	WS,
		const bool	scratch = true )

Creates a Reader from an already existing Session, with a Controller already set Virtual destructor.

◆ ~XSControl_Reader()

virtual XSControl_Reader::~XSControl_Reader ( )

virtualdefault

Empty virtual destructor.

Member Function Documentation

◆ ClearShapes()

void XSControl_Reader::ClearShapes ( )

Clears the list of shapes that may have accumulated in calls to TransferOne or TransferRoot.C.

◆ GetDefaultShapeFixParameters()

virtual DE_ShapeFixParameters XSControl_Reader::GetDefaultShapeFixParameters ( ) const

inlineprotectedvirtual

Returns default parameters for shape fixing. This method should be implemented in the derived classes to return default parameters for shape fixing.

Returns: Default parameters for shape fixing.

Reimplemented in IGESControl_Reader, and STEPControl_Reader.

◆ GetDefaultShapeProcessFlags()

virtual ShapeProcess::OperationsFlags XSControl_Reader::GetDefaultShapeProcessFlags ( ) const

inlineprotectedvirtual

Returns default flags for shape processing. This method should be implemented in the derived classes to return default flags for shape processing.

Returns: Default flags for shape processing.

Reimplemented in IGESControl_Reader, and STEPControl_Reader.

◆ GetShapeFixParameters()

const XSAlgo_ShapeProcessor::ParameterMap & XSControl_Reader::GetShapeFixParameters ( ) const

Returns parameters for shape processing that was set by SetParameters() method.

Returns: the parameters for shape processing. Empty map if no parameters were set.

◆ GetShapeProcessFlags()

const XSAlgo_ShapeProcessor::ProcessingFlags & XSControl_Reader::GetShapeProcessFlags ( ) const

Returns flags defining operations to be performed on shapes.

Returns: Pair of values defining operations to be performed on shapes and a boolean value that indicates whether the flags were set.

◆ GetStatsTransfer()

void XSControl_Reader::GetStatsTransfer	(	const occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > &	list,
		int &	nbMapped,
		int &	nbWithResult,
		int &	nbWithFail ) const

Gives statistics about Transfer.

◆ GiveList() [1/2]

occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > XSControl_Reader::GiveList	(	const char *const	first,
		const occ::handle< Standard_Transient > &	ent )

Computes a List of entities from the model as follows <first> being a Selection, <ent> being an entity or a list of entities (as a HSequenceOfTransient) : the standard result of this selection applied to this list if <first> is erroneous, a null handle is returned.

◆ GiveList() [2/2]

occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > XSControl_Reader::GiveList	(	const char *const	first = "",
		const char *const	second = "" )

Returns a list of entities from the IGES or STEP file according to the following rules:

if first and second are empty strings, the whole file is selected.
if first is an entity number or label, the entity referred to is selected.
if first is a list of entity numbers/labels separated by commas, the entities referred to are selected,
if first is the name of a selection in the worksession and second is not defined, the list contains the standard output for that selection.
if first is the name of a selection and second is defined, the criterion defined by second is applied to the result of the first selection. A selection is an operator which computes a list of entities from a list given in input according to its type. If no list is specified, the selection computes its list of entities from the whole model. A selection can be:
A predefined selection (xst-transferrable-mode)
A filter based on a signature A Signature is an operator which returns a string from an entity according to its type. For example:
"xst-type" (CDL)
"iges-level"
"step-type". For example, if you wanted to select only the advanced_faces in a STEP file you would use the following code: Example Reader.GiveList("xst-transferrable-roots","step-type(ADVANCED_FACE)"); Warning If the value given to second is incorrect, it will simply be ignored.

◆ Model()

occ::handle< Interface_InterfaceModel > XSControl_Reader::Model ( ) const

Returns the model. It can then be consulted (header, product)

◆ NbRootsForTransfer()

virtual int XSControl_Reader::NbRootsForTransfer ( )

virtual

Determines the list of root entities which are candidate for a transfer to a Shape, and returns the number of entities in the list.

Reimplemented in IGESControl_Reader, and STEPControl_Reader.

◆ NbShapes()

int XSControl_Reader::NbShapes ( ) const

Returns the number of shapes produced by translation.

◆ OneShape()

TopoDS_Shape XSControl_Reader::OneShape ( ) const

Returns all of the results in a single shape which is:

a null shape if there are no results,
a shape if there is one result,
a compound containing the resulting shapes if there are more than one.

◆ PrintCheckLoad() [1/2]

void XSControl_Reader::PrintCheckLoad	(	const bool	failsonly,
		const IFSelect_PrintCount	mode ) const

Prints the check list attached to loaded data, on the Standard Trace File (starts at std::cout) All messages or fails only, according to <failsonly> mode = 0 : per entity, prints messages mode = 1 : per message, just gives count of entities per check mode = 2 : also gives entity numbers.

◆ PrintCheckLoad() [2/2]

void XSControl_Reader::PrintCheckLoad	(	Standard_OStream &	theStream,
		const bool	failsonly,
		const IFSelect_PrintCount	mode ) const

Prints the check list attached to loaded data.

◆ PrintCheckTransfer() [1/2]

void XSControl_Reader::PrintCheckTransfer	(	const bool	failsonly,
		const IFSelect_PrintCount	mode ) const

Displays check results for the last translation of IGES or STEP entities to Open CASCADE entities. Only fail messages are displayed if failsonly is true. All messages are displayed if failsonly is false. mode determines the contents and the order of the messages according to the terms of the IFSelect_PrintCount enumeration.

◆ PrintCheckTransfer() [2/2]

void XSControl_Reader::PrintCheckTransfer	(	Standard_OStream &	theStream,
		const bool	failsonly,
		const IFSelect_PrintCount	mode ) const

Displays check results for the last translation of IGES or STEP entities to Open CASCADE entities.

◆ PrintStatsTransfer() [1/2]

void XSControl_Reader::PrintStatsTransfer	(	const int	what,
		const int	mode = 0 ) const

Displays the statistics for the last translation. what defines the kind of statistics that are displayed as follows:

0 gives general statistics (number of translated roots, number of warnings, number of fail messages),
1 gives root results,
2 gives statistics for all checked entities,
3 gives the list of translated entities,
4 gives warning and fail messages,
5 gives fail messages only. The use of mode depends on the value of what. If what is 0, mode is ignored. If what is 1, 2 or 3, mode defines the following:
0 lists the numbers of IGES or STEP entities in the respective model
1 gives the number, identifier, type and result type for each IGES or STEP entity and/or its status (fail, warning, etc.)
2 gives maximum information for each IGES or STEP entity (i.e. checks)
3 gives the number of entities per type of IGES or STEP entity
4 gives the number of IGES or STEP entities per result type and/or status
5 gives the number of pairs (IGES or STEP or result type and status)
6 gives the number of pairs (IGES or STEP or result type and status) AND the list of entity numbers in the IGES or STEP model. If what is 4 or 5, mode defines the warning and fail messages as follows:
if mode is 0 all warnings and checks per entity are returned
if mode is 2 the list of entities per warning is returned. If mode is not set, only the list of all entities per warning is given.

◆ PrintStatsTransfer() [2/2]

void XSControl_Reader::PrintStatsTransfer	(	Standard_OStream &	theStream,
		const int	what,
		const int	mode = 0 ) const

Displays the statistics for the last translation.

◆ ReadFile()

virtual IFSelect_ReturnStatus XSControl_Reader::ReadFile ( const char *const filename )

virtual

Loads a file and returns the read status Zero for a Model which complies with the Controller.

Reimplemented in STEPControl_Reader.

◆ ReadStream()

virtual IFSelect_ReturnStatus XSControl_Reader::ReadStream	(	const char *const	theName,
		std::istream &	theIStream )

virtual

Loads a file from stream and returns the read status.

Reimplemented in STEPControl_Reader.

◆ RootForTransfer()

occ::handle< Standard_Transient > XSControl_Reader::RootForTransfer ( const int num = 1 )

Returns an IGES or STEP root entity for translation. The entity is identified by its rank in a list.

◆ SetNorm()

bool XSControl_Reader::SetNorm ( const char *const norm )

Sets a specific norm to <me> Returns True if done, False if <norm> is not available.

◆ SetShapeFixParameters() [1/3]

void XSControl_Reader::SetShapeFixParameters	(	const DE_ShapeFixParameters &	theParameters,
		const XSAlgo_ShapeProcessor::ParameterMap &	theAdditionalParameters = {} )

Sets parameters for shape processing. Parameters from theParameters are copied to the internal map. Parameters from theAdditionalParameters are copied to the internal map if they are not present in theParameters.

Parameters

theParameters	the parameters for shape processing.
theAdditionalParameters	the additional parameters for shape processing.

◆ SetShapeFixParameters() [2/3]

void XSControl_Reader::SetShapeFixParameters ( const XSAlgo_ShapeProcessor::ParameterMap & theParameters )

Sets parameters for shape processing.

Parameters

theParameters the parameters for shape processing.

◆ SetShapeFixParameters() [3/3]

void XSControl_Reader::SetShapeFixParameters ( XSAlgo_ShapeProcessor::ParameterMap && theParameters )

Sets parameters for shape processing. Parameters are moved from the input map.

Parameters

theParameters the parameters for shape processing.

◆ SetShapeProcessFlags()

void XSControl_Reader::SetShapeProcessFlags ( const ShapeProcess::OperationsFlags & theFlags )

Sets flags defining operations to be performed on shapes.

Parameters

theFlags The flags defining operations to be performed on shapes.

◆ SetWS()

void XSControl_Reader::SetWS	(	const occ::handle< XSControl_WorkSession > &	WS,
		const bool	scratch = true )

Sets a specific session to <me>

◆ Shape()

TopoDS_Shape XSControl_Reader::Shape ( const int num = 1 ) const

Returns the shape resulting from a translation and identified by the rank num. num equals 1 by default. In other words, the first shape resulting from the translation is returned.

◆ Shapes()

NCollection_Sequence< TopoDS_Shape > & XSControl_Reader::Shapes ( )

protected

Returns a sequence of produced shapes.

◆ TransferEntity()

bool XSControl_Reader::TransferEntity	(	const occ::handle< Standard_Transient > &	start,
		const Message_ProgressRange &	theProgress = Message_ProgressRange() )

Translates an IGES or STEP entity in the model. true is returned if a shape is produced; otherwise, false is returned.

◆ TransferList()

int XSControl_Reader::TransferList	(	const occ::handle< NCollection_HSequence< occ::handle< Standard_Transient > > > &	list,
		const Message_ProgressRange &	theProgress = Message_ProgressRange() )

Translates a list of entities. Returns the number of IGES or STEP entities that were successfully translated. The list can be produced with GiveList. Warning - This function does not clear the existing output shapes.

◆ TransferOne()

bool XSControl_Reader::TransferOne	(	const int	num,
		const Message_ProgressRange &	theProgress = Message_ProgressRange() )

Translates an IGES or STEP entity identified by the rank num in the model. false is returned if no shape is produced.

◆ TransferOneRoot()

bool XSControl_Reader::TransferOneRoot	(	const int	num = 1,
		const Message_ProgressRange &	theProgress = Message_ProgressRange() )

Translates a root identified by the rank num in the model. false is returned if no shape is produced.

◆ TransferRoots()

int XSControl_Reader::TransferRoots ( const Message_ProgressRange & theProgress = Message_ProgressRange() )

Translates all translatable roots and returns the number of successful translations. Warning - This function clears existing output shapes first.

◆ WS()

occ::handle< XSControl_WorkSession > XSControl_Reader::WS ( ) const

Returns the session used in <me>

Field Documentation

◆ theroots

NCollection_Sequence<occ::handle<Standard_Transient> > XSControl_Reader::theroots

protected

◆ therootsta

bool XSControl_Reader::therootsta

protected

The documentation for this class was generated from the following file:

XSControl_Reader.hxx

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ XSControl_Reader() [1/3]

◆ XSControl_Reader() [2/3]

◆ XSControl_Reader() [3/3]

◆ ~XSControl_Reader()

Member Function Documentation

◆ ClearShapes()

◆ GetDefaultShapeFixParameters()

◆ GetDefaultShapeProcessFlags()

◆ GetShapeFixParameters()

◆ GetShapeProcessFlags()

◆ GetStatsTransfer()

◆ GiveList() [1/2]

◆ GiveList() [2/2]

◆ Model()

◆ NbRootsForTransfer()

◆ NbShapes()

◆ OneShape()

◆ PrintCheckLoad() [1/2]

◆ PrintCheckLoad() [2/2]

◆ PrintCheckTransfer() [1/2]

◆ PrintCheckTransfer() [2/2]

◆ PrintStatsTransfer() [1/2]

◆ PrintStatsTransfer() [2/2]

◆ ReadFile()

◆ ReadStream()

◆ RootForTransfer()

◆ SetNorm()

◆ SetShapeFixParameters() [1/3]

◆ SetShapeFixParameters() [2/3]

◆ SetShapeFixParameters() [3/3]

◆ SetShapeProcessFlags()

◆ SetWS()

◆ Shape()

◆ Shapes()

◆ TransferEntity()

◆ TransferList()

◆ TransferOne()

◆ TransferOneRoot()

◆ TransferRoots()

◆ WS()

Field Documentation

◆ theroots

◆ therootsta
