View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000380 | Community | OCCT:Modeling Data | public | 2002-05-15 13:20 | 2011-12-15 17:54 |
| Reporter | Assigned To | ||||
| Priority | none | Severity | trivial | ||
| Status | closed | Resolution | unable to reproduce | ||
| OS | All | ||||
| Fixed in Version | 5.0.0 | ||||
| Summary | 0000380: Incorrect result of common operation | ||||

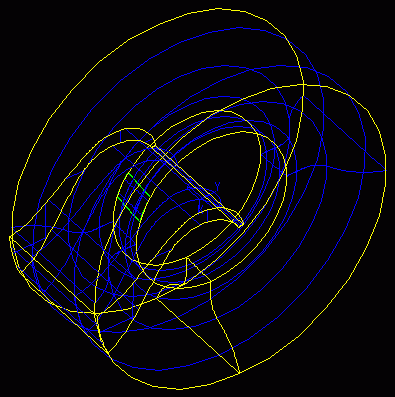

| Description | This bug has been added to http://www.opencascade.org/forumorg/bug.php?bug_id=48&f=8 by Genevieve Gauthier Gauthier.genevieve@ireq.ca . Common of the two attached shapes is impossible. Full deescription: ----------- I have two solid shapes, one is a solid of revolution : TopoDS_Shape Demidistributeur = BRepPrimAPI_MakeRevol(FaceXZ,AxeZ); an the other is a prism : TopoDS_Shape Passage = BRepPrimAPI_MakePrism(FaceXY,vecteur,Standard_False); I have the bad result when i do : TopoDS_Shape Bloc = BRepAlgoAPI_Common(DemiDistributeur,Passage); FaceXZ is a TopoDS_Face make with BRepBuilderAPI_MakeFace(PlanXZ,Profil1,Standard_True); PlanXZ = gp_Pln(gp_Pnt(0,0,0), gp_Dir(0,1,0) ); Profil1 is a closed wire make of 4 edges that are on the planXZ AxeZ is the axe gp_Ax1(gp_Pnt(0,0,0), gp_Dir(0,0,1)) FaceXY is a TopoDS_Face make with BRepBuilderAPI_MakeFace(PlanXY,Pr ofil2,Standard_True); PlanXY = gp_Pln(Profil2BSpline1->EndPoint(), gp_Dir(0,1,0) ); Profil2BSpline1 is a Geom_BSPline curve that is one of the edge of Profil2. Profil2 is a closed wire make of 4 edges that are on the planXY. vecteur is a gp_Vec vecteur(gp_Pnt(0,0,Zvaleur1), gp_Pnt(0,0,Zvaleur2) ); I check the two shapes with Draw (checkshape) and both are correct. When i do the boolean operation it return only a face and it's suppose to be a solid. I attached the shapes in BRep format. -------- | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2002-05-15 15:54 | bugmaster | Assigned To | bugmaster => ifv |
| 2002-05-15 15:54 | bugmaster | Status | new => assigned |
| 2002-06-17 16:54 |
|
Assigned To | ifv => ofv |
| 2002-07-03 16:26 |
|
Status | assigned => resolved |
| 2002-07-03 16:42 | bugmaster | Status | resolved => closed |
| 2002-07-03 16:42 | bugmaster | Resolution | @0@ => unable to reproduce |
| 2011-08-02 11:32 | bugmaster | Category | OCCT:MOD => OCCT:Modeling Data |
| 2011-12-15 17:54 | bugmaster | Project | Open CASCADE => Community |
