Summary0000602: Exception during filet creation if it cross samedge of cylinder.
DescriptionException during filet creation if it cross samedge of cylinder.
TagsNo tags attached.
Test case numberbugs modalg_3 bug602

Attached Files

Relationships

related to 0026675 closedbugmaster Open CASCADE Eliminate normalization of coordinates in ApproxInt package
related to 0026655 newmsv Open CASCADE ChFi3d_Builder algorithm fails to build fillets if some input edges connect with seam edges

Activities

2002-08-09 14:04



filet_bug.zip (11,615 bytes)

msv

2015-10-30 10:39

developer   ~0047640

It is another try to resolve this issue.

nbv

2015-10-30 11:21

developer   ~0047641

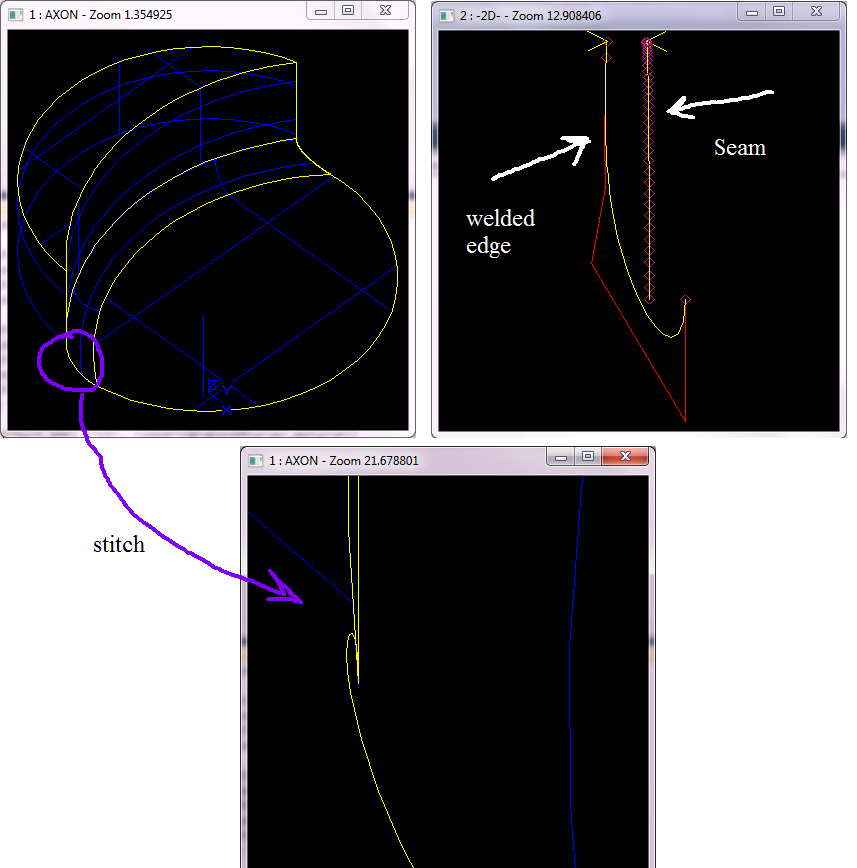

On the current MASTER (IR-2015-10-22) filet is built. However, its result is incorrect by the two reasons (at least):

1. It is not valid in terms of BRepCheck algorithm.
2. There is a stitch in welded edge, which is shown well in the picture BAD_filet.png.

Thank to this stitch, the fillet is build (welded edge does not intersect trimmed seam-edge) (see 2d-view in the attached picture BAD_filet.png).

However, if approximation algorithm worked properly, the welded edge would intersect the seam-edge. As result, the exception will be thrown in ChFi3d_Builder::PerformOneCorner(...) ("StdFail_NotDone::Raise ("OneCorner : fillets have too big radiuses");").

nbv

2015-10-30 11:49

developer


bugmaster

2016-09-16 10:06

administrator   ~0057846

Problem is reproduced on master from 2016-09-08
