View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0001646 | Community | OCCT:Modeling Algorithms | public | 2003-02-04 15:30 | 2011-12-15 16:41 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | trivial | ||
| Status | closed | Resolution | fixed | ||
| OS | All | ||||
| Fixed in Version | 5.1.0 | ||||
| Summary | 0001646: BRepPrimAPI_MakePrism bug | ||||

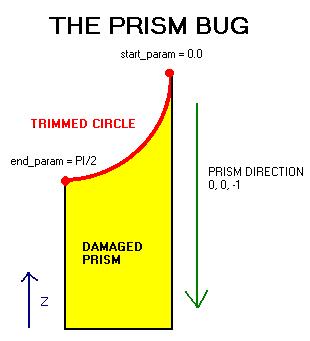

| Description | This bug has been added by Adrian Helcman at http://www.opencascade.org/forumorg/bug.php?bug_id=109&f=8 . ------------- Wrong result of the BRepPrimAPI_MakePrism applied on arc-like edge. Here is the testing source code which leads to not correct prism shape (BRepPrimAPI_MakePrism). How to test: Add the source code from source.txt somewhere to testing application, Put arc.dta and arc_ok.dta into C:\, Call "Prism_Bug_Test()". There is some problem with o_prism shape in the function "Prism_Bug_Test()". When I tried to obtain the section of o_prism shape with a horisontal plane, there were no result edges! O_prism is also not correctly displayed - just selection frame! When the "arc_ok.dta" is used (in Prism_Bug_Test()) instead of "arc.dta", the situation is different. Section is ok, and displayed shape is correct too. ----------- See files attached. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2003-02-04 11:30
|
|
2003-02-04 11:31
|
readme.txt (679 bytes) |
|
2003-02-04 11:32
|
source.txt (3,054 bytes) |
|
2003-02-04 11:32
|
|
2003-02-04 11:33
|
|
2003-02-04 11:33
|
|
|
2003-02-04 11:34
|
|
|
2003-04-03 19:34
|
|
|
2003-04-17 14:43
|
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2003-03-17 12:45 | bugmaster | Assigned To | bugmaster => ofv |
| 2003-03-17 12:45 | bugmaster | Status | new => assigned |
| 2003-04-17 18:42 |
|
Status | assigned => resolved |
| 2003-04-21 20:00 |
|
CC | => apv |
| 2003-04-21 20:01 |
|
CC | => aki |
| 2003-05-12 19:28 |
|
Status | resolved => tested |
| 2003-05-19 12:10 | bugmaster | Status | tested => closed |
| 2003-05-19 12:10 | bugmaster | Resolution | @0@ => fixed |
| 2011-08-02 11:31 | bugmaster | Category | OCCT:MOA => OCCT:Modeling Algorithms |
| 2011-12-15 16:41 |
|
Project | Open CASCADE => Community |
