View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0006766 | Open CASCADE | OCCT:Modeling Algorithms | public | 2004-09-22 14:55 | 2012-01-16 19:03 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | trivial | ||
| Status | closed | Resolution | fixed | ||
| OS | All | ||||
| Fixed in Version | 5.2.3 | ||||
| Summary | 0006766: Invalid result of intersection of a bspline face with a plane | ||||

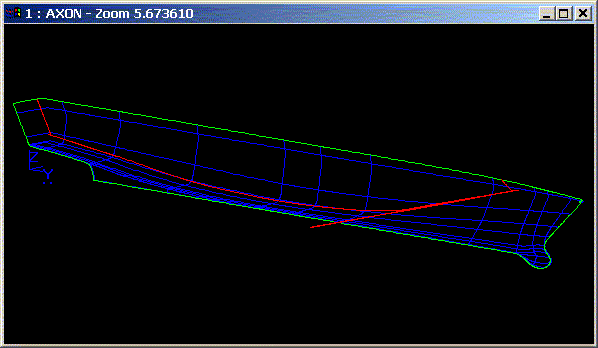

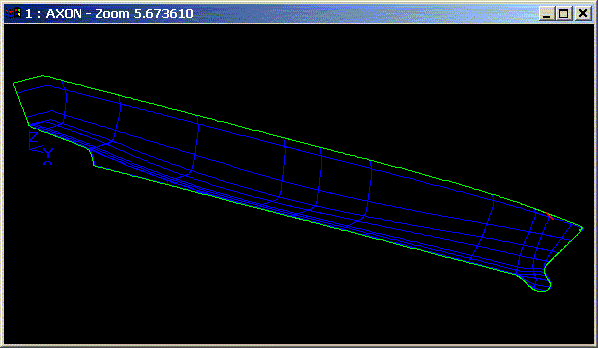

| Description | The shape is attached. In draw, run the commands: restore def_hull_plain_surface_half.brep a plane pl 0 4 0 0 1 0 mkface f pl bsection s a f You will see the picture as attached bsection.gif. If you try to run the commands: bop a f bopsection s then the result is OK. But, if you change the plane to Y=6 and use the second way commands then you will see the picture as attached bopsection.gif The expected result is a section curve that goes from boundary to boundary of the face in all cases (both planes Y=4 and Y=6 and both bop and bsection commands). | ||||
| Additional information and documentation updates | Documentation remark, added by OFV 2004-12-29 08:39:48: Improvements: documentation update is not required | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2004-09-22 12:55
|
|
|
2004-09-22 12:56
|
|
2004-09-22 12:56
|
|
2004-10-25 11:33
|
|
|
2004-11-09 13:18
|
|
|
2004-12-29 08:38
|
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2004-09-22 16:01 | bugmaster | Assigned To | bugmaster => mkk |
| 2004-09-22 16:01 | bugmaster | Status | new => assigned |
| 2004-10-05 12:49 |
|
Assigned To | mkk => ofv |
| 2004-10-25 13:32 |
|
Status | assigned => resolved |
| 2004-10-25 13:35 | bugmaster | groupset | 158276927864438656 => 158259327087935360 |
| 2004-10-25 15:16 |
|
CC | => mkv, aki |
| 2004-10-29 16:27 |
|
Status | resolved => assigned |
| 2004-11-09 15:19 |
|
Status | assigned => resolved |
| 2004-11-15 11:18 |
|
CC | => apv |
| 2004-11-19 10:30 |
|
Status | resolved => assigned |
| 2004-12-29 10:39 |
|
Status | assigned => resolved |
| 2005-01-10 16:19 |
|
Status | resolved => tested |
| 2005-01-17 08:32 | bugmaster | Status | tested => verified |
| 2005-05-06 15:23 | bugmaster | Status | verified => closed |
| 2005-05-06 15:23 | bugmaster | Resolution | @0@ => fixed |
| 2011-08-02 11:31 | bugmaster | Category | OCCT:MOA => OCCT:Modeling Algorithms |
| 2012-01-16 19:03 |
|
Assigned To | ofv => |
| 2012-01-16 19:03 |
|
Description Updated | |
| 2012-01-16 19:03 |
|
Additional Information Updated |
