Summary0007322: Data Exchange - Problem in XDE reading
DescriptionI find a problem with representation of shape in DFBrowser.

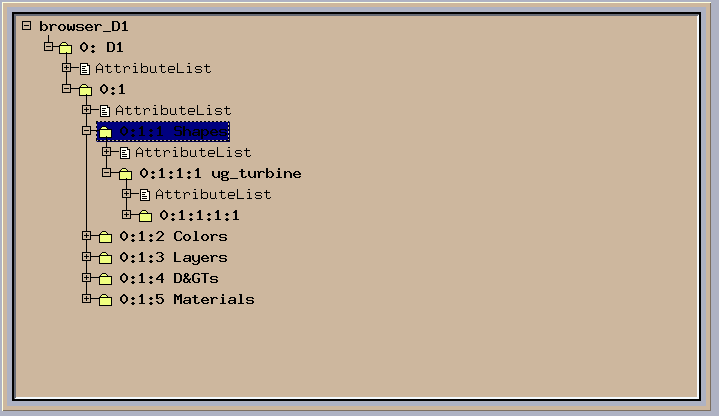

After reading attached file prob.stp using command ReadStep into document I
receive result which you can see on attached image b2.gif.
This file contains following string:
    #18080 = PRODUCT('ug_turbine', ...
If I change this string using symbol '\':
    #18080 = PRODUCT('ug_turbi\ne', ...

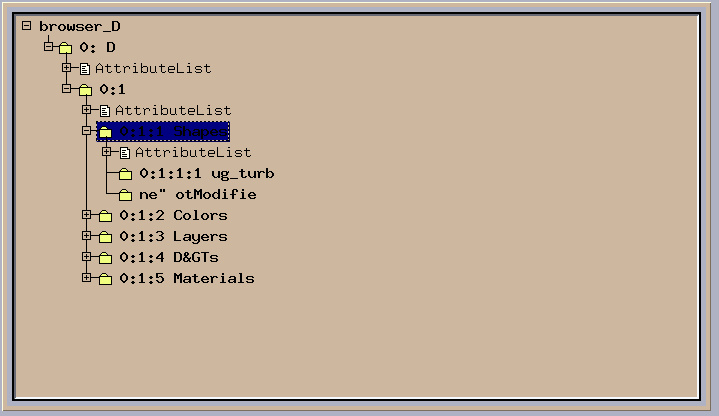

and repeat reading I receive bad result (see b1.gif)
Therefore if name of product contains symbol '\' we not receive correct
representation in DFBrowser
TagsNo tags attached.
Test case numberNot needed

Attached Files

Relationships

related to 0032310 closedsmoskvin Open CASCADE Data Exchange - Invalid STEP export/import of backslashes in names [Regression since OCCT 7.5.0]

Activities

2004-11-29 10:40



prob.stp (275,174 bytes)

2004-11-29 10:41




2004-11-29 10:42




mkv

2017-09-18 15:11

tester   ~0070637

Problem is reproduced on the current master.

Issue History

Date Modified Username Field Change
2004-11-29 12:46 bugmaster Assigned To bugmaster => pdn
2004-11-29 12:46 bugmaster Status new => assigned
2011-08-02 11:12 bugmaster Category OCCT:DTE => OCCT:Data Exchange
2017-09-18 15:11 mkv Test case number => Not needed
2017-09-18 15:11 mkv Note Added: 0070637
2017-09-18 15:11 mkv Fixed in Version EMPTY =>
2017-09-18 15:11 mkv Description Updated
2019-12-13 09:22 pdn Assigned To pdn => gka
2021-10-14 12:24 dpasukhi Relationship added related to 0032310
2021-10-14 12:29 kgv Summary Problem in XDE reading => Data Exchange - Problem in XDE reading
2021-10-14 12:30 kgv Product Version => 5.2.4
