View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0007952 | Open CASCADE | OCCT:Modeling Algorithms | public | 2005-02-01 11:22 | 2016-08-02 16:26 |
| Reporter | vro | Assigned To | bugmaster | ||
| Priority | normal | Severity | trivial | ||
| Status | closed | Resolution | unable to reproduce | ||
| OS | All | ||||
| Summary | 0007952: Offset produces self-intersecting wire | ||||

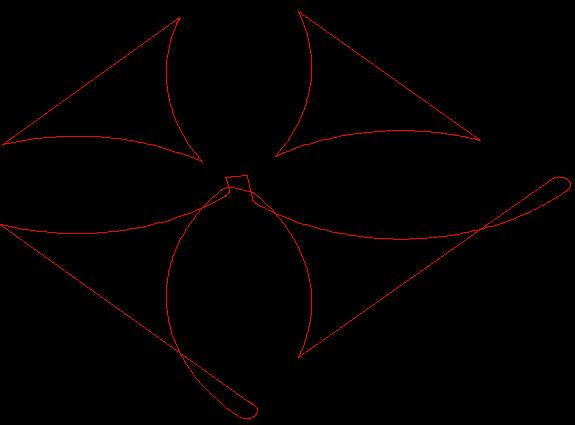

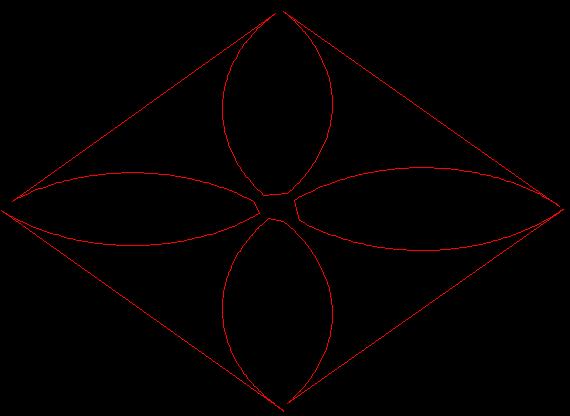

| Description | Offsetting a wire (attached) with value -1, the algorithm of offset produces a self-intersecting resulting wire. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2005-02-01 09:22
|
|
|
2005-02-01 09:24
|
|
2005-02-01 09:30
|
|
|
Initial shape is the null |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2005-02-01 11:33 | vro | BugsThisDependsOn | => 7938 |
| 2011-08-02 11:31 | bugmaster | Category | OCCT:MOA => OCCT:Modeling Algorithms |
| 2016-08-02 16:26 | bugmaster | Note Added: 0056390 | |
| 2016-08-02 16:26 | bugmaster | Status | new => closed |
| 2016-08-02 16:26 | bugmaster | Resolution | open => unable to reproduce |
| 2016-08-02 16:26 | bugmaster | Fixed in Version | EMPTY => |
