View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0008498 | Open CASCADE | OCCT:Modeling Algorithms | public | 2005-03-28 10:50 | 2012-01-16 13:52 |
| Reporter | vro | Assigned To | |||
| Priority | normal | Severity | trivial | ||
| Status | closed | Resolution | fixed | ||
| OS | All | ||||
| Fixed in Version | 5.2.3 | ||||
| Summary | 0008498: Offset operation crashes the application | ||||

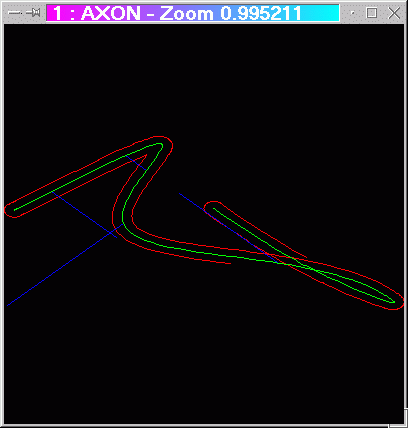

| Description | There is a b-spline curve which crashes the application on the attempt of the user to make an offset. The curve is attached. | ||||
| Additional information and documentation updates | Documentation remark, added by SKV 2005-04-11 14:26:07: New features: Limitation: Self-intersected wires, set of intersected wires and faces built on such wires are invalid arguments for the operation of wire offset. There is no any checks on self-intersection or intersection of wires inside the algorithm, so, it is under responsibility of the user. The result on such arguments is unpredictable. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2005-03-28 08:50
|
|
|
2005-04-07 05:50
|
|
|
2005-04-07 05:55
|
|
2005-04-07 14:26
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2005-04-07 10:49 | bugmaster | Assigned To | bugmaster => skv |
| 2005-04-07 10:49 | bugmaster | Status | new => assigned |
| 2005-04-07 17:15 |
|
Status | assigned => resolved |
| 2005-05-06 15:28 | bugmaster | Status | resolved => closed |
| 2005-05-06 15:28 | bugmaster | Resolution | @0@ => fixed |
| 2011-08-02 11:31 | bugmaster | Category | OCCT:MOA => OCCT:Modeling Algorithms |
| 2012-01-16 13:52 |
|
Description Updated | |
| 2012-01-16 13:52 |
|
Additional Information Updated |
