View Issue Details

IDProjectCategoryView StatusDate SubmittedLast Update
0020165Open CASCADEOCCT:Modeling Algorithmspublic2008-07-25 12:102010-06-29 16:22
ReporterspvAssigned Tobugmaster
PrioritynormalSeveritytrivial
Status closedResolutionunable to reproduce
OSAll
Summary0020165: GUI 6.3 Strange stain is presented in shading of the attached shape
DescriptionGUI 6.3 Strange stain is presented in shading of the attached shape
1)Start SALOME application=>Activate new study and GEOM module
2)”File”=>”Import”=>Select and load file “shading_025.brep” (attached)
3)”Fit All”=>Rotate model in 3D Viewer

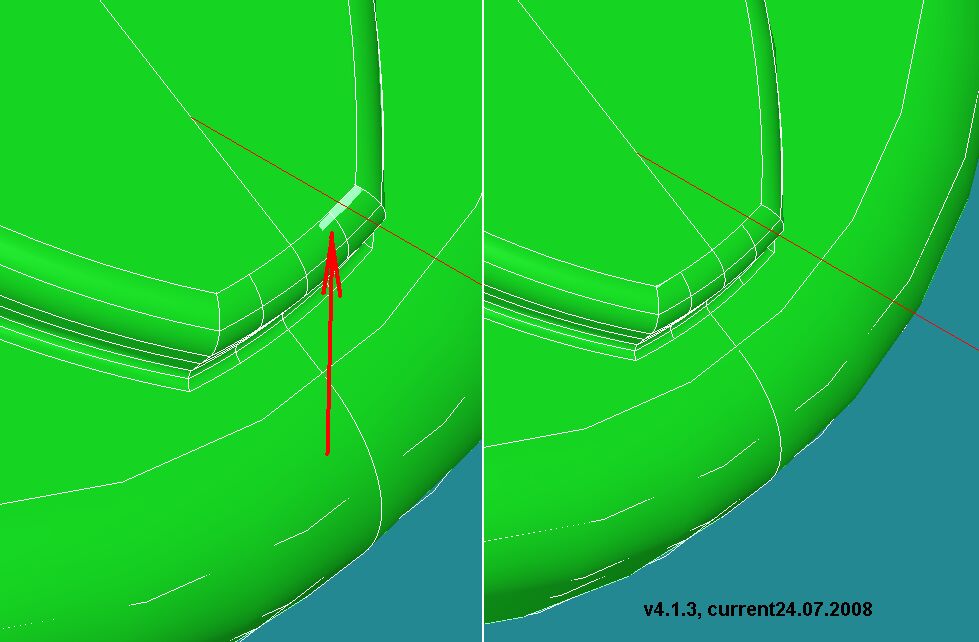

Problem: shading contains some incorrectness (see attachged picture)
Note: shading is correct in v4.1.3, current24.07.2008
TagsNo tags attached.
Test case number

Attached Files

Activities

2008-07-25 10:10




2008-07-25 10:11



shading_025.zip (335,840 bytes)

Issue History

Date Modified Username Field Change
2010-06-29 16:22 bugmaster Status new => closed
2010-06-29 16:22 bugmaster Resolution @0@ => unable to reproduce
2011-08-02 11:31 bugmaster Category OCCT:MOA => OCCT:Modeling Algorithms
