View Issue Details

IDProjectCategoryView StatusDate SubmittedLast Update
0021415Open CASCADEOCCT:Meshpublic2009-10-15 12:592013-11-21 18:58
ReportermsvAssigned Toabv
PrioritynormalSeveritytrivial
Status closedResolutionwon't fix
OSAll
Summary0021415: Bad triangulation of cylindrical face with large vertex tolerances
DescriptionIn draw, display in 3D view in shading mode the attached face.

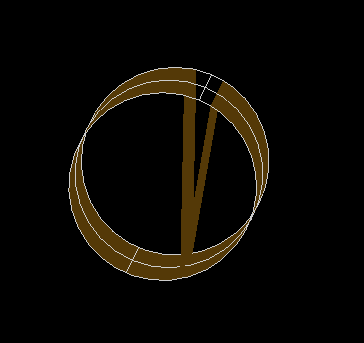

The illustration of the bug is also attached.
When I analyzed the face, I found that its vertices have tolerance about 40,
while the radius of the cylinder is about 20.
TagsNo tags attached.
Test case numberchl 934 G6 = bugs modalg_2 bug21415

Attached Files

Activities

2009-10-15 12:59




2009-10-15 13:00



face_bad_meshed.brep (4,286 bytes)

mkv

2011-11-15 12:48

tester

G6 (1,452 bytes)

oan

2013-06-13 16:26

developer   ~0024748

Dear Pavel,

could you please review the fix at GIT branch CR21415?

The core of the problem is not a matter of vertex tolerances, but the fact that topological vertices can have different 3d position than the real end points of the edge defined by geometrical curve.

oan

2013-11-19 12:16

developer   ~0026736

Proposed fix doesn't implement appropriate behavior as far as it refers to geometrical data only and excludes topology data from consideration.

Problem requires more detail analysis.

pdn

2013-11-19 12:45

reporter   ~0026740

The topological structure of face looks OK but 3D point of both vertices are incorrect. They are located on the cylindrical surface with PI shift along periodic iso.

So, the distance between end of curves (so called logical position of vertex) and its 3D point is diameter of cylinder.

It is proposed to put as designed.

abv

2013-11-21 18:58

manager   ~0026831

This behavior is by design (mesh is adjusted to vertices), thus nothing to be fixed

Issue History

Date Modified Username Field Change
2011-08-02 11:31 bugmaster Category OCCT:MOA => OCCT:Modeling Algorithms
2011-11-15 12:48 mkv File Added: G6
2011-11-15 12:49 mkv Test case number => chl 934 G6
2011-11-15 12:49 mkv Fixed in Version EMPTY =>
2011-11-15 12:49 mkv Description Updated
2011-12-20 15:11 pdn Target Version => 6.5.3
2012-03-21 14:19 abv Target Version 6.5.3 => 6.5.4
2012-10-21 11:14 abv Target Version 6.5.4 => 6.6.0
2012-11-09 10:50 abv Category OCCT:Modeling Algorithms => OCCT:Mesh
2013-02-28 17:11 abv Assigned To bugmaster => oan
2013-02-28 17:11 abv Status new => assigned
2013-02-28 17:11 abv Test case number chl 934 G6 => chl 934 G6 = bugs modalg_2 bug21415
2013-04-12 10:25 abv Target Version 6.6.0 => 6.7.0
2013-06-13 16:26 oan Note Added: 0024748
2013-06-13 16:26 oan Assigned To oan => pdn
2013-06-13 16:26 oan Status assigned => resolved
2013-06-13 19:03 oan Assigned To pdn => oan
2013-06-13 19:32 oan Status resolved => assigned
2013-11-19 12:16 oan Note Added: 0026736
2013-11-19 12:45 pdn Note Added: 0026740
2013-11-19 12:45 pdn Assigned To oan => abv
2013-11-19 12:45 pdn Status assigned => feedback
2013-11-21 18:58 abv Note Added: 0026831
2013-11-21 18:58 abv Status feedback => closed
2013-11-21 18:58 abv Resolution open => won't fix
2013-11-21 18:58 abv Target Version 6.7.0 =>
