View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0022635 | Open CASCADE | OCCT:Modeling Algorithms | public | 2011-06-29 21:17 | 2011-07-01 14:38 |
| Reporter | Assigned To | bugmaster | |||
| Priority | normal | Severity | trivial | ||
| Status | closed | Resolution | unable to reproduce | ||
| OS | All | ||||
| Summary | 0022635: Cut operation produces incorrect results | ||||

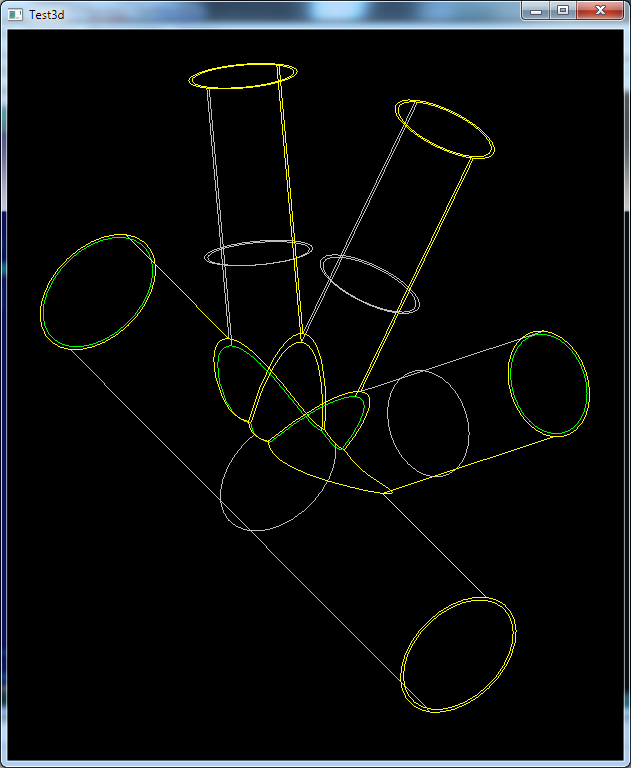

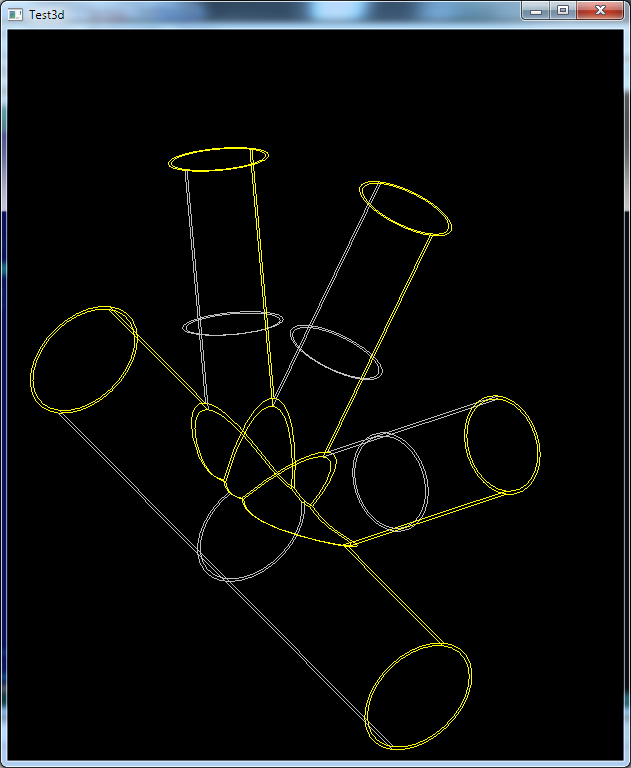

| Description | The attached DRAW script joint_bad.tcl models a 4-pipe joint with help of FUSE and CUT Boolean operations. The resulting shape lacks two internal cylindrical faces (see attached joint_bad.brep). Minor modification of the script produces good result (also attached). Probably, I am doing something wrong, but at least I would expect an exception or some other indication of the problem. In my case, I just get the incomplete shape silently... | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2011-06-29 19:17
|
joint_bad.tcl (890 bytes) |
|
2011-06-29 19:18
|
|
|
2011-06-29 19:18
|
joint.tcl (890 bytes) |
|
2011-06-29 19:18
|
|
|
2011-06-29 19:19
|
|
2011-06-29 19:20
|
