View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0023007 | Open CASCADE | OCCT:DRAW | public | 2012-03-01 18:33 | 2014-03-05 10:44 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | fixed | ||
| Platform | Windows | OS | VC++ 2008 | ||
| Product Version | 6.5.2 | ||||
| Target Version | 6.7.1 | Fixed in Version | 6.7.1 | ||
| Summary | 0023007: Wrong work of AIS dimension Draw commands | ||||

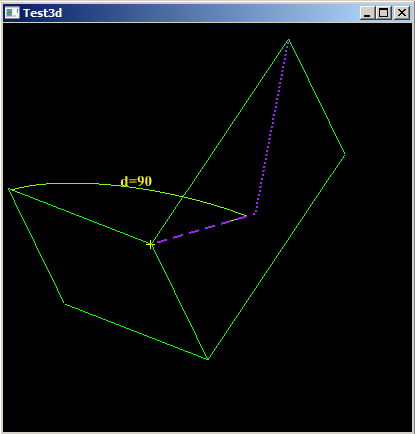

| Description | Several AIS dimension Draw command works incorrectly. 1)Angle dimensions. <vangledim > produce incorrect presentation (see the attached picture pic1.png) It was requested angle between two top edges. The result looks strange. 2) Moving dimensions - <vmovedim >. Dimensions are not moving and don't follow the mouse position. | ||||
| Steps To Reproduce | pload ALL box b 100 150 120 explode b F vdisplay b_1 b_3 # 1)case_1 (angledim): vangledim dim1 #select the first top edge from face 1 #select the second top edge from face 2 #result => the attached picture pic1.png # 2) case_2 (vmovedim) # move created angle dimension vtop vmovedim dim1 # press ctrl and press new text position #(vtop is to select point on angle plane by definition of the angle dimension) vmovedim # select the dimension (ctrl/MB1) # press ctrl and press new text position | ||||
| Tags | No tags attached. | ||||
| Test case number | Not needed | ||||
|
|
2012-03-01 18:33 manager |
|
|
Dear Bugmaster, this issue was fixed in the scope of the issue 0024412: vangledim and vmovedim DRAW commands were corrected. Please test it. |
|
|
Commands vangledim and vmovedim work properly (dimensions are moving and follow the mouse position). |
|
|
|
|
|
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2012-03-01 18:33 |
|
New Issue | |
| 2012-03-01 18:33 |
|
Assigned To | => san |
| 2012-03-01 18:33 |
|
File Added: pic1.png | |
| 2012-03-07 11:07 |
|
Status | new => assigned |
| 2012-10-21 17:22 |
|
Target Version | 6.5.4 => 6.6.0 |
| 2013-03-02 10:36 |
|
Target Version | 6.6.0 => 6.7.0 |
| 2013-11-06 16:06 | kgv | Relationship added | related to 0023159 |
| 2013-11-29 18:40 |
|
Assigned To | san => aba |
| 2013-12-21 10:13 |
|
Target Version | 6.7.0 => 6.7.1 |
| 2014-02-11 18:39 |
|
Steps to Reproduce Updated | |
| 2014-02-12 10:44 |
|
Note Added: 0027850 | |
| 2014-02-12 10:44 |
|
Assigned To | aba => bugmaster |
| 2014-02-12 10:44 |
|
Status | assigned => feedback |
| 2014-02-27 18:10 | bugmaster | Assigned To | bugmaster => apn |
| 2014-03-05 10:42 | apn | Note Added: 0028143 | |
| 2014-03-05 10:42 | apn | Note Edited: 0028143 | |

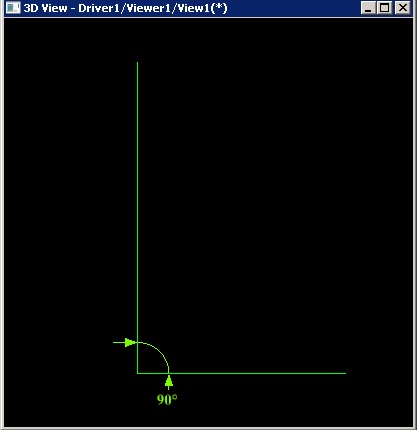

| 2014-03-05 10:43 | apn | File Added: position1.jpg | |

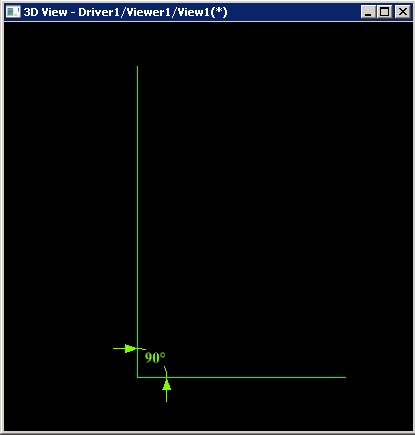

| 2014-03-05 10:43 | apn | File Added: position2.jpg | |

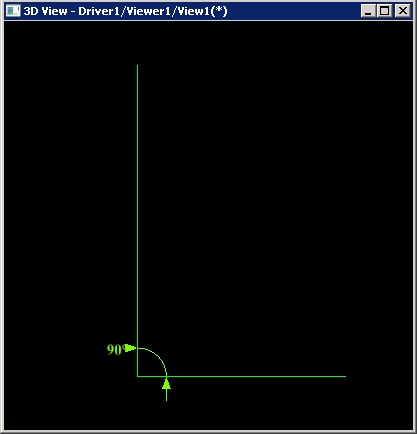

| 2014-03-05 10:43 | apn | File Added: position3.jpg | |
| 2014-03-05 10:44 | apn | Test case number | => Not needed |
| 2014-03-05 10:44 | apn | Assigned To | apn => szy |
| 2014-03-05 10:44 | apn | Status | feedback => closed |
| 2014-03-05 10:44 | apn | Resolution | open => fixed |
| 2014-03-05 10:44 | apn | Fixed in Version | => 6.7.1 |
