View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0023183 | Community | OCCT:Modeling Algorithms | public | 2012-05-31 05:52 | 2012-05-31 09:31 |
| Reporter | dingzh | Assigned To | dingzh | ||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | duplicate | ||
| Platform | Windows | OS | VC++ 2010 | ||
| Product Version | 6.5.3 | ||||
| Summary | 0023183: Splitting face generated wrong result | ||||
| Description | Open attached .brep file, and try to use the line to split the plane face. The result is not as expectation. Split API is BRepFeat_SplitShape. FYI: The raw plane face has only two edges, one edge is a line segment, another is an one degree b-spline curve which owns four control points. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
|
I could not reproduce the problem; the result is as expected: the square face gets split in two, with one corner separated. In DRAW, with OCCT 6.5.3: Draw[33]> restore splitface.brep a a Draw[34]> explode a a_1 a_2 Draw[35]> whatis a_1 a_1 is a shape FACE FORWARD Modified Orientable Draw[36]> whatis a_2 a_2 is a shape EDGE FORWARD Modified Orientable Draw[37]> splitshape r a_1 a_1 a_2 Draw[38]> explode r r_1 r_2 Draw[39]> whatis r_1 r_1 is a shape FACE FORWARD Modified Orientable Draw[40]> whatis r_2 r_2 is a shape FACE FORWARD Modified Orientable Draw[41]> checkshape r This shape seems to be valid Visually the result is Ok as well. Please double-check, and if problem still exists, try to provide DRAW script to reproduce it. |
|
|
|
|

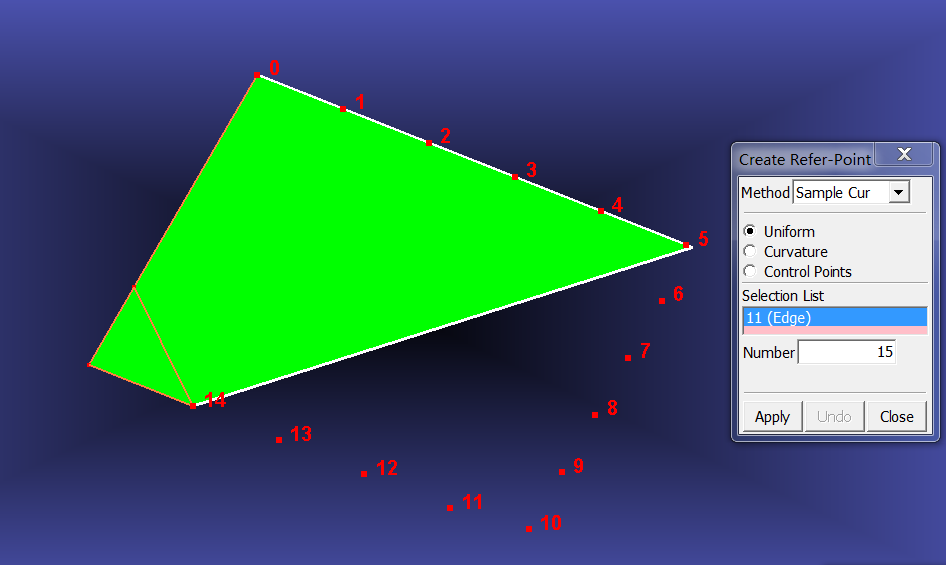

Hi abv, Thanks for your reply. I just do it again, it's still failed in my app. But when I check the edge on the new face, I guess it maybe a tessellation bug. See attached png and brep file. |
|
|
|
|
|
The actual problem is not in splitting shape, but in tesselation, as reported in 0023184, thus I close this bug as duplicate. Note that to work-around this kind of problems you can split your shape by C1 criterion: see DRAW command DT_ShapeDivide for example. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2012-05-31 05:52 | dingzh | New Issue | |
| 2012-05-31 05:52 | dingzh | Assigned To | => jgv |
| 2012-05-31 05:52 | dingzh | File Added: splitface.rar | |
| 2012-05-31 08:03 |
|
Note Added: 0020608 | |
| 2012-05-31 08:03 |
|
Assigned To | jgv => dingzh |
| 2012-05-31 08:03 |
|
Status | new => feedback |
| 2012-05-31 08:38 | dingzh | File Added: tessedge.png | |
| 2012-05-31 08:40 | dingzh | Note Added: 0020611 | |
| 2012-05-31 08:40 | dingzh | Status | feedback => assigned |
| 2012-05-31 08:41 | dingzh | File Added: tessface2.brep | |
| 2012-05-31 09:31 |
|
Note Added: 0020615 | |
| 2012-05-31 09:31 |
|
Status | assigned => closed |
| 2012-05-31 09:31 |
|
Resolution | open => duplicate |
