View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0023235 | Community | OCCT:Visualization | public | 2012-07-02 17:36 | 2014-11-11 12:52 |
| Reporter | Pawel | Assigned To | Pawel | ||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | fixed | ||
| Platform | Windows | OS | VC++ 2005 | ||
| Product Version | 6.5.3 | ||||
| Target Version | 6.8.0 | Fixed in Version | 6.8.0 | ||
| Summary | 0023235: The inner side of an AIS_Shape not rendered when activated clipping plane | ||||
| Description | When activating the clipping plane the inner side of some objects is not rendered. It can be observed for a sphere based on the given example (see the steps to reproduce below). However, I could also observe it for a cylinder (not sure how to reproduce it) but never for a box. So I guess it affects only the shapes based on circle(s). | ||||

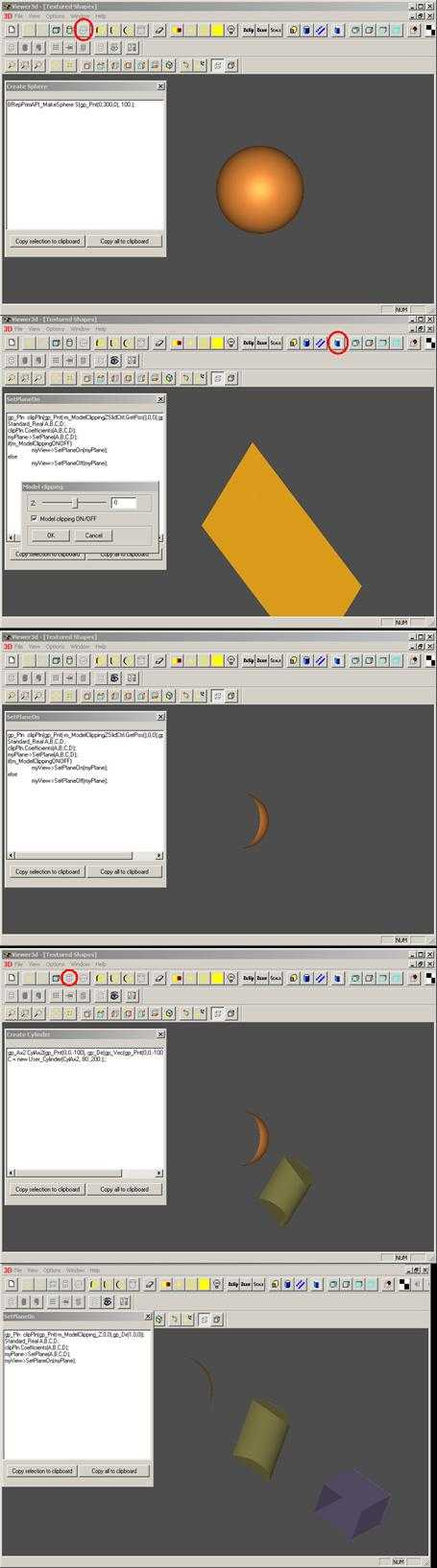

| Steps To Reproduce | Start the Viewer 3D Sample (refer to the attached picture) - Create a sphere - create a clipping plane - create a cylinder - create a box | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
Dear bugmaster, please re-test scenario on current master. The issue should be solved within patch for 0024521. |
|
|
|
|

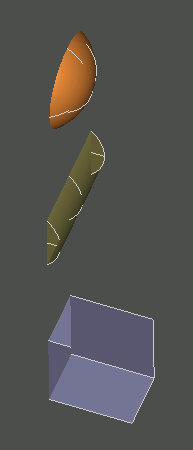

Case was tested on current master. Inner side of all the shapes is rendered. See cp_inner.gif image |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2012-07-02 17:36 | Pawel | New Issue | |
| 2012-07-02 17:36 | Pawel | Assigned To | => bugmaster |
| 2012-07-02 17:36 | Pawel | File Added: picture01.jpg | |
| 2014-02-17 15:05 | kgv | Relationship added | related to 0024521 |
| 2014-02-17 15:06 | kgv | Note Added: 0027921 | |
| 2014-02-17 15:06 | kgv | Status | new => feedback |
| 2014-02-17 15:06 | kgv | Resolution | open => fixed |
| 2014-02-17 15:06 | kgv | Target Version | => 6.7.1 |
| 2014-04-04 17:17 |
|
Target Version | 6.7.1 => 6.8.0 |
| 2014-04-14 15:30 | bugmaster | File Added: cp_inner.gif | |
| 2014-04-14 15:33 | bugmaster | Note Added: 0028825 | |
| 2014-04-14 15:33 | bugmaster | Status | feedback => tested |
| 2014-04-14 15:34 | bugmaster | Status | tested => verified |
| 2014-04-14 15:34 | bugmaster | Assigned To | bugmaster => Pawel |
| 2014-11-11 12:47 |
|
Fixed in Version | => 6.8.0 |
| 2014-11-11 12:52 |
|
Status | verified => closed |
