0023282: Wrong triangulation on cone

ID	Project	Category	View Status	Date Submitted	Last Update
0023282	Community	OCCT:Mesh	public	2012-07-14 18:24	2013-04-29 15:24

Reporter	Roman Lygin	Assigned To	~~mkv~~
Priority	normal	Severity	minor
Status	closed	Resolution	fixed
Platform	A	OS	L
Product Version	6.5.3
Target Version	6.6.0	Fixed in Version	6.6.0

Summary	0023282: Wrong triangulation on cone
Description	For cone with angle from around 90 to 180 the produced triangulation is wrong, see screenshots. The issue is reproduced with versions 6.5.0-6.5.3. If to specify an angle 181 (in the DRAW reproducer) then the triangulation is correct.
Steps To Reproduce	pcone p 50 0 100 18 #pcone p 50 0 100 90 - is also bad #pcone p 50 0 100 181 - is fine vdisplay p vsetdispmode p 1 triangles p
Tags	No tags attached.

Test case number	bugs modalg_5(010) bug23282_1, bug23282_2

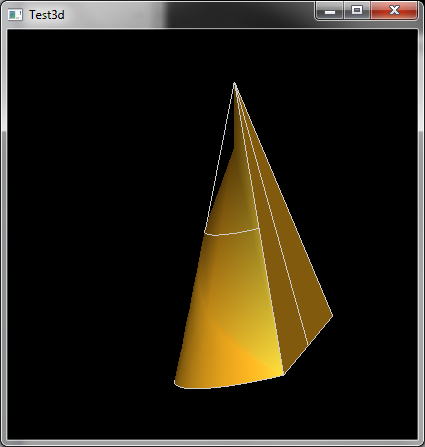

Roman Lygin 2012-07-14 18:24 developer	cone-tri1.png (44,360 bytes)

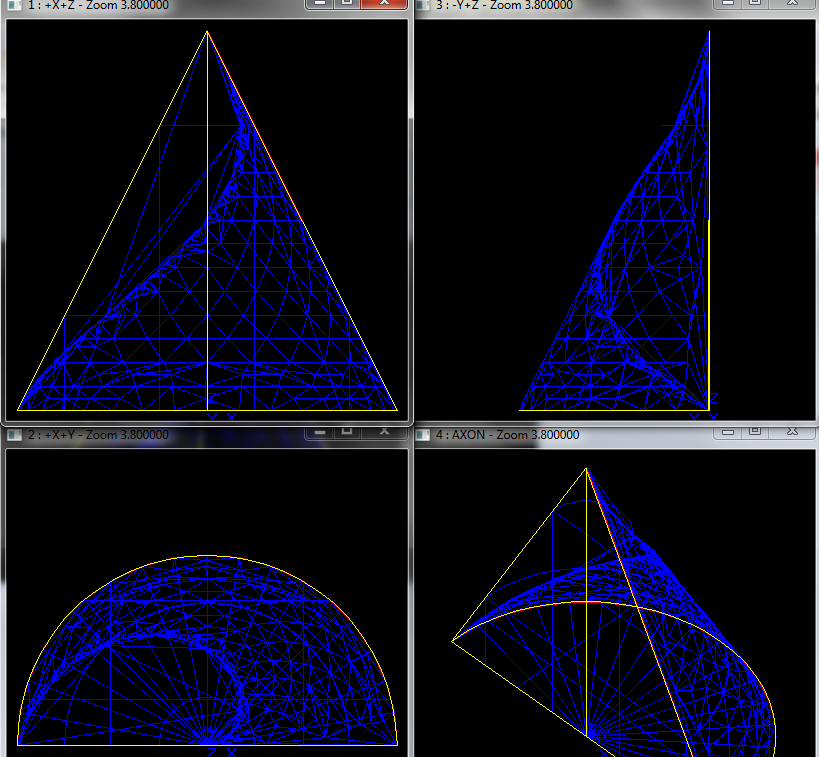

Roman Lygin 2012-07-14 18:25 developer	cone-tri2.png (138,092 bytes)

oan 2013-03-29 11:16 developer ~0023930 Last edited: 2013-03-29 11:16	Dear Bugmaster, this bug has been fixed in the context of 0022818. Please create test cases and close it, if the results are Ok.

~~mkv~~ 2013-04-03 18:02 tester ~0023986	Dear Bugmaster, Test cases bugs modalg_5(010) bug23282_1, bug23282_2 was created, tested and pushed into git-branch CR23282. These test cases are OK.

Date Modified	Username	Field	Change
2012-07-14 18:24	Roman Lygin	New Issue
2012-07-14 18:24	Roman Lygin	Assigned To	=> jgv
2012-07-14 18:24	Roman Lygin	File Added: cone-tri1.png
2012-07-14 18:25	Roman Lygin	File Added: cone-tri2.png
2012-11-09 10:46	~~abv~~	Relationship added	duplicate of 0022818
2012-11-09 10:47	~~abv~~	Category	OCCT:Modeling Algorithms => OCCT:Mesh
2013-03-29 11:16	oan	Note Added: 0023930
2013-03-29 11:16	oan	Note Edited: 0023930
2013-03-29 11:16	oan	Assigned To	jgv => bugmaster
2013-03-29 11:16	oan	Status	new => resolved
2013-03-29 11:17	oan	Status	resolved => reviewed
2013-03-29 18:14	~~mkv~~	Assigned To	bugmaster => mkv
2013-04-03 18:02	~~mkv~~	Note Added: 0023986
2013-04-03 18:03	~~mkv~~	Test case number	=> bugs modalg_5(010) bug23282_1, bug23282_2
2013-04-03 18:03	~~mkv~~	Assigned To	mkv => bugmaster
2013-04-03 18:03	~~mkv~~	Status	reviewed => tested
2013-04-04 19:49	~~abv~~	Target Version	=> 6.6.0
2013-04-05 16:39	~~mkv~~	Changeset attached	=> occt master 0691a5bb
2013-04-05 16:39	~~mkv~~	Assigned To	bugmaster => mkv
2013-04-05 16:39	~~mkv~~	Status	tested => verified
2013-04-05 16:39	~~mkv~~	Resolution	open => fixed
2013-04-23 13:35	~~aiv~~	Status	verified => closed
2013-04-29 15:24	~~aiv~~	Fixed in Version	=> 6.6.0

occt: master 0691a5bb 2013-04-03 13:12:53 ~~mkv~~ Details Diff	0023282: Wrong triangulation on cone Adding test cases for this fix	Affected Issues 0023282
	add - tests/bugs/modalg_5/bug23282_1	Diff File
	add - tests/bugs/modalg_5/bug23282_2	Diff File
