0023451: FixMissingSeam constructs intersecting wires

ID	Project	Category	View Status	Date Submitted	Last Update
0023451	Open CASCADE	OCCT:Shape Healing	public	2012-09-28 10:25	2017-07-27 18:18

Reporter	~~ssv~~	Assigned To	~~gka~~
Priority	normal	Severity	minor
Status	new	Resolution	open
Product Version	6.5.3

Summary	0023451: FixMissingSeam constructs intersecting wires
Description	FixMissingSeam functionality of Shape Healing component produces invalid topology on the attached face with internal holes (having no seam edge initially).
Steps To Reproduce	restore testface_holes.brep f fixshape res f checkshape res ===> Intersecting Wires
Tags	No tags attached.

Test case number	bugs heal bug23451

~~ssv~~ 2012-09-28 10:25 developer	testface_holes.zip (2,118,654 bytes)

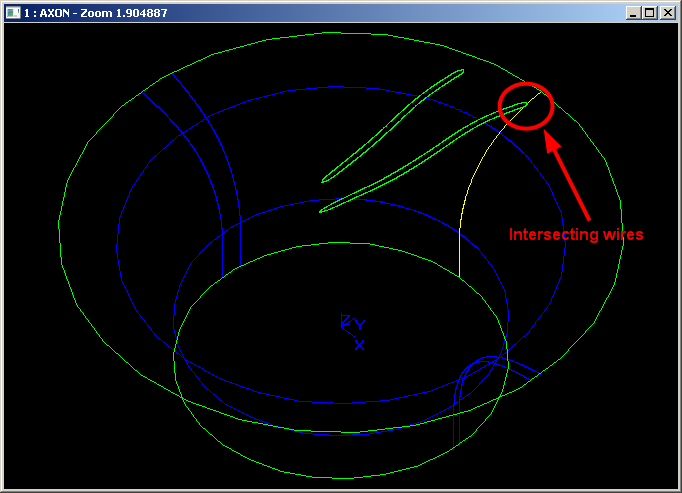

~~ssv~~ 2012-09-28 10:26 developer	screenshot_001.png (26,935 bytes)

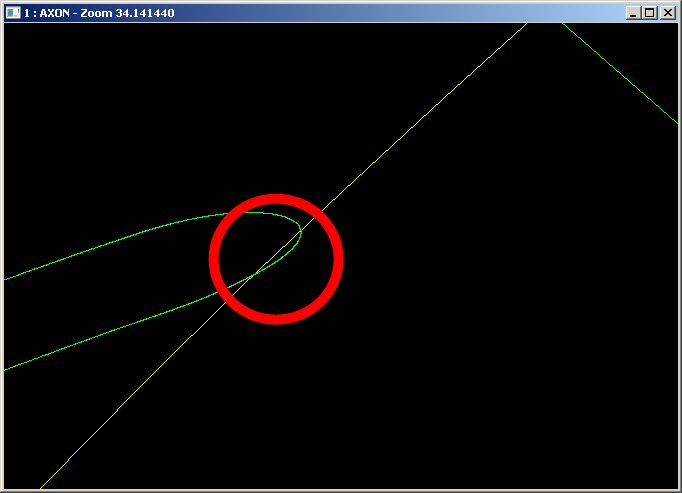

~~ssv~~ 2012-09-28 10:26 developer	screenshot_002.png (17,990 bytes)

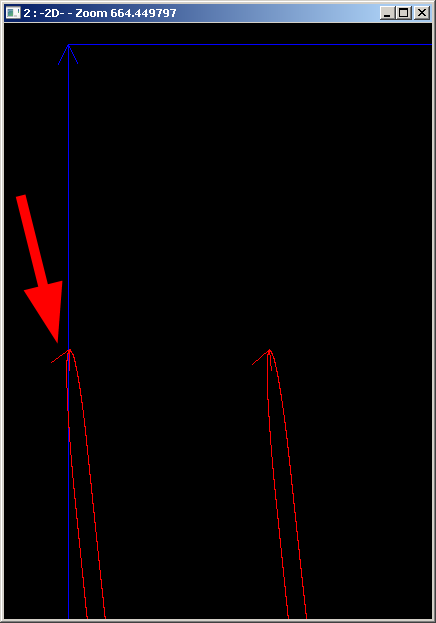

~~ssv~~ 2012-09-28 10:26 developer	screenshot_003.png (15,672 bytes)

git 2017-07-20 21:02 administrator ~0068522	Branch CR23451 has been created by mkv. SHA-1: 54da748203cbc5b9c732e9fdb7ec63f09f0cafea Detailed log of new commits: Author: mkv Date: Thu Jul 20 20:55:36 2017 +0300 Test for 0023451: FixMissingSeam constructs intersecting wires

~~mkv~~ 2017-07-27 18:18 tester ~0068815	Dear BugMaster, problem described in issue is reproduced on current state of OCCT.

Date Modified	Username	Field	Change
2012-09-28 10:25	~~ssv~~	New Issue
2012-09-28 10:25	~~ssv~~	Assigned To	=> gka
2012-09-28 10:25	~~ssv~~	File Added: testface_holes.zip
2012-09-28 10:26	~~ssv~~	File Added: screenshot_001.png
2012-09-28 10:26	~~ssv~~	File Added: screenshot_002.png
2012-09-28 10:26	~~ssv~~	File Added: screenshot_003.png
2017-07-20 21:02	git	Note Added: 0068522
2017-07-20 21:03	~~mkv~~	Test case number	=> bugs heal bug23451
2017-07-27 18:18	~~mkv~~	Note Added: 0068815
