View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0023651 | Open CASCADE | OCCT:Modeling Algorithms | public | 2012-12-19 10:01 | 2013-04-29 15:22 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | major | ||
| Status | closed | Resolution | fixed | ||
| Target Version | 6.6.0 | Fixed in Version | 6.6.0 | ||
| Summary | 0023651: Exception on fillet construction between NURBS and surface of revolution | ||||

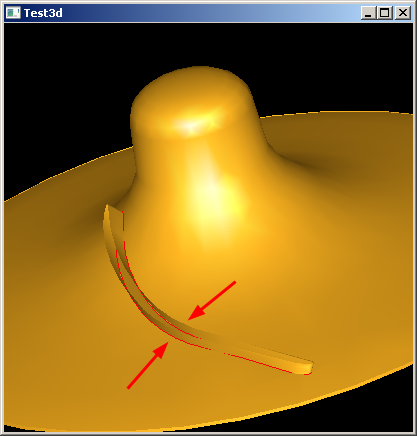

| Description | BRepFilletAPI_MakeFillet crashes when attempting to make a fillet on the attached shell. The source edges are those shared between surface of revolution and blade surface (see screenshot). | ||||
| Steps To Reproduce | restore turbine_shell_one_edge.brep a explode a e donly a a_4 fit blend res1 a 1 a_4 restore turbine_shell_one_edge.brep a explode a e donly a a_4 fit mkevol res2 a updatevol a_4 0. 1.5 0.05 1 0.45 1 0.5 1.5 0.55 2 0.95 2 1. 1.5 buildevol | ||||
| Tags | No tags attached. | ||||
| Test case number | bugs modalg(006) bug23651_1, bug23651_2 | ||||
|
|
2012-12-19 10:01 developer |
|
|
2012-12-19 10:02 developer |
|
2012-12-19 16:31 developer |
|
|
|
The branch CR23651_2 is ready for reviewing |
|
|
Reviewed |
|
|
Dear BugMaster, Branch CR23651_2 (and products from GIT master) was compiled on Linux and Windows platforms and tested. Regressions: Not detected Improvements: Not detected Testing cases: Not needed bugs modalg(006) bug23651_1, bug23651_2 - OK. |
|
occt: master ea9632bc 2013-01-18 09:42:52
|
0023651: Exception on fillet construction between NURBS and surface of revolution Adding test cases for this fix |
Affected Issues 0023651 |
|
| mod - src/ChFi3d/ChFi3d_Builder_6.cxx | Diff File | ||
| add - tests/bugs/modalg/bug23651_1 | Diff File | ||
| add - tests/bugs/modalg/bug23651_2 | Diff File | ||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2012-12-19 10:01 |
|
New Issue | |
| 2012-12-19 10:01 |
|
Assigned To | => jgv |
| 2012-12-19 10:01 |
|
File Added: turbine_shell.zip | |
| 2012-12-19 10:02 |
|
File Added: fillet_crash.png | |
| 2012-12-19 16:31 |
|
File Added: turbine_shell_one_edge.zip | |
| 2013-01-09 17:29 |
|
Note Added: 0022920 | |
| 2013-01-09 17:29 |
|
Status | new => resolved |
| 2013-01-09 17:30 |
|
Assigned To | jgv => pkv |
| 2013-01-09 18:05 |
|
Steps to Reproduce Updated | |
| 2013-01-10 06:35 |
|
Note Added: 0022923 | |
| 2013-01-10 06:36 |
|
Assigned To | pkv => mkv |
| 2013-01-10 08:49 |
|
Status | resolved => reviewed |
| 2013-01-14 17:22 |
|
Steps to Reproduce Updated | |
| 2013-01-17 14:51 |
|
Note Added: 0023002 | |
| 2013-01-17 14:55 |
|
Test case number | => bugs modalg(006) bug23651_1, bug23651_2 |
| 2013-01-17 14:55 |
|
Assigned To | mkv => bugmaster |
| 2013-01-17 14:55 |
|
Status | reviewed => tested |
| 2013-01-21 18:29 |
|
Changeset attached | => occt master ea9632bc |
| 2013-01-21 18:29 |
|
Assigned To | bugmaster => jgv |
| 2013-01-21 18:29 |
|
Status | tested => verified |
| 2013-01-21 18:29 |
|
Resolution | open => fixed |
| 2013-02-20 10:19 | bugmaster | Target Version | => 6.6.0 |
| 2013-04-23 13:36 |
|
Status | verified => closed |
| 2013-04-29 15:22 |
|
Fixed in Version | => 6.6.0 |
