0023969: It's impossible to display shape in 3dviewer. Wrong displaying in axo.

ID	Project	Category	View Status	Date Submitted	Last Update
0023969	Open CASCADE	OCCT:Data Exchange	public	2013-05-17 11:49	2014-11-11 12:57

Reporter	apn	Assigned To	bugmaster
Priority	normal	Severity	minor
Status	closed	Resolution	fixed
Platform	Windows	OS	VC++ 2008
Target Version	6.8.0	Fixed in Version	6.8.0

Summary	0023969: It's impossible to display shape in 3dviewer. Wrong displaying in axo.

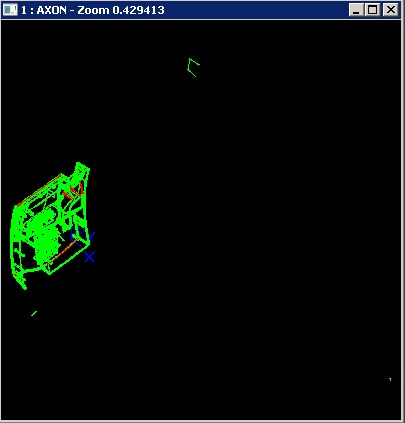

Description	Problem appears in test case de iges_2 H9 on current state of master. It's impossible to display shape res_2 in 3dviewer on Windows platform. Also there are no image displaying shape is axo. But using command "isos 0" we get image and some artifacts (screenshot is attached).
Steps To Reproduce	isos 0 test de iges_2 H9
Tags	No tags attached.

Test case number	bugs xde bug23969

apn 2013-05-17 11:50 administrator	H9.jpg (22,210 bytes)

ika 2014-07-23 17:28 reporter	23969.png (1,698,654 bytes)

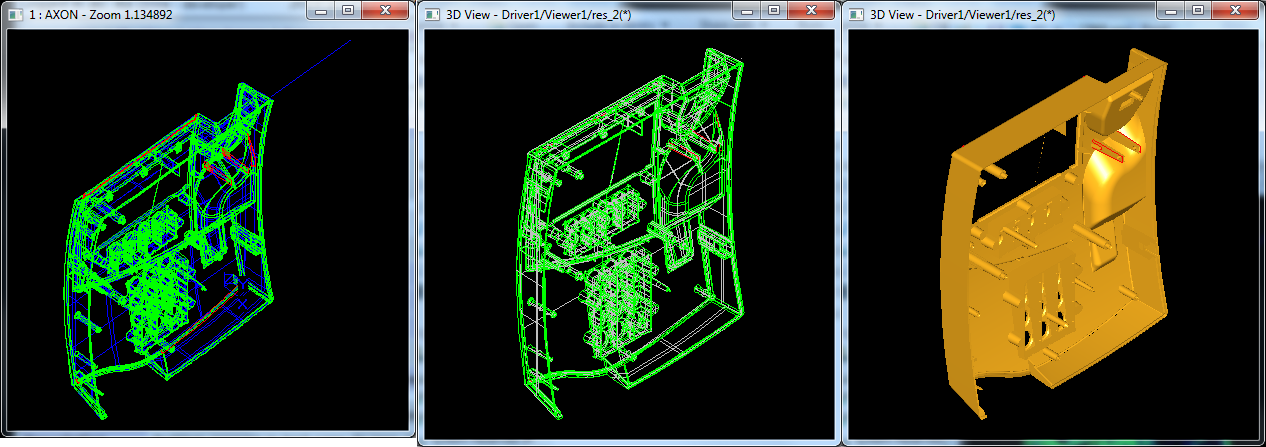

ika 2014-07-23 17:32 reporter ~0030396	Dear Bugmaster, On current master problem is not reproduced (picture 23969.png with all screenshots is attached) Could you please close this issue?

bugmaster 2014-07-24 11:49 administrator ~0030404	Mikhail, Please create testing case

~~apv~~ 2014-07-28 17:35 tester ~0030455 Last edited: 2014-07-28 17:37	Test-case is created

Date Modified	Username	Field	Change
2013-05-17 11:49	apn	New Issue
2013-05-17 11:49	apn	Assigned To	=> gka
2013-05-17 11:49	apn	Test case number	=> de iges_2 H9
2013-05-17 11:50	apn	File Added: H9.jpg
2013-05-17 11:50	apn	Status	new => assigned
2014-07-23 17:28	ika	File Added: 23969.png
2014-07-23 17:32	ika	Note Added: 0030396
2014-07-23 17:32	ika	Assigned To	gka => bugmaster
2014-07-23 17:32	ika	Status	assigned => feedback
2014-07-24 11:48	bugmaster	Assigned To	bugmaster => mkv
2014-07-24 11:49	bugmaster	Note Added: 0030404
2014-07-25 16:42	~~mkv~~	Assigned To	mkv => apv
2014-07-28 17:32	~~apv~~	Test case number	de iges_2 H9 => bugs xde bug23969
2014-07-28 17:35	~~apv~~	Note Added: 0030455
2014-07-28 17:35	~~apv~~	Assigned To	apv => bugmaster
2014-07-28 17:35	~~apv~~	Status	feedback => tested
2014-07-28 17:35	~~apv~~	Note Edited: 0030455
2014-07-28 17:37	~~apv~~	Note Edited: 0030455
2014-07-28 17:41	~~apv~~	Target Version	=> 6.8.0
2014-08-01 14:55	bugmaster	Changeset attached	=> occt master 87072296
2014-08-01 14:55	bugmaster	Status	tested => verified
2014-08-01 14:55	bugmaster	Resolution	open => fixed
2014-11-11 12:46	~~aiv~~	Fixed in Version	=> 6.8.0
2014-11-11 12:57	~~aiv~~	Status	verified => closed

occt: master 87072296 2014-07-31 09:20:05 ~~apv~~ Committer: bugmaster Details Diff	0023969: It's impossible to display shape in 3dviewer. Wrong displaying in axo. Adding test case		Affected Issues 0023969
	add - tests/bugs/xde/bug23969		Diff File
