View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0025063 | Open CASCADE | OCCT:Visualization | public | 2014-07-09 13:41 | 2019-06-25 19:52 |
| Reporter | kgv | Assigned To | bugmaster | ||
| Priority | high | Severity | major | ||
| Status | closed | Resolution | fixed | ||
| Target Version | 6.8.0 | Fixed in Version | 6.8.0 | ||
| Summary | 0025063: Visualization - 2D objects are not displayed at some camera positions | ||||
| Description | Two issues occurs within 2D objects - camera frustum become extremely thin leading to broken (missing) presentation and rotation, and FPE exception goes from OpenGl_BVHTreeSelector (leading to application crash):
Standard_ShortReal OpenGl_BVHTreeSelector::SignedPlanePointDistance (const OpenGl_Vec4& theNormal,
const OpenGl_Vec4& thePnt)
{
const Standard_ShortReal aNormLength = std::sqrt (theNormal.x() * theNormal.x()
+ theNormal.y() * theNormal.y()
+ theNormal.z() * theNormal.z());
const Standard_ShortReal anInvNormLength = 1.0f / aNormLength;
aNormLength is zero in this case. | ||||
| Steps To Reproduce | pload MODELING VISUALIZATION vinit vtop vline l -90 -90 130 90 90 130 vfit | ||||
| Tags | No tags attached. | ||||
| Test case number | bugs vis(004) bug25063 | ||||
|
| related to | 0023400 | closed | bugmaster | Community | Triangulation of thin ring contains gap |
| related to | 0024307 | closed | apn | Open CASCADE | TKOpenGl - efficient culling of large number of presentations |
| parent of | 0029191 | closed | kgv | Open CASCADE | Visualization - viewer rotations are not smooth |
| related to | 0029837 | closed | bugmaster | Open CASCADE | Visualization, Graphic3d_Camera - Fit All operation works incorrectly on flat object |
|
|
|
|
|
|
Dear kgv, please take a look at the patch. |
|
|
Please test the patch. |
|
|
Dear BugMaster, Branch CR25063 from occt git-repository (and master from products git-repository) was compiled on Linux and Windows platforms and tested. SHA-1: be8b965285e1d0fabc4cf880c635787dcd8a79f4 Number of compiler warnings: occt component : Linux: 15 (15 on master) Windows: 0 (0 on master) products component : Linux: 11 (11 on master) Windows: 2 (2 on master) Regressions/Differences: No regressions/differences Testing cases: http://occt-tests/CR25063-master-occt/Debian60-64/bugs/vis/bug25063.html http://occt-tests/CR25063-master-occt/Windows-32-VC9/bugs/vis/bug25063.html bugs vis(004) bug25063: OK Testing on Linux: Total MEMORY difference: 352626012 / 352298144 Total CPU difference: 53569.63000000009 / 54524.60999999987 Testing on Windows: Total MEMORY difference: 377760636 / 378502168 Total CPU difference: 41164.125 / 46775.625 There are no differences in images found by testdiff. |
|
|
Branch CR25063 has been updated by mkv. SHA-1: 815bd45207555337b3c9dbcb55685c043f6bf744 |
|
|
Branch CR25063 has been deleted by inv. SHA-1: 815bd45207555337b3c9dbcb55685c043f6bf744 |
|
occt: master 3c648527 2014-07-17 07:31:29
Committer: bugmaster Details Diff |
0025063: Visualization - 2D objects are not displayed at some camera positions Minimum thresolds introduced to zfit operation and to camera SetDistance() method. Test case for issue CR25063 |
Affected Issues 0025063 |
|
| mod - src/Graphic3d/Graphic3d_Camera.cxx | Diff File | ||
| mod - src/OpenGl/OpenGl_BVHTreeSelector.cxx | Diff File | ||
| mod - src/V3d/V3d_View.cxx | Diff File | ||
| add - tests/bugs/vis/bug25063 | Diff File | ||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2014-07-09 13:41 | kgv | New Issue | |
| 2014-07-09 13:41 | kgv | Assigned To | => kgv |
| 2014-07-09 13:42 | kgv | Assigned To | kgv => san |
| 2014-07-09 13:42 | kgv | Assigned To | san => vpa |
| 2014-07-09 13:42 | kgv | Assigned To | vpa => duv |
| 2014-07-09 13:42 | kgv | Priority | normal => high |
| 2014-07-09 13:42 | kgv | Relationship added | related to 0023400 |
| 2014-07-09 13:43 | kgv | Relationship added | related to 0024307 |

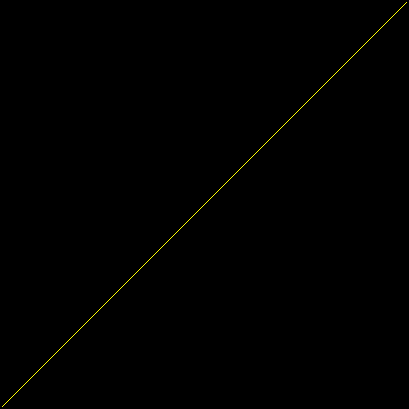

| 2014-07-09 14:37 | kgv | File Added: line_671.png | |

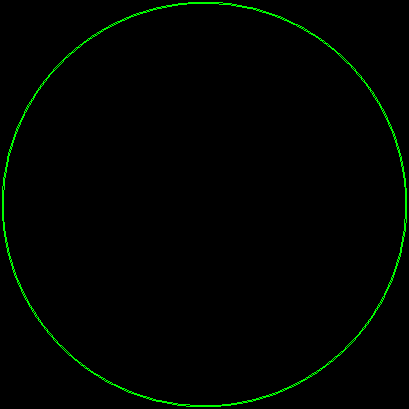

| 2014-07-09 14:37 | kgv | File Added: circle_671.png | |
| 2014-07-10 19:10 |
|
Note Added: 0030064 | |
| 2014-07-10 19:10 |
|
Assigned To | duv => kgv |
| 2014-07-10 19:10 |
|
Status | new => resolved |
| 2014-07-10 20:07 | kgv | Note Added: 0030065 | |
| 2014-07-10 20:07 | kgv | Assigned To | kgv => bugmaster |
| 2014-07-10 20:07 | kgv | Status | resolved => reviewed |
| 2014-07-11 16:09 |
|
Assigned To | bugmaster => mkv |
| 2014-07-14 19:12 |
|
Note Added: 0030141 | |
| 2014-07-14 19:12 |
|
Test case number | => bugs vis(004) bug25063 |
| 2014-07-14 19:12 |
|
Assigned To | mkv => bugmaster |
| 2014-07-14 19:12 |
|
Status | reviewed => tested |
| 2014-07-14 19:13 | git | Note Added: 0030142 | |
| 2014-07-22 15:13 | bugmaster | Changeset attached | => occt master 3c648527 |
| 2014-07-22 15:13 | bugmaster | Status | tested => verified |
| 2014-07-22 15:13 | bugmaster | Resolution | open => fixed |
| 2014-07-22 15:57 | git | Note Added: 0030314 | |
| 2014-11-11 12:46 |
|
Fixed in Version | => 6.8.0 |
| 2014-11-11 12:53 |
|
Status | verified => closed |
| 2017-10-06 15:08 | kgv | Relationship added | parent of 0029191 |
| 2019-06-25 19:52 |
|
Relationship added | related to 0029837 |
