View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0025541 | Community | OCCT:Modeling Algorithms | public | 2014-12-01 15:57 | 2023-08-01 15:07 |
| Reporter | Vico Liang | Assigned To | |||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2013 | ||
| Product Version | 6.8.0 | ||||
| Target Version | Unscheduled | ||||
| Summary | 0025541: BRepOffsetAPI_MakeOffset can't make rectangular end cap even using GeomAbs_Intersection mode. | ||||

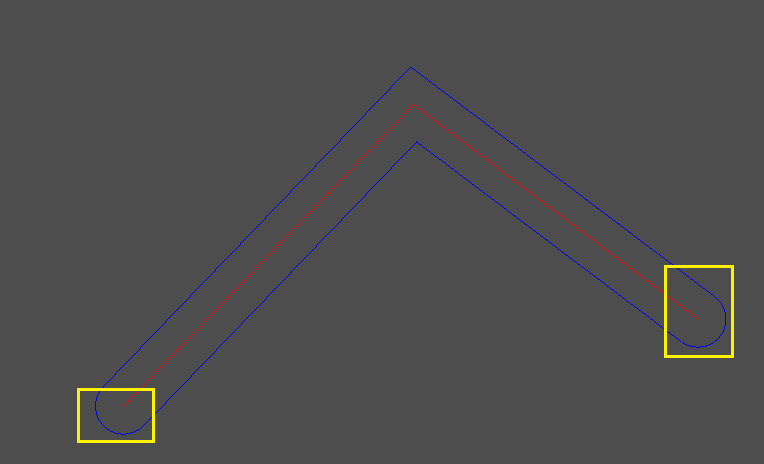

| Description | Offset a wire consisting of two connected line segment with GeomAbs_Intersection option to make a closed wire. The result is that the end cap is still round. The expected result might be rectangular end cap. The function calling likes this: BRepOffsetAPI_MakeOffset aMakeOffset(aWire, GeomAbs_Intersection, Standand_False); See the result from the attached picture. | ||||
| Steps To Reproduce | Or this is a request to support the end cap option in construction method. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2014-12-01 15:57 | Vico Liang | New Issue | |
| 2014-12-01 15:57 | Vico Liang | Assigned To | => msv |
| 2014-12-01 15:57 | Vico Liang | File Added: MakeOffset_RoundEndCap.png | |
| 2015-10-28 18:02 |
|
Target Version | 7.0.0 => 7.1.0 |
| 2016-10-28 17:03 |
|
Target Version | 7.1.0 => 7.2.0 |
| 2017-07-21 11:34 |
|
Target Version | 7.2.0 => 7.3.0 |
| 2017-12-05 17:01 |
|
Target Version | 7.3.0 => 7.4.0 |
| 2019-08-12 16:37 |
|
Target Version | 7.4.0 => 7.5.0 |
| 2020-09-14 22:56 |
|
Target Version | 7.5.0 => 7.6.0 |
| 2021-08-29 18:51 |
|
Target Version | 7.6.0 => 7.7.0 |
| 2022-10-24 10:43 |
|
Target Version | 7.7.0 => 7.8.0 |
| 2023-08-01 15:07 | dpasukhi | Target Version | 7.8.0 => Unscheduled |
