View Issue Details

IDProjectCategoryView StatusDate SubmittedLast Update
0025994CommunityOCCT:Modeling Algorithmspublic2015-03-31 16:292017-08-08 13:11
ReporterVico Liang Assigned Tobugmaster
PrioritynormalSeverityminor
Status closedResolutionfixed
PlatformWindowsOSVC++ 2013
Target Version7.3.0Fixed in Version7.0.0
Summary0025994: Boolean fuse result in invalid result.
DescriptionThere are two solids in file body.brep and wing.brep, load them from the files.
The code snippet to do the boolean fuse operation are as below:
        TopoDS_Shape aBody = ...
        TopoDS_Shape aWing = ...
        BRepAlgoAPI_Fuse aMakeFuse(aBody, aWing);

The generated result can pass check of following but the result is invalid:
        BRepCheck_Analyzer aCheck(aMakeFuse.Shape());
Steps To Reproducerestore body.brep b
restore wing.brep w
bfuse r b w
checkshape r
TagsNo tags attached.
Test case numberbugs modalg_7 bug25994

Attached Files

Activities

Vico Liang

2015-03-31 16:30

developer

body.brep (318,813 bytes)

Vico Liang

2015-03-31 16:31

developer

wing.brep (140,190 bytes)

Vico Liang

2015-03-31 16:32

developer


Vico Liang

2015-03-31 16:32

developer


msv

2015-03-31 17:18

developer   ~0039049

Indeed, result looks ugly. However, in the current master version BRepCheck_Analyzer gives the error "BRepCheck_BadOrientationOfSubshape".

apv

2017-08-08 13:11

tester   ~0069198

Dear BugMaster,

Problem described in issue is not reproduced on current state of OCCT.
Problem has been solved in OCCT7.0.0.

Issue History

Date Modified Username Field Change
2015-03-31 16:29 Vico Liang New Issue
2015-03-31 16:29 Vico Liang Assigned To => msv
2015-03-31 16:30 Vico Liang File Added: body.brep
2015-03-31 16:31 Vico Liang File Added: wing.brep

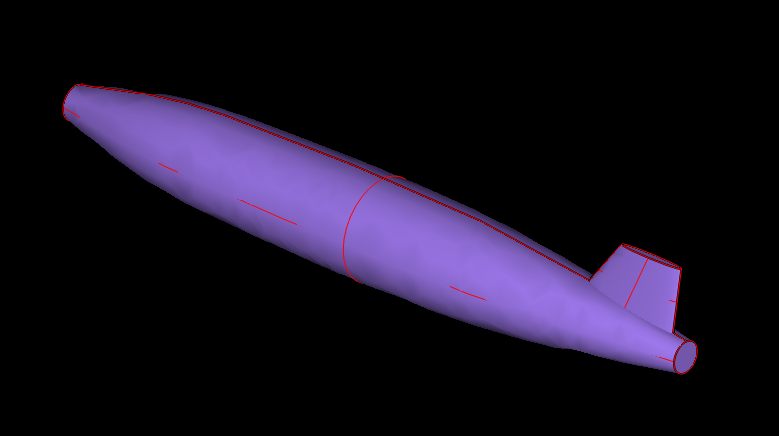

2015-03-31 16:32 Vico Liang File Added: body_wing.png

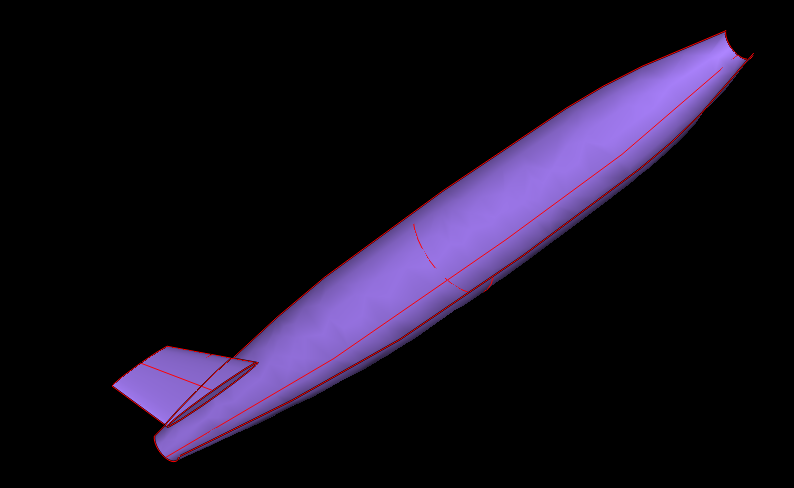

2015-03-31 16:32 Vico Liang File Added: body_wing_fuse_bug.png
