View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0026258 | Open CASCADE | OCCT:Modeling Algorithms | public | 2015-05-22 17:06 | 2023-08-01 15:08 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | minor | ||
| Status | assigned | Resolution | open | ||
| Target Version | Unscheduled | ||||
| Summary | 0026258: Modeling Algorithms - Boolean operations: pipe on fillet | ||||
| Description | Attached script constructs a box with fillet on the top side. A pipe is constructed around this fillet. Fillet has a radius 16. Wire-spine of the pipe is located on fillet. Pipe has a radius 8. Cut operation had failed on these arguments with "ErrorStatus: 14" | ||||
| Steps To Reproduce | source BoxWithPipeOnFillet.tcl bcut res b p | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
Script contain an error. Prof has type edge, therefore mkplane is not build. |
|
2015-05-22 19:09 developer |
BoxWithPipeOnFillet.tcl (528 bytes) |
|
|
The following commands will correct the end of the script: mkedge prof prof shape pw w add prof pw mkplane prof pw pipe p w prof bcut r b p donly r;axo;fit |
|
2015-05-22 19:11 developer |
|
|

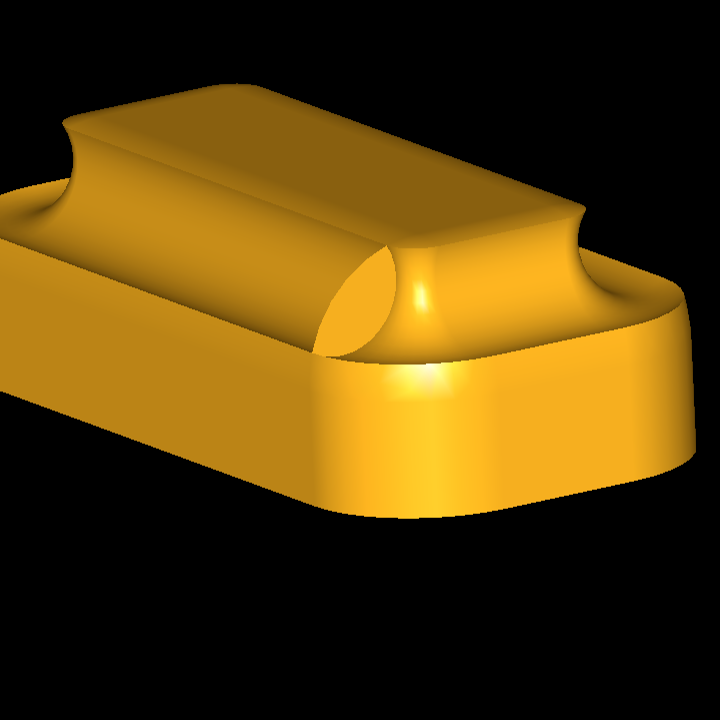

I've uploaded tcl script with changes. Yes, now it works, but the resultant shape contains strange face which was not been cut. |
|
|
The strange face is indeed two coincided faces. They are created due to incorrect pipe construction. We can see that pipe is not closed and contains a cover in between. So, the bug should be addresses to pipe algorithm. |
