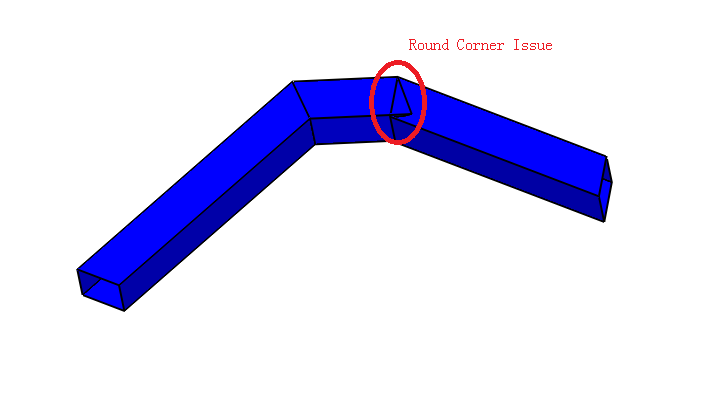

| Summary | 0026274: BRepOffsetAPI_MakePipeShell build an invalid round corner Shell. | ||||
| Description | Please see the uploaded data files and images: Below codesnippets can be help to build the PipeShell. TopoDS_Shape aSpine = // load from WirePath.brep TopoDS_Shape aProfile = // load from Rectangle.brep BRepOffsetAPI_MakePipeShell aMakePipe(TopoDS::Wire(aSpine)); aMakePipe.Add(aProfile,Standard_False, Standard_False); aMakePipe.SetTransitionMode(BRepBuilderAPI_RoundCorner); aMakePipe.Build(); | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
Rectangle.brep (976 bytes) |
|
|
WirePath.brep (738 bytes) |
|
|
|
|
|
|
|
|

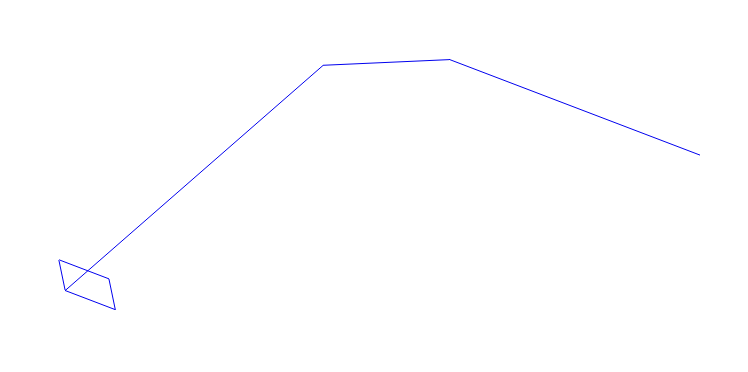

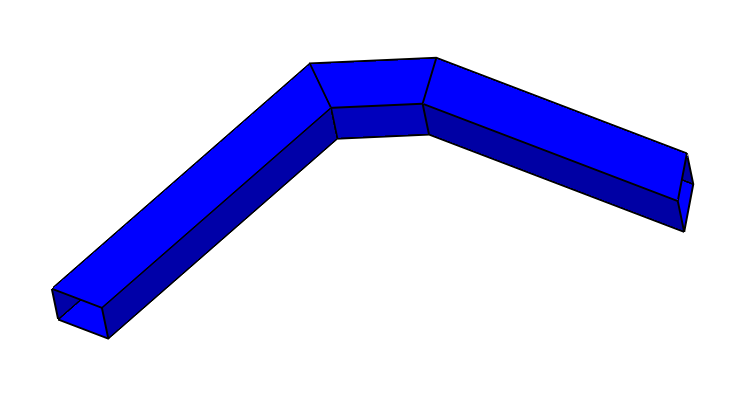

The "RightConer" mode works well, see the images for details. |
