| Summary | 0026295: Sweep fails with BRepFill_ContactOnBorder | ||||
| Description | Trying to sweep a section along a given path with an auxillery spine fails when the contact type is set to BRepFill_ContactOnBorder. It works with BRepFill_NoContact. | ||||
| Steps To Reproduce | pload ALL restore section.brep restore profile1.brep restore profile2.brep explode section explode profile1 explode profile2 mksweep profile1_1 addsweep section_1 -T -R setsweep -G profile2_1 0 2 buildsweep sw -S An exception was caught 0x7f528391c327 : Standard_NullObject: BRepAdaptor_Curve::No geometry ** Exception ** 0x7f528391c327 : Standard_NullObject: BRepAdaptor_Curve::No geometry | ||||

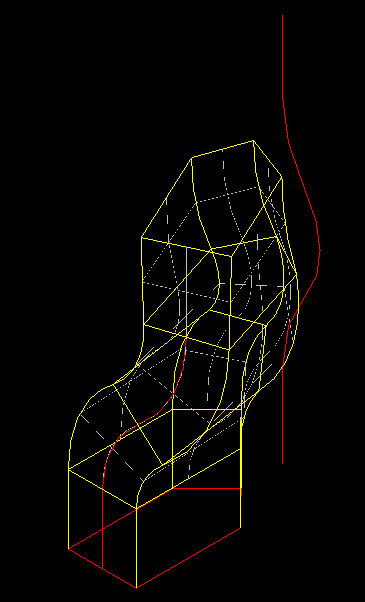

| Additional information and documentation updates | The picture shows the section, the profiles and the sweep with BRepFill_NoContact as build with: setsweep -G profile2_1 0 0 The needed brep files are attached | ||||
| Tags | No tags attached. | ||||
| Test case number | bugs modalg_7 bug26295 | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The crash is gone in OCC 7.2 beta. But the sweep is still not created: Buildsweep : Not Done BuildSweep : One section can not be in contact with the guide However, from the reference documentation of BRepOffsetAPI_MakePipeShell I would suspect that the section gets scaled to touch the guide. It states: "the auxiliary spine becomes a boundary of the swept surface and the width of section varies along the path." This seems to not be the case. Maybe a clearification of the documentation is needed. |
|
|
|
|
|
OCC7.2beta: For testing I moved the guide to start exactly at the tip of the section (uploaded as profile3). An access violation now occurs and the build sweep does not follow the guide: pload ALL restore section.brep restore profile1.brep restore profile3.brep explode section explode profile1 explode profile3 mksweep profile1_1 addsweep section_1 -T -R setsweep -G profile3_1 0 2 An exception was caught 00000000020A4FC0 : OSD_Exception_ACCESS_VIOLATION: ACCESS VIOLATION at address 0x0000000000000038 during 'READ' operation** Exception ** 00000000020A4FC0 : OSD_Exception_ACCESS_VIOLATION: ACCESSVIOLATION at address 0x0000000000000038 during 'READ' operation buildsweep sw -S |
|
|
Problem described in issue is reproduced on current state of OCCT. |
