View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0026409 | Community | OCCT:Modeling Algorithms | public | 2015-07-08 14:18 | 2015-07-08 18:04 |
| Reporter | Vico Liang | Assigned To | bugmaster | ||
| Priority | normal | Severity | feature | ||
| Status | closed | Resolution | no change required | ||
| Product Version | 6.9.0 | ||||
| Summary | 0026409: Merge nearby faces which sharing the same surface after boolean fuse operation. | ||||

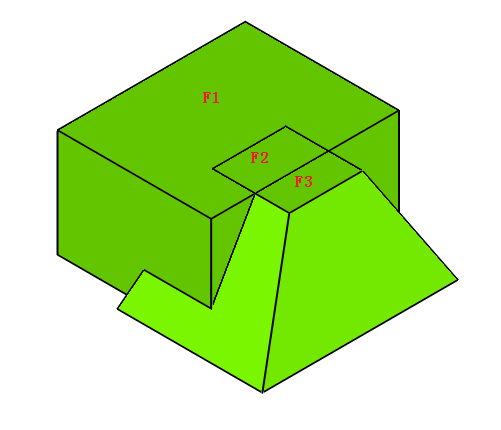

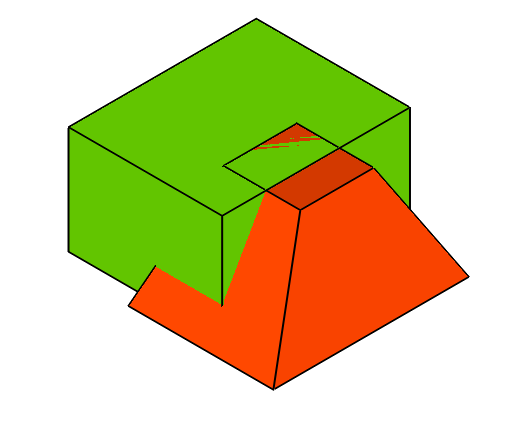

| Description | The picture uploaded will show the issue of boolean fuse operation. A fuse operation performs on a box and a wedge. The top and the bottom planar faces of the two objects are overlapped. After boolean fuse operation, the result object top is consist of three faces F1, F2 and F3. The result is valid but it's not perfect. It would be nice to merge these faces to form a larger face. You know that other OCCT competitors (ACIS and Parasolid) both make such faces meged perfectly. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
|
|
Please try using the class ShapeUpgrade_UnifySameDomain.cdl |
|
|
|
|
Dear msv, ShapeUpgrade_UnifySameDomain resolved my problem perfectly. It's appreciated for your help. |
|
|

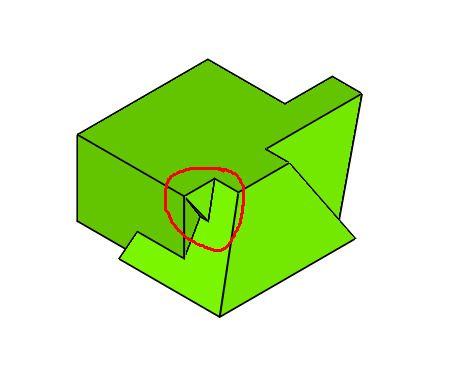

Dear Vico, I have noticed an artifact in you result picture. Is it a problem after unifying? If so, could you please create a new issue for that? |
|
2015-07-08 17:34 developer |
|
|
|
|

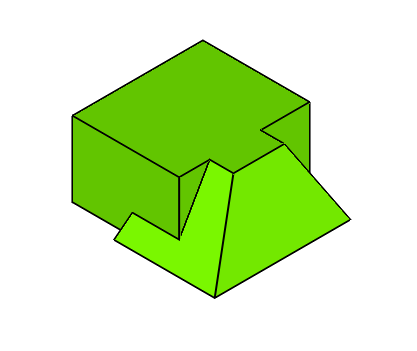

Dear msv, the image after unifying is not matched with the first image before fusing. I added another wedge object to fuse in the result. The result is correct and i have uploaded another file to demo the real result. I'm sorry to make trouble for you. |
|
|
Dear bugmaster, please close this bug. |
