| Summary | 0026740: Modeling Algorithms - Incorrect result of blend operation in "blend simple X4" test case | ||||

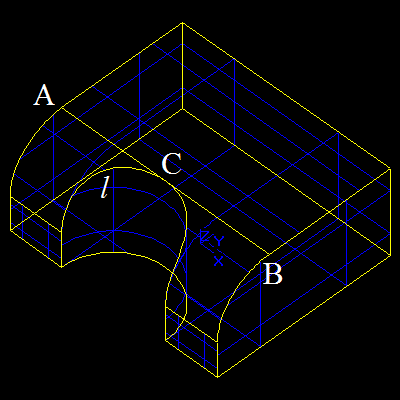

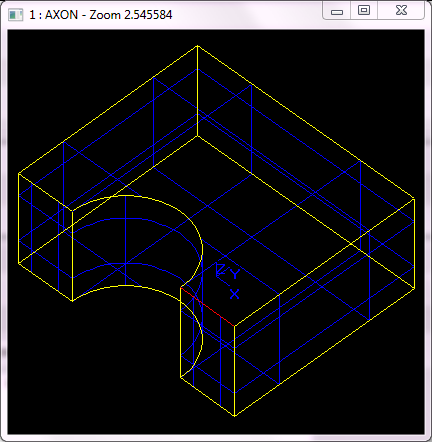

| Description | Theoretically, curve l must tangent line AB in point C (see master_result.png attached picture). Therefore, it is necessary for resulting shape to have a vertex in point C in order to be valid. This vertex is absence. More over, if we insert this vertex in the place C then the part of the current result from A to C must be absence (i.e. the filet must be made for red highlighted edge in source_shape.png file only). | ||||
| Steps To Reproduce | test blend simple X4 | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| related to | 0026675 | closed | bugmaster | Open CASCADE | Eliminate normalization of coordinates in ApproxInt package |
| related to | 0026907 | assigned | Open CASCADE | ChFi3d_Builder algorithm uses old Boolean operations: wrong processing of shapes with seam and degenerated edges | |
| related to | 0028575 | assigned | Open CASCADE | Removal of the old Boolean Operations algorithm - BRepAlgo_BooleanOperation | |
| related to | 0026655 | new | Open CASCADE | ChFi3d_Builder algorithm fails to build fillets if some input edges connect with seam edges |
|
2015-10-01 15:57 developer |
|
2015-10-01 15:58 developer |
|
|
A few words about validity the result in terms of BRepCheck algorithm. Draw[]> explode result f Draw[]> explode result_3 e Draw[]> xdistef result_3_5 result_3 #Max distance = 0.0025028007416767954 Edge rr_3_5 is not valid in terms of same-parameter (it is valid in terms of BRepCheck algorithm because it has big tolerance). I.e. its 2D- and 3D-curve are not matched each other. As result, 2D-curve of result_3_5 does not tangent rr_3_2 edge (despite it must do it). Consequently, the validity of the result is pure chance. I tried to make more precise filet-edge with change some parameters of IntWalk_PWalking algorithm (function ChFi3d_ComputeCurves(...), line "IntWalk_PWalking IntKK(S1,S2,tol3d,tol3d,fleche,Step)"). As result, I obtained an edge with maximal distance between 2D- and 3D-curve approximately 1.0e-13. After that, BRepCheck algorithm returns "BRepCheck_SelfIntersectingWire". The main reason is the vertex is absence (see bug description). |
|
|
Other remarks. 1. Firstly, the intersection edge (result_3_5 in previous message) is found as result of GeomInt_IntSS algorithm between two cylinders. It returns two intersection line, which are connected in point C. However, ChFi3d_Builder does not apply it to make fillet. Therefore, it rebuilds intersection line with IntWalk_PWalking algorithm and obtains single line as result. 2. If we insert this vertex in the place C then we will obtain filleted face between C and B only (see master_result.png and bug description). For obtaining result shown in the picture master_result.png we should add another edge to the arguments of "blend" DRAW-command. On the current MASTER this operation leads to exception. |
|
|
I have checked described situation on OCCT 6.7.0 and have obtained as same as result. |
