| Summary | 0026767: Lofting Issues with BRepOffsetAPI_ThruSections | ||||

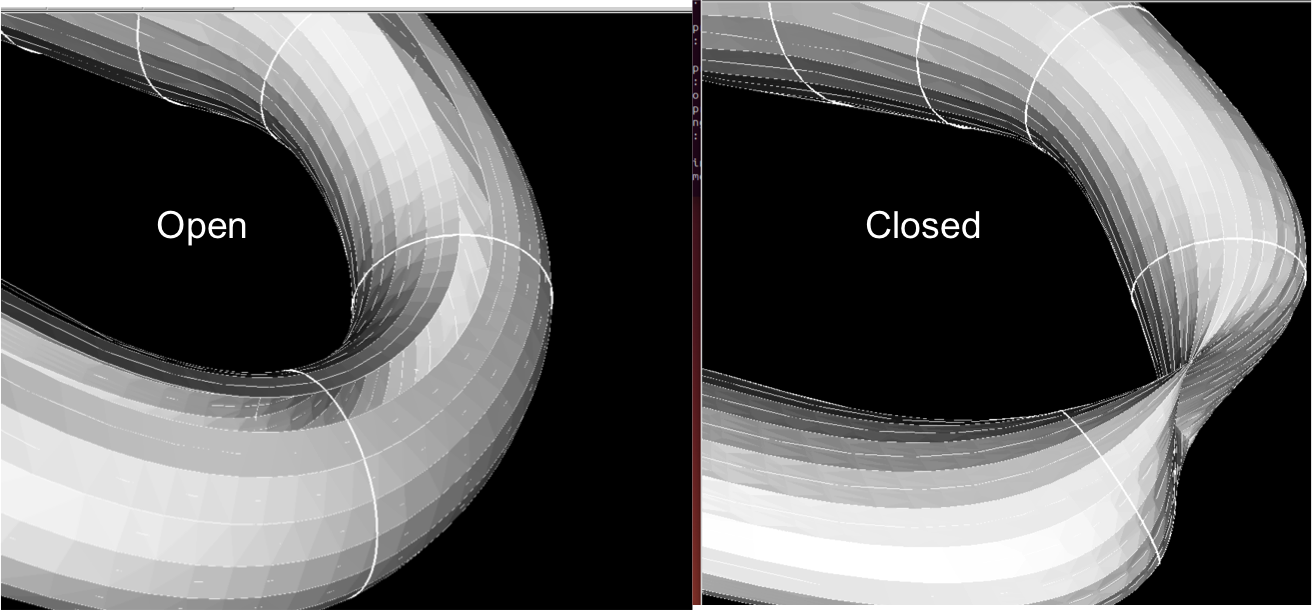

| Description | The Attached image helps to show the issue. I am seeing weird issues when trying to loft a solid thru multiple wires of the same number of points. They are not perfectly circular, but pretty close. When I do not close the wires (i.e. add the last edge between the first and last point of the wire), the loft looks like exactly what I would want, just with the missing section. Then, when I add the last edge for each wire, there are weird kinks in the loft at multiple location. Looking at the open wires loft, it seems like it shouldn't be a problem to add the last edge. Any help in resolving this issue would be helpful! | ||||
| Steps To Reproduce | Wires that are not closed and create a winding loft. Then the same wires but closed. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
Dear updega2, it would be fine if you attached here the input data. Steps to reproduce in Draw are also desirable. |
|
|
Hey msv, thanks for the reply. I figured out the issue. I was able to fix the issue by turning off the CheckCompatibility flag. Thanks! |
|
|
OK. Dear bugmaster, please close this bug. |
