0026900: Wedge symetric chamfer results in wrong result

ID	Project	Category	View Status	Date Submitted	Last Update
0026900	Community	OCCT:Modeling Algorithms	public	2015-11-19 03:59	2023-08-01 15:08

Reporter	Vico Liang	Assigned To	~~jgv~~
Priority	normal	Severity	minor
Status	assigned	Resolution	open
Product Version	6.9.1
Target Version	Unscheduled

Summary	0026900: Wedge symetric chamfer results in wrong result

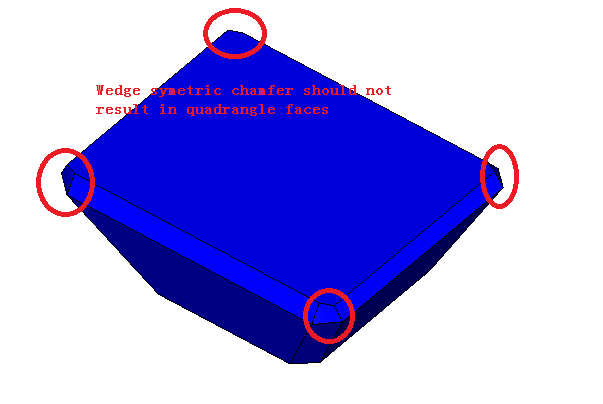

Description	Below code snippet is to chamfer all edges of a wedge. TopoDS_Shape aWedge = // Load from Wedge.brep BRepFilletAPI_MakeChamfer aMakeChamder(aWedge); foreach(TopoDS_Edge anEdge : AllWedgeEdges) { aMakeChamder.Add(2.0, 2.0, anEdge, aFaceOfEdge); } The result is wrong, there are quadrangle faces in the bottom face corners. It should be all triangle planar faces.
