Summary0026973: Visualization - selection of entities hidden by clipping planes is broken

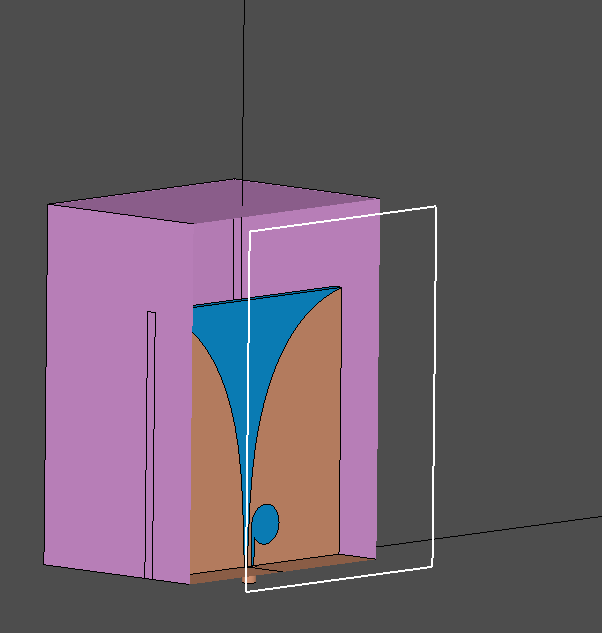

DescriptionParts, hidden by clipping planes, are detected and highlighted instead of visible object.
See related forum topic: http://www.opencascade.com/content/possible-bug-visualization-module
Steps To Reproduce
pload MODELING VISUALIZATION
vinit View1
vclear
vaxo
vsetdispmode 1
box b 1 1 1
vdisplay b
vfit

vclipplane create pln
vclipplane set pln view Driver1/Viewer1/View1
vclipplane change pln equation 0 1 0 -0.5

vselmode b 4 1
vmoveto 200 140

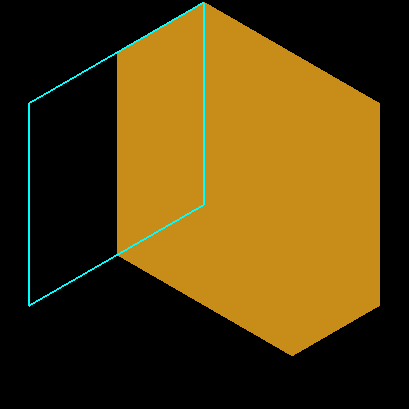

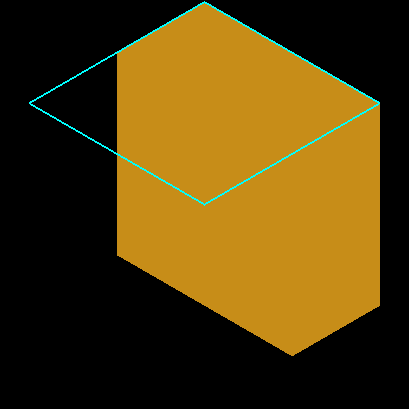

Actual result: wrong face is highlighted (which is clipped within specified cursor position).
TagsNo tags attached.
Test case numberbugs vis bug26973
