View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0027837 | Community | OCCT:Modeling Algorithms | public | 2016-09-04 09:24 | 2016-12-09 16:41 |
| Reporter | Roman Lygin | Assigned To | bugmaster | ||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | no change required | ||
| Product Version | 7.0.0 | ||||
| Target Version | 7.1.0 | Fixed in Version | 7.1.0 | ||
| Summary | 0027837: Wrong computation of inertia axes for equal sided box | ||||

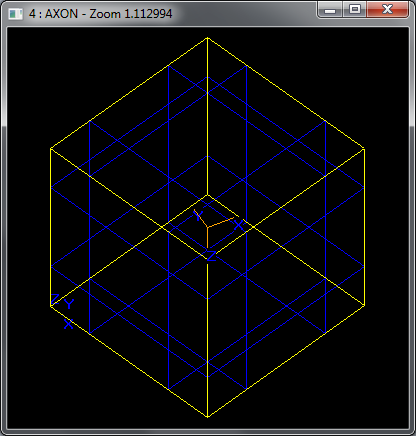

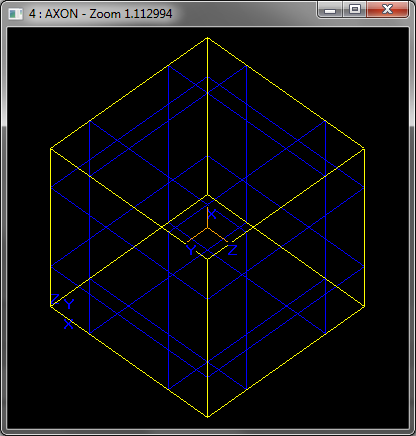

| Description | Inertia axes are incorrectly computed for the box with equal sides. At the same time computation is correct if the difference exists and is tiny (e.g. 1e-4mm with length of 200mm). Perhaps there is some instability or round-off error, etc. Anyway the skewed result is very different from the expected - instead of being directed along XYZ axes the wrong axes are directed along quadrant diagonals - see screenshots. | ||||
| Steps To Reproduce | box b 200.0001 200 200 vprops b #OK (1e-4) box b 200 200 200 vprops b #wrong box b 200.00001 200 200 vprops b #wrong (1e-5) | ||||
| Tags | No tags attached. | ||||
| Test case number | Nor requared | ||||
|
|
|
|
|
|
|
The cube has a center of symmetry (as an opposite to a box having different sides). So, any axis passing through the center is a principal axis. See the following article, which confirms this statement: http://physics.stackexchange.com/questions/153277/why-are-the-principal-axes-about-the-center-of-mass-of-a-cube-perpendicular-to-i Different results for the same cube with different "epsilon" parameter of "vprops", or different results of the cubes having different scale are explained by numerical computation errors. |
|
|
Dear Roman, do you have some idea how to select the main principal axis of a body, if any axis gives the same moment of inertia? |
|
|
Dear Mikhail, I am not a physics so cannot comment with full confidence. My assumption is that inertia axes should be aligned with eigenvectors of the inertia matrix. Thus, given that inertia matrix is diagonal for the box with equal sides my expectation was that the inertia axes should be aligned with XYZ vectors. Hope this helps. Roman |
|
|
The matter is that the matrix is identity, thus every vector is an eigenvector of the identity matrix. |
|
|
If you rotate the box, you will probably expect that principal axes follow the rotation of the box. But this is not true. The inertia matrix will be the same, and also the property will remain that every vector will be eigenvector of this matrix. |
|
|
In the last post, I meant the "cube". If you rotate a box with different sides, the inertia matrix will be different for every rotation angle. |
|
|
Dear Mikhail, Not sure if I have any further constructive input. My original objective was to compute the minimum bounding box (not necessarily axis-aligned). The algorithm based on using inertia axes works just fine unless we encountered this equal sided box case. Please feel free to treat this issue report as you deem appropriate. Take care, Roman |
|
|
The principal axes can be used to identify coordinate system for an optimal bounding box only in case if the body has no point of symmetry. This case can be recognized by the fact that the matrix of inertia has identity form (with some scaling). Or, all the 3 moments of inertia have the same value. In such case, it is needed to invent some alternative approach to compute bounding box. |
|
|
Dear bugmaster, please close this bug. |
