0028167: Modeling Algorithms - Fillet has strange form at its end

ID	Project	Category	View Status	Date Submitted	Last Update
0028167	Community	OCCT:Modeling Algorithms	public	2016-11-28 14:14	2023-08-01 15:08

Reporter	Markus	Assigned To	~~msv~~
Priority	normal	Severity	minor
Status	new	Resolution	open
Product Version	7.0.0
Target Version	Unscheduled

Summary	0028167: Modeling Algorithms - Fillet has strange form at its end
Description	For the appended case, the fillet is created in a strange way at its end. It looks as if the radius decreased drastically. The behaviour is the same in OCCT 7.1.
Steps To Reproduce	pload ALL restore solid.brep s whatis s tolerance s checkshape s vinit explode s E vdisplay s_3 fillet r s 1 s_3 vdisplay r vsetdispmode r 1
Tags	No tags attached.

Test case number	bugs modalg_7 bug28167

Date Modified	Username	Field	Change
2016-11-28 14:14	Timo	New Issue
2016-11-28 14:14	Timo	Assigned To	=> msv
2016-11-28 14:14	Timo	File Added: solid.brep

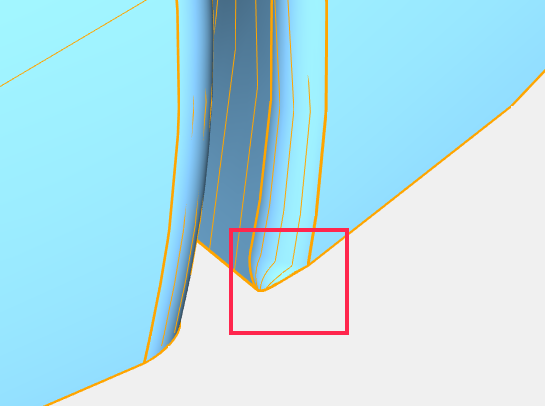

2016-11-28 14:14	Timo	File Added: strange fillet at its end.png
