0028216: Intersection of a face and a solid is broken up leading to empty result of Boolean common operation

ID	Project	Category	View Status	Date Submitted	Last Update
0028216	Community	OCCT:Modeling Algorithms	public	2016-12-13 16:49	2020-09-15 15:59

Reporter	Markus	Assigned To	bugmaster
Priority	normal	Severity	minor
Status	closed	Resolution	fixed
Product Version	7.0.0
Target Version	7.4.0	Fixed in Version	7.4.0

Summary	0028216: Intersection of a face and a solid is broken up leading to empty result of Boolean common operation
Description	In the appended case the intersection of a face and a solid leads to 3 not connected edges. It would be expected that they touch each other. When doing a boolean common operation the result is an empty compound. All checks say that the shapes are valid.
Steps To Reproduce	pload ALL restore initSurf.brep s restore solid.brep o tolerance s tolerance o checkshape s checkshape o bopcheck s bopcheck o bopargcheck s o -O #F bop s o bopsection r explode r vinit vdisplay r vfit bopcommon r whatis r explode r # => r is empty
Tags	No tags attached.

Test case number	bugs modalg_7 bug28216

Timo 2016-12-13 16:49 developer	initSurf.brep (100,404 bytes)

Timo 2016-12-13 16:49 developer	solid.brep (2,469 bytes)

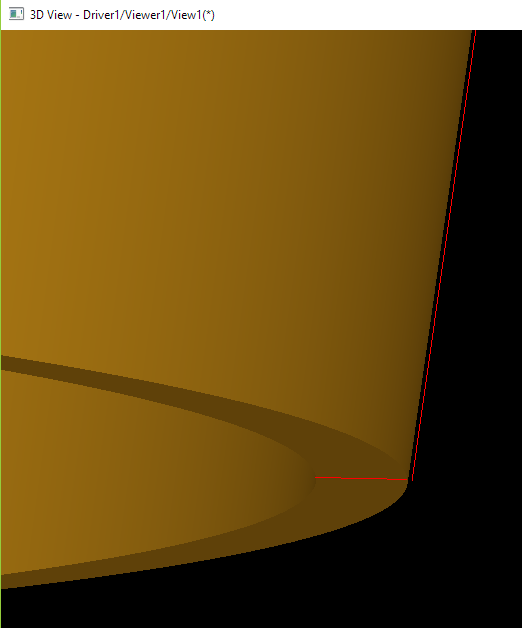

Timo 2016-12-13 16:50 developer	broken intersection.png (33,532 bytes)

~~mkv~~ 2017-08-25 18:03 tester ~0069929	Problem described in issue is reproduced on current state of OCCT.

~~emv~~ 2020-09-15 00:58 developer ~0094793	Seems to be fixed by #29511. Please close.

~~msv~~ 2020-09-15 09:26 developer ~0094800	It was fixed in 7.4.0.
