Summary0028274: BOPAlgo_MakerVolume fails to create solid
DescriptionBOPAlgo_MakerVolume fails to create solid from the attached faces.
Steps To Reproducerestore tmp.brep a
bnondestructive 1
eval mkvolume r [explode a f]
nbshapes r
TagsNo tags attached.
Test case numberbugs modalg_7 bug28274

Attached Files

Activities

Istvan Csanady

2016-12-23 17:53

developer

tmp.brep (22,450 bytes)

Istvan Csanady

2016-12-23 18:06

developer   ~0062078

If SetNonDestructive is set to false it does not fail.

msv

2016-12-23 18:10

developer


msv

2016-12-23 18:11

developer   ~0062079

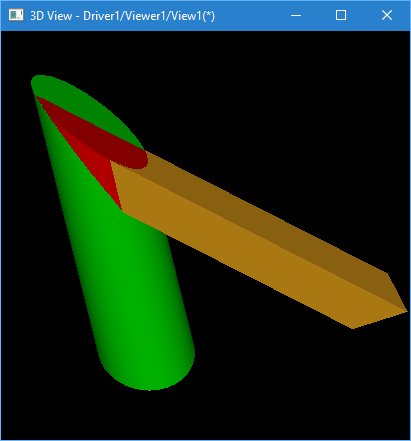

I have obtained 3 solids (see the picture) without setting any flags.
What is wrong in your case?

Istvan Csanady

2016-12-23 18:12

developer   ~0062080

If I set the SetNonDestructive flag to true, it returns an empty compound.

Istvan Csanady

2016-12-23 18:14

developer   ~0062081

BOPAlgo_MakerVolume volumeMaker;
        volumeMaker.SetArguments(facesList);
        volumeMaker.SetRunParallel(true);
        volumeMaker.SetNonDestructive(true);
        volumeMaker.SetAvoidInternalShapes(false);

msv

2016-12-23 18:21

developer   ~0062082

With setting these options, I obtain the same 3 solids. However checkshape complains about IntersectingWires.
Draw[111]> checksh r
On Shape faulty_1 :
BRepCheck_InvalidPolygonOnTriangulation
On Shape faulty_2 :
BRepCheck_InvalidPolygonOnTriangulation
On Shape faulty_3 :
BRepCheck_IntersectingWires

Faulty shapes in variables faulty_1 to faulty_3


With non-destructive=false, only 2 first faulties occur.

Istvan Csanady

2016-12-23 18:22

developer   ~0062083

Interesting, I tried it with and without fuzzy, and got the same results.

msv

2016-12-23 18:24

developer   ~0062084

I test on Windows compiled with VC12 in release mode.

Istvan Csanady

2016-12-23 18:25

developer   ~0062085

If I copy the shape before performing the operation, it will work fine.

Istvan Csanady

2016-12-28 19:15

developer

splines.brep (26,329 bytes)

Istvan Csanady

2016-12-28 19:16

developer   ~0062272

I have the same issue with the new attached file, but in this case the result does not depend on non-destructive mode or on fuzzy, it always fails (debug and release mode).

msv

2016-12-29 18:07

developer   ~0062331

The case with splines.brep needs additional investigation.

Istvan Csanady

2016-12-29 19:12

developer   ~0062334

Would more test data be useful? I find that in similar cases VolumeMaker is not very robust, and I can easily create similar cases where it fails.

Istvan Csanady

2016-12-29 20:43

developer

exception (17,589 bytes)

Istvan Csanady

2016-12-29 20:43

developer   ~0062336

Exception.brep fails because one of the face-face intersections throws an exception.

Istvan Csanady

2016-12-30 01:25

developer

broken_solids.brep (14,651 bytes)

Istvan Csanady

2016-12-30 01:26

developer   ~0062347

Applying MakeVolume on broken_solids.brep leads to invalid shapes.

Istvan Csanady

2016-12-30 01:38

developer   ~0062348

I have successfully reproduced the issue with similar geometries that I converted to NURBS geometry. This means that the problem can be related to periodic and/or closed surfaces.

Istvan Csanady

2017-01-01 17:43

developer

only_one_solid.brep (9,178 bytes)

Istvan Csanady

2017-01-01 17:43

developer   ~0062383

Another similar issue: only_one_solid.brep generates a only one solid, instead of two.

mkv

2017-08-28 15:14

tester   ~0069985

Problem described in issue is reproduced on current state of OCCT.
