| Summary | 0028596: Erroneous fillet | ||||
| Description | For the appended case the fillet creation results in an erroneous fillet form. BRepFilletAPI_MakeFillet.IsDone() returns true, but the fillet looks strange. The fillet is correct if the fillet radius is below 0.045. | ||||
| Steps To Reproduce | restore fil.brep f pload ALL vinit vdisplay f vfit explode f e vdisplay f_4 fillet r f 0.05 f_4 vdisplay r # => erroneous fillet vclear vdisplay f fillet r f 0.04 f_4 vdisplay r # => correct fillet | ||||
| Tags | No tags attached. | ||||
| Test case number | bugs modalg_7 bug28596_1, bug28596_2 | ||||
|
|
|
|
|
|

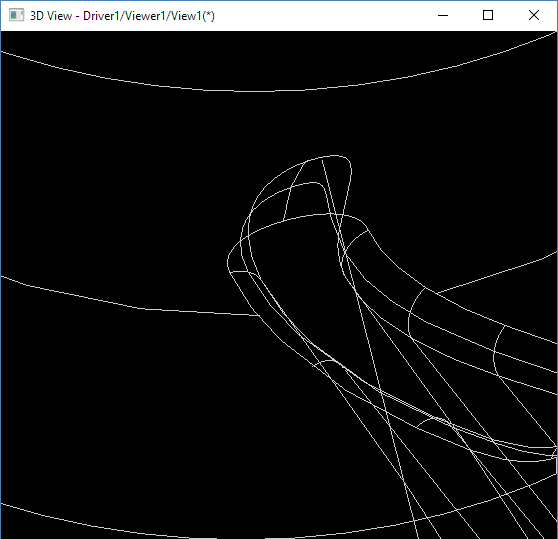

erroneous fillet Draw wire.png (9,927 bytes) |
|
|

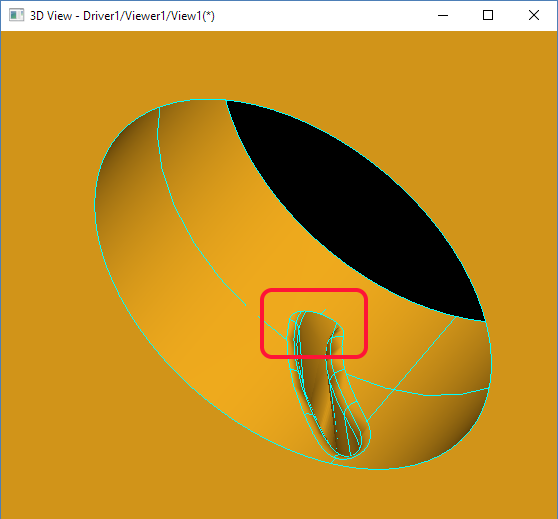

erroneous fillet Draw.png (39,055 bytes) |
|
|

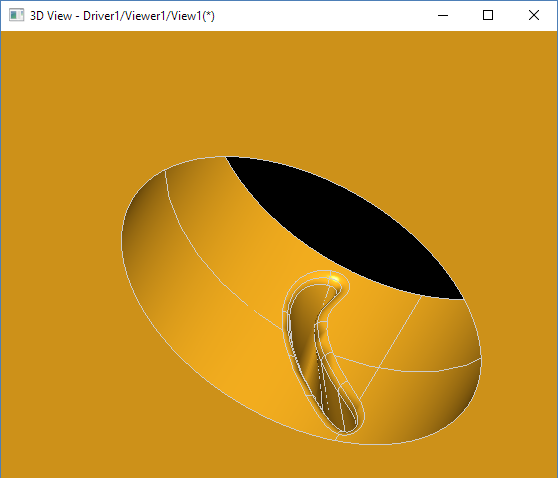

correct fillet draw.png (31,238 bytes) |
|
|
