View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0029508 | Open CASCADE | OCCT:Visualization | public | 2018-02-14 15:01 | 2018-06-29 21:21 |
| Reporter | kgv | Assigned To | apn | ||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | fixed | ||
| OS | Android | ||||
| Product Version | 7.2.0 | ||||
| Target Version | 7.3.0 | Fixed in Version | 7.3.0 | ||
| Summary | 0029508: Visualization, TKOpenGl - visual artifacts on Adreno 305/308 | ||||
| Description | The visual artifacts occur on the screen of Samsung smartphones having Adreno 305 and Adreno 308 [ASUS ZenFone 4 Max / ZC554KL] (both are limited by OpenGL ES 3.0). There were no such issues on OCCT 7.1.0. Note that artifacts are obvious only within Phong shading model; within per-vertex lighting image looks fine. The problem occurs when Phong program is compiled being marked as "#version 300 es" on these devices. | ||||
| Steps To Reproduce | N/A | ||||
| Tags | No tags attached. | ||||
| Test case number | Not needed | ||||
|
|
|
|
|
|
|
Branch CR29508 has been created by kgv. SHA-1: ab5461efee4ef431abe03f799f84bfaa6ab6165c Detailed log of new commits: Author: kgv Date: Wed Feb 14 20:18:39 2018 +0300 0029508: Visualization, TKOpenGl - visual artifacts on Adreno 305/308 OpenGl_ShaderManager now: - prefers GLSL ES 100 over GLSL ES 300 on devices reporting OpenGL ES 3.0; - prefers GLSL ES 300 on devices reporting OpenGL ES 3.1+. to workaround known buggy implementations of OpenGL ES 3.0 drivers. Author: kgv Date: Wed Feb 14 16:10:48 2018 +0300 0029507: Visualization, TKOpenGl - uninitialized class field OpenGl_FrameBuffer::myIsOwnDepth Author: kgv Date: Wed Feb 14 00:07:48 2018 +0300 0029503: Visualization, TKOpenGl - fix access violation due to misprint in OpenGl_AspectMarker Misprint mySprite->mySpriteA has been corrected. |
|
|
|
|
|
|
Please take the patch. Tested within branch for 0029509: http://jenkins-test-10.nnov.opencascade.com/view/CR29509-master-KGV |
|
|
Branch CR29508 has been deleted by kgv. SHA-1: ab5461efee4ef431abe03f799f84bfaa6ab6165c |
|
occt: master c5a65111 2018-02-14 17:18:39 Committer: apn Details Diff |
0029508: Visualization, TKOpenGl - visual artifacts on Adreno 305/308 OpenGl_ShaderManager now: - prefers GLSL ES 100 over GLSL ES 300 on devices reporting OpenGL ES 3.0; - prefers GLSL ES 300 on devices reporting OpenGL ES 3.1+. to workaround known buggy implementations of OpenGL ES 3.0 drivers. |
Affected Issues 0029508 |
|
| mod - src/OpenGl/OpenGl_ShaderManager.cxx | Diff File | ||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2018-02-14 15:01 | kgv | New Issue | |
| 2018-02-14 15:01 | kgv | Assigned To | => kgv |

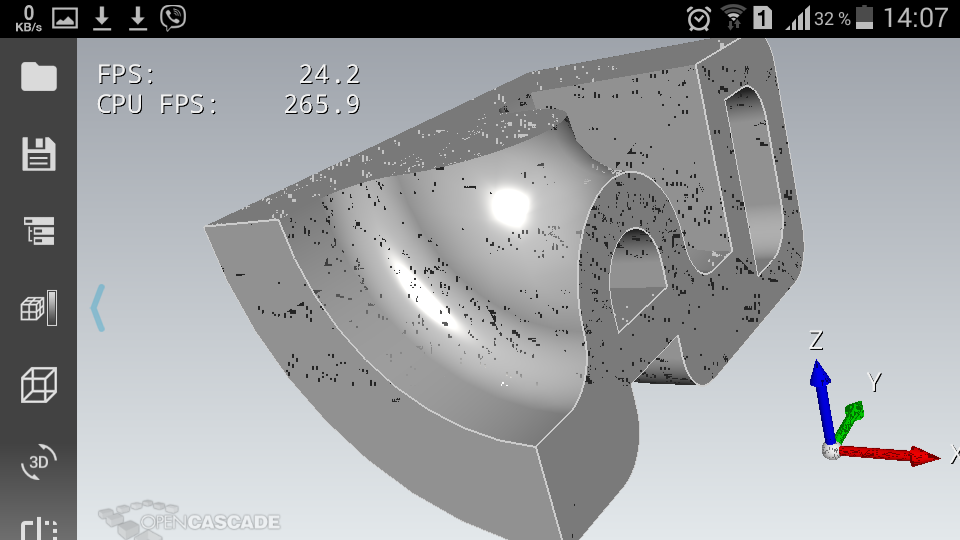

| 2018-02-14 15:01 | kgv | File Added: Screenshot_2018-02-14-14-07-47.png | |

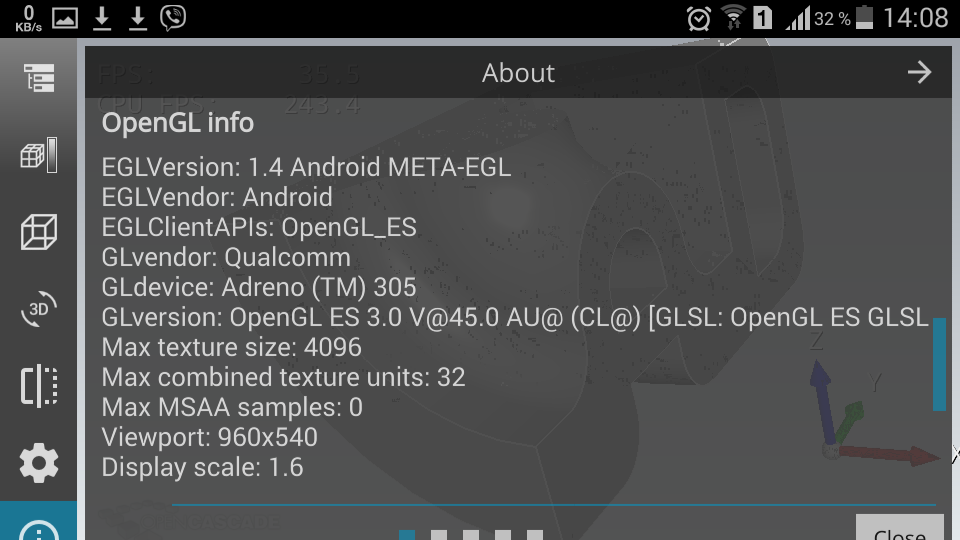

| 2018-02-14 15:01 | kgv | File Added: Screenshot_2018-02-14-14-08-19.png | |
| 2018-02-14 15:03 | kgv | Relationship added | related to 0027925 |
| 2018-02-14 15:03 | kgv | Relationship added | related to 0029337 |
| 2018-02-14 15:04 | kgv | Description Updated | |
| 2018-02-14 20:22 | git | Note Added: 0073993 | |
| 2018-02-14 20:26 | kgv | Summary | Visualization, TKOpenGl - visual artifacts on Adreno 305 => Visualization, TKOpenGl - visual artifacts on Adreno 305/308 |
| 2018-02-14 20:26 | kgv | Description Updated | |
| 2018-02-14 20:26 | kgv | Steps to Reproduce Updated | |

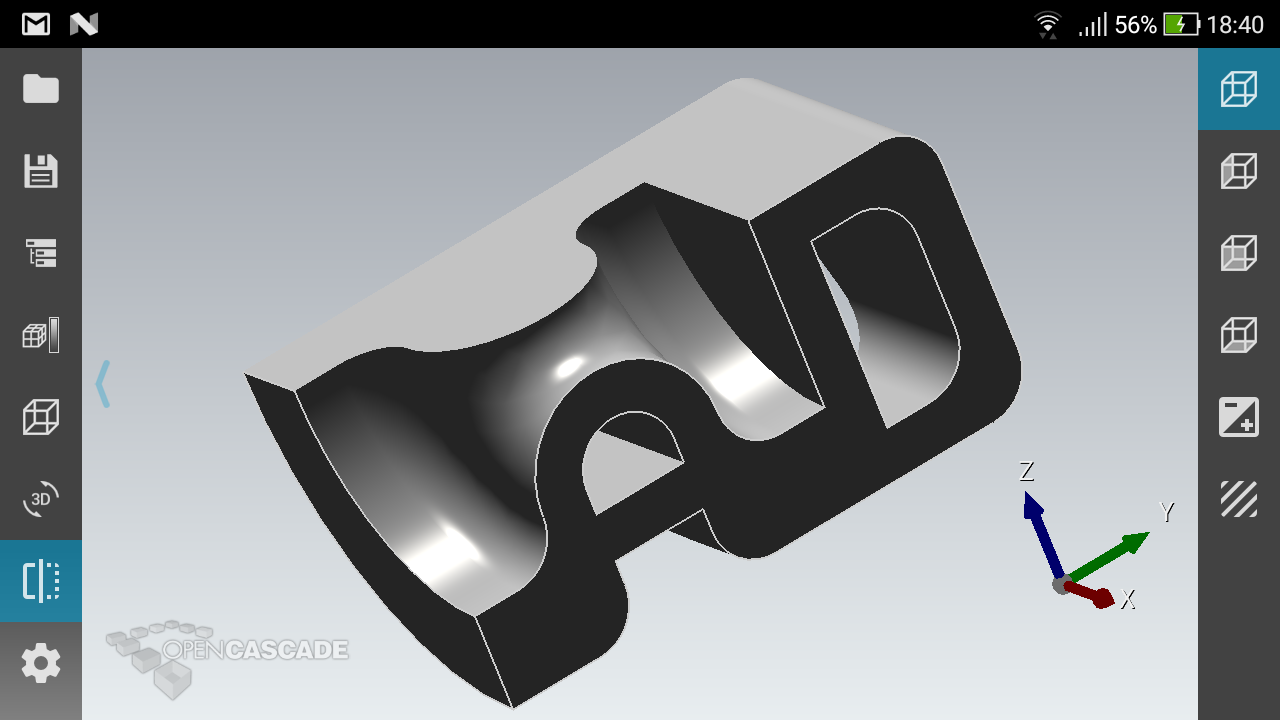

| 2018-02-14 22:00 | kgv | File Added: Screenshot_20180214-184011.png | |

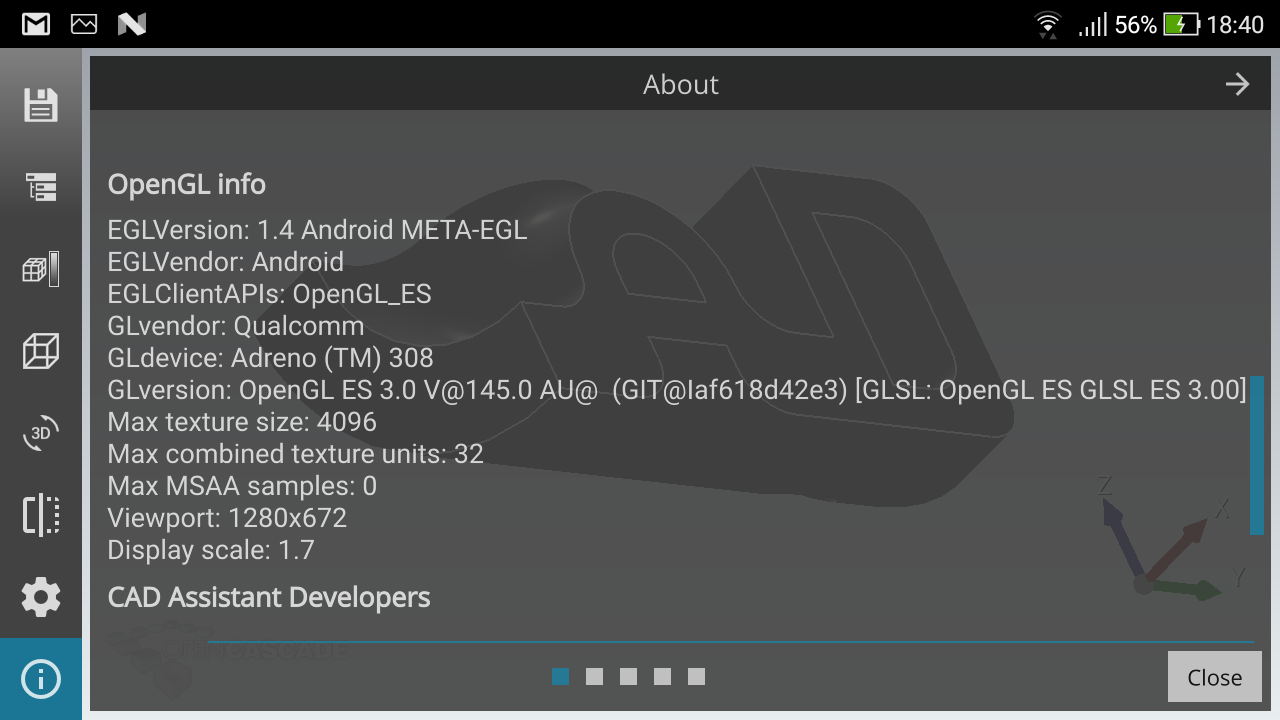

| 2018-02-14 22:00 | kgv | File Added: Screenshot_20180214-184030.png | |
| 2018-02-14 22:02 | kgv | Description Updated | |
| 2018-02-15 09:39 | kgv | Note Added: 0073996 | |
| 2018-02-15 09:39 | kgv | Assigned To | kgv => bugmaster |
| 2018-02-15 09:39 | kgv | Status | new => resolved |
| 2018-02-15 09:39 | kgv | Target Version | 7.4.0 => 7.3.0 |
| 2018-02-15 09:39 | kgv | Status | resolved => reviewed |
| 2018-02-15 09:40 | kgv | Note Edited: 0073996 | |
| 2018-02-15 13:09 | apn | Test case number | => Not needed |
| 2018-02-15 13:09 | apn | Status | reviewed => tested |
| 2018-02-18 13:00 | apn | Changeset attached | => occt master c5a65111 |
| 2018-02-18 13:00 | apn | Assigned To | bugmaster => apn |
| 2018-02-18 13:00 | apn | Status | tested => verified |
| 2018-02-18 13:00 | apn | Resolution | open => fixed |
| 2018-03-06 15:50 | git | Note Added: 0074291 | |
| 2018-06-29 21:16 |
|
Fixed in Version | => 7.3.0 |
| 2018-06-29 21:21 |
|
Status | verified => closed |
